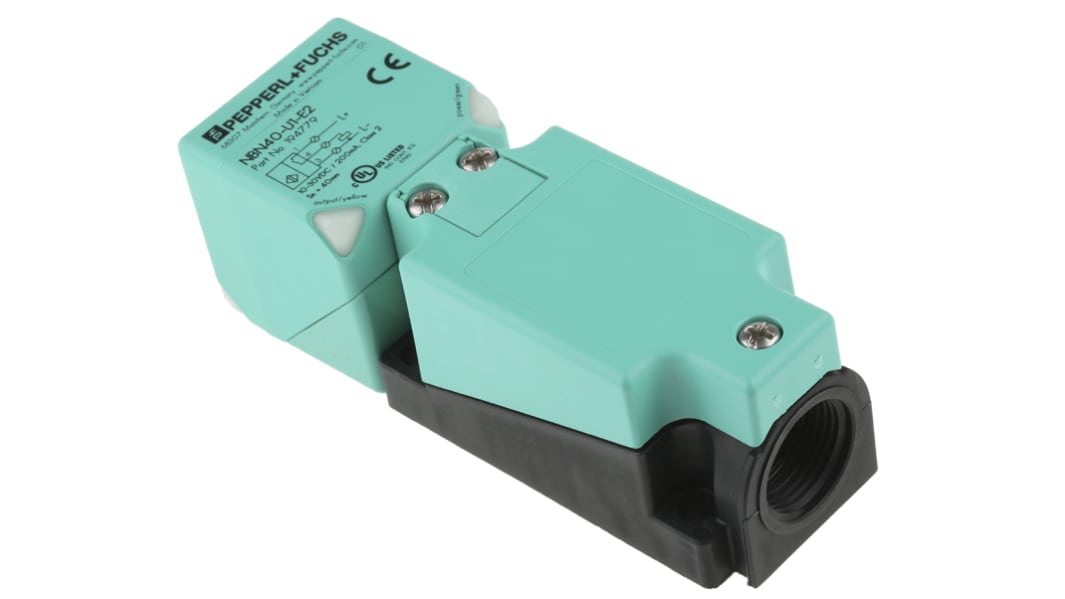

Pepperl + Fuchs Inductive Block Proximity Sensor, 40 mm Detection, PNP NO, 10 → 30 V dc
- RS Stock No.:
- 667-7224
- Distrelec Article No.:
- 137-58-005
- Mfr. Part No.:
- NBN40-U1-E2
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£89.70
(exc. VAT)
£107.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 15 unit(s) shipping from 01 December 2025
- Plus 20 unit(s) shipping from 01 December 2025
- Plus 22 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.70 |
*price indicative
- RS Stock No.:
- 667-7224
- Distrelec Article No.:
- 137-58-005
- Mfr. Part No.:
- NBN40-U1-E2
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Sensor Technology | Inductive | |
| Body Style | Block | |
| Detection Range | 40 mm | |
| Digital Switching Output Type | PNP | |
| Output Function | NO | |
| Connection Type | Screw Terminal | |
| Supply Voltage | 10 → 30 V dc | |
| Length | 118mm | |
| IP Rating | IP69K | |
| Mounting Type | Non-Flush | |
| Housing Material | Polyamide | |
| Width | 40mm | |
| Maximum DC Voltage | 30V | |
| Minimum Operating Temperature | -25°C | |
| Switching Frequency | 150 Hz | |
| Short Circuit Overload Protection | Yes | |
| Maximum Switching Frequency | 150Hz | |
| Shielding | Unshielded | |
| Switching Current | 200 mA | |
| Reverse Polarity Protection | Yes | |
| Maximum Operating Temperature | +85°C | |
| Depth | 40mm | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Sensor Technology Inductive | ||
Body Style Block | ||
Detection Range 40 mm | ||
Digital Switching Output Type PNP | ||
Output Function NO | ||
Connection Type Screw Terminal | ||
Supply Voltage 10 → 30 V dc | ||
Length 118mm | ||
IP Rating IP69K | ||
Mounting Type Non-Flush | ||
Housing Material Polyamide | ||
Width 40mm | ||
Maximum DC Voltage 30V | ||
Minimum Operating Temperature -25°C | ||
Switching Frequency 150 Hz | ||
Short Circuit Overload Protection Yes | ||
Maximum Switching Frequency 150Hz | ||
Shielding Unshielded | ||
Switching Current 200 mA | ||
Reverse Polarity Protection Yes | ||
Maximum Operating Temperature +85°C | ||
Depth 40mm | ||
- COO (Country of Origin):
- VN
Varikont DC Switch
New Varikont series of inductive proximity sensors with enhanced performance and environmental protection, yet in a dimensionally identical package.
Features and benefits
4 LEDs indicator for 360° all-round visibility
Tough PA & metal housing
M20 glandable cable entry
IP69K sealing
Block and Limit Switch Style
All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.
