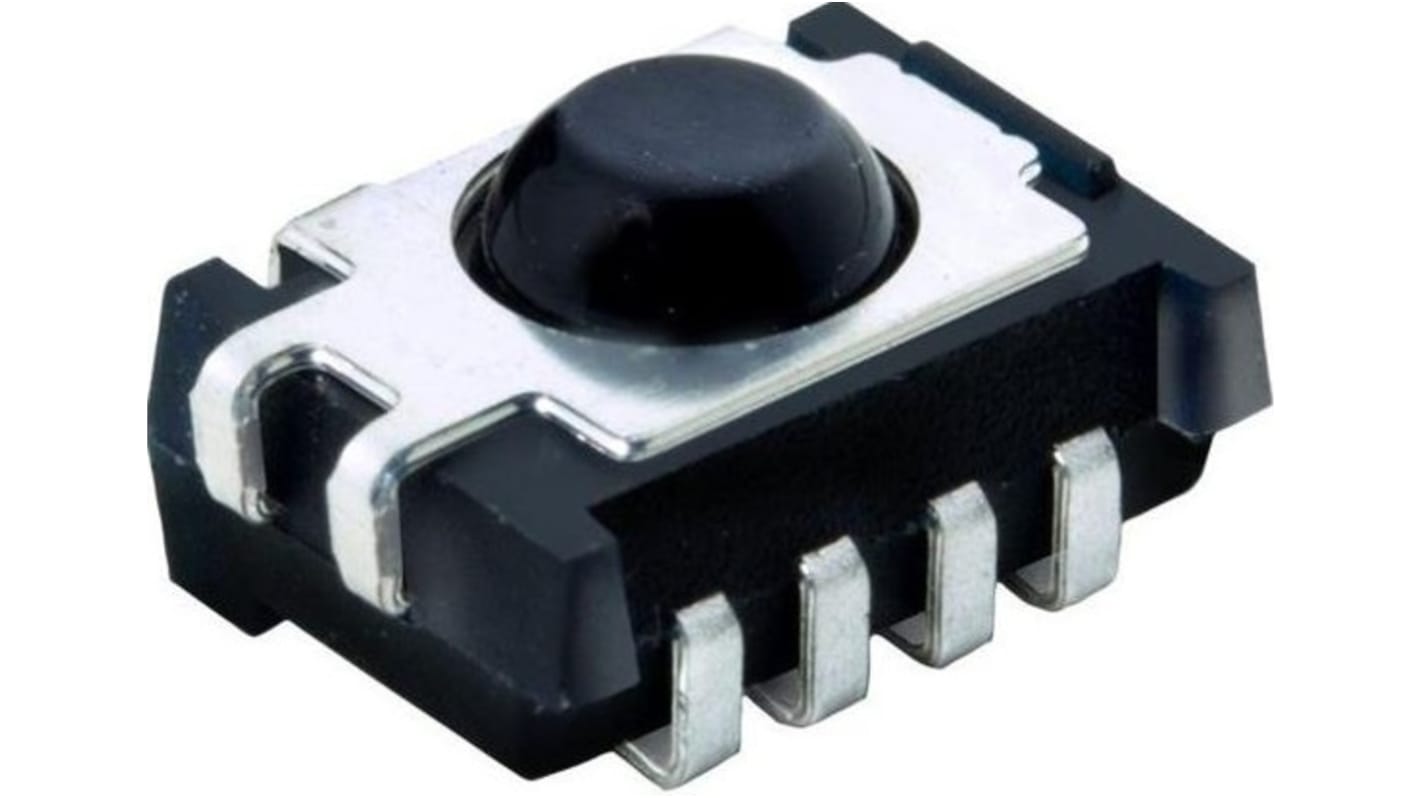

Vishay TSMP6000 IR Sensor Module 1.8 m 2.5 V 5.5V 4 Panhead
- RS Stock No.:
- 244-4795
- Mfr. Part No.:
- TSMP6000TR
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 244-4795
- Mfr. Part No.:
- TSMP6000TR
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IR Sensor Module | |
| Maximum Output Current | 5mA | |
| Maximum Output Voltage | 6.3V | |
| Sensing Distance | 1.8m | |
| Output Type | Active Low | |
| Mount Type | Surface | |
| Package Type | Panhead | |
| Pin Count | 4 | |
| Height | 5.3mm | |
| Length | 7.5mm | |
| Width | 4mm | |
| Maximum Operating Temperature | 85°C | |
| Automotive Standard | No | |
| Series | TSMP6000 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.5V | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IR Sensor Module | ||
Maximum Output Current 5mA | ||
Maximum Output Voltage 6.3V | ||
Sensing Distance 1.8m | ||
Output Type Active Low | ||
Mount Type Surface | ||
Package Type Panhead | ||
Pin Count 4 | ||
Height 5.3mm | ||
Length 7.5mm | ||
Width 4mm | ||
Maximum Operating Temperature 85°C | ||
Automotive Standard No | ||
Series TSMP6000 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.5V | ||
Minimum Operating Temperature -25°C | ||
The Vishay IR sensor sensor for receiving various kinds of modulated IR signals. A PIN diode and preamplifier are assembled on a lead frame, the epoxy package is designed as an IR filter. The modulated output signal, carrier out, can be used for code learning applications.
Photo detector and preamplifier in one package
Improved shielding against electrical field disturbance
TTL and CMOS compatibility
Output active low
