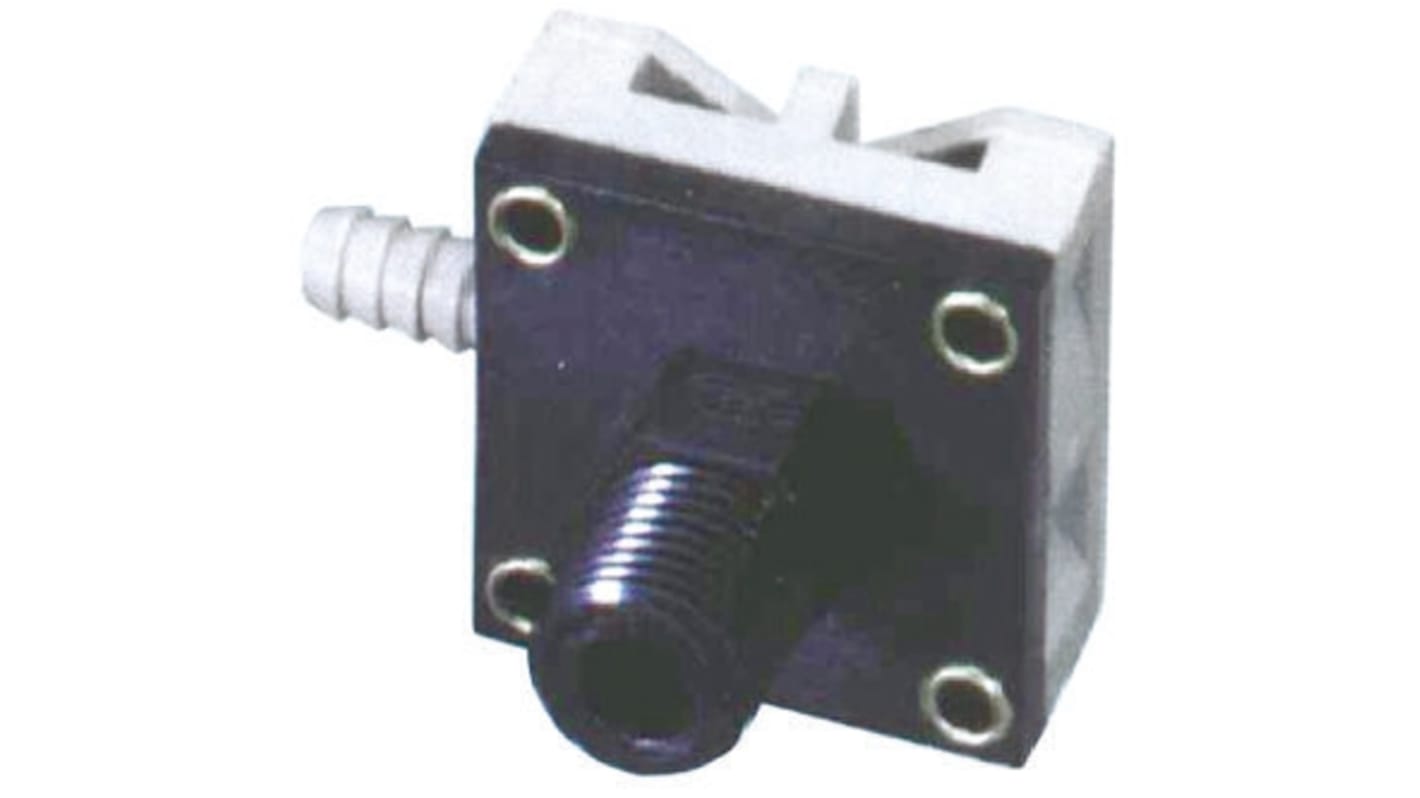

Herga Pressure Sensor, 0.025bar Min, 0.125bar Max, Relay Output, Differential Reading
- RS Stock No.:
- 397-2302
- Mfr. Part No.:
- 6101-0009
- Brand:
- Herga
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 397-2302
- Mfr. Part No.:
- 6101-0009
- Brand:
- Herga
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Herga | |
Pressure Reading Type | Differential | |
Minimum Pressure Reading | 0.025bar | |
Maximum Pressure Reading | 0.125bar | |
Output Type | Relay | |
Media Measured | Fluid | |
Maximum Current | 20 mA | |
Supply Voltage | 250 V ac | |
Housing Material | Fibreglass | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand Herga | ||
Pressure Reading Type Differential | ||
Minimum Pressure Reading 0.025bar | ||
Maximum Pressure Reading 0.125bar | ||
Output Type Relay | ||
Media Measured Fluid | ||
Maximum Current 20 mA | ||
Supply Voltage 250 V ac | ||
Housing Material Fibreglass | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- US
Sensitive - Series 1, Pressure Switch
Ratings: from 25mbar to 75mbar
Sensitive switches for pressure, vacuum and differential pressure measurement
GF polyester housing, polyurethane diaphragm, PB with gold inlay contacts
All are externally adjustable, also mountable in any orientation for a wide variety of applications
Termination type: Faston
Sensitive switches for pressure, vacuum and differential pressure measurement
GF polyester housing, polyurethane diaphragm, PB with gold inlay contacts
All are externally adjustable, also mountable in any orientation for a wide variety of applications
Termination type: Faston
Series 1: Adjustable switches with twin, 5.0mm radial spouts or 4.0mm perpendicularly opposed spouts for measuring pressure, vacuum and differential pressure. Switches with 1/8 NPT brass connection are available for pressure measurement only - for NPT adaptors see 536-2577
Approvals
UL and CSA certified
