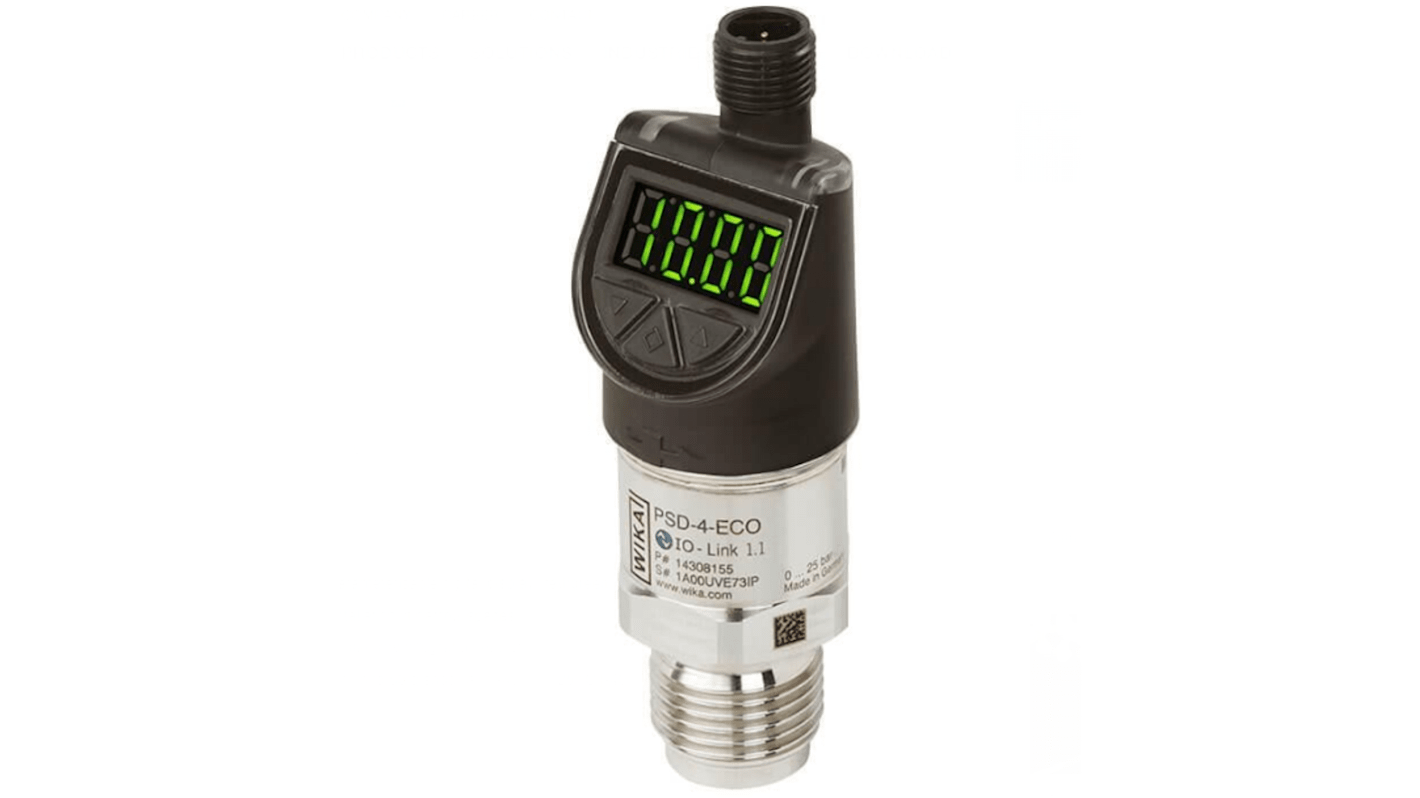

WIKA PSD-4-ECO Series Pressure Sensor, PNP Output 0 bar 10 bar, Gauge Reading
- RS Stock No.:
- 268-9340
- Mfr. Part No.:
- 48784483
- Brand:
- WIKA
Subtotal (1 unit)*
£186.89
(exc. VAT)
£224.27
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £186.89 |
*price indicative
- RS Stock No.:
- 268-9340
- Mfr. Part No.:
- 48784483
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Pressure Reading Type | Gauge | |
| Product Type | Pressure Sensor | |
| Maximum Pressure Measurement | 10bar | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±1 % | |
| Output Type | PNP | |
| Interface Type | IO-Link | |
| Minimum Supply Voltage | 15V | |
| Series | PSD-4-ECO | |
| Maximum Supply Voltage | 32V | |
| Standards/Approvals | cULus | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Pressure Reading Type Gauge | ||
Product Type Pressure Sensor | ||
Maximum Pressure Measurement 10bar | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±1 % | ||
Output Type PNP | ||
Interface Type IO-Link | ||
Minimum Supply Voltage 15V | ||
Series PSD-4-ECO | ||
Maximum Supply Voltage 32V | ||
Standards/Approvals cULus | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DE
The WIKA PSD-4-ECO is a programmable electronic pressure switch designed specifically for OEM customers. With IO-Link 1.1, the cost-effective and reliable model PSD-4-ECO is a future-proof automation solution. Through individual factory pre-configuration, the pressure switch can also be quickly and simply integrated into the machine without any programming effort.
Compact size enables easy installation in narrow spaces
Optimised design makes OEM machine integration easier
