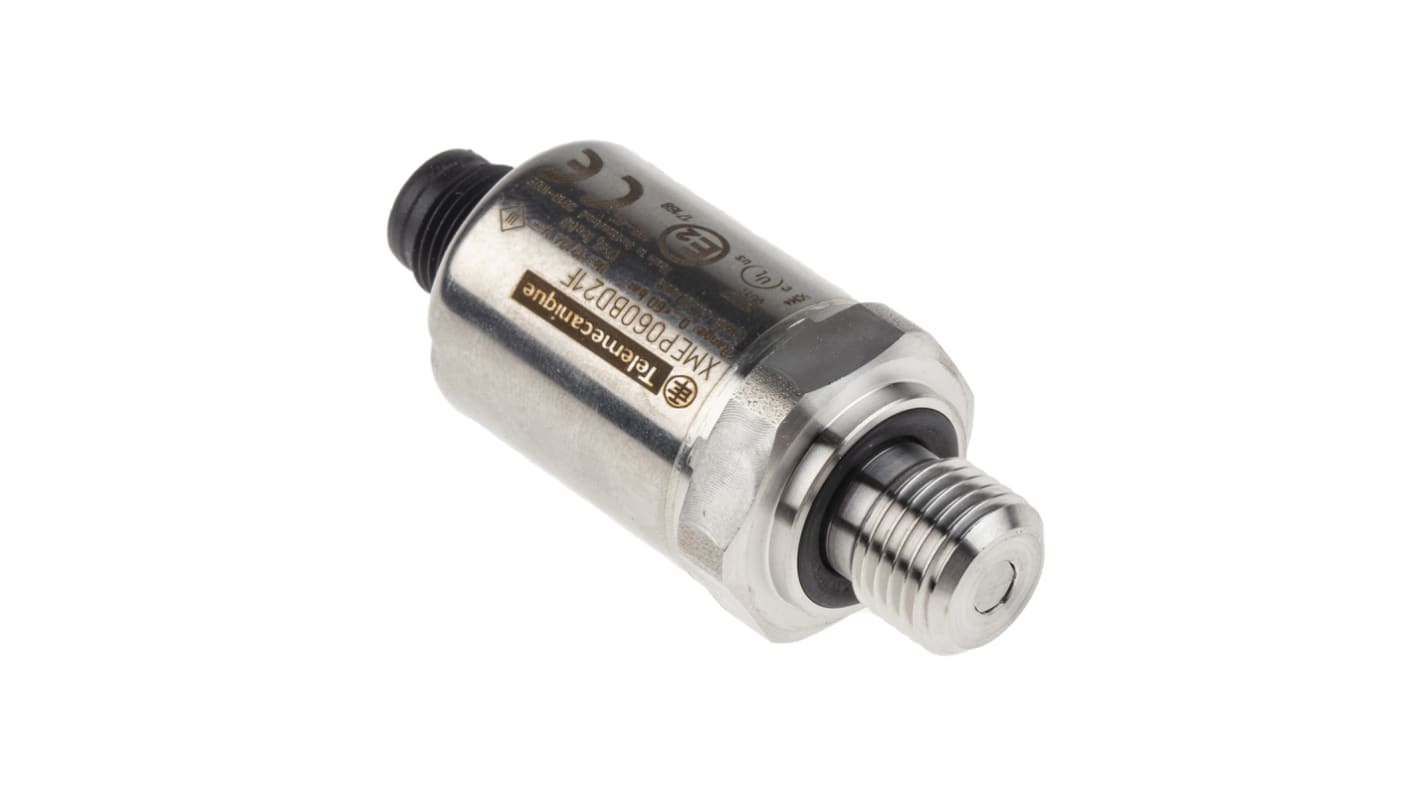

Telemecanique Sensors OsiSense XM Series Pressure Sensor, Analogue Output 0 bar 60 bar
- RS Stock No.:
- 177-8859
- Mfr. Part No.:
- XMEP060BD21F
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£201.50
(exc. VAT)
£241.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £201.50 |
*price indicative
- RS Stock No.:
- 177-8859
- Mfr. Part No.:
- XMEP060BD21F
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Maximum Pressure Measurement | 60bar | |
| Product Type | Pressure Sensor | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.5 % | |
| Output Type | Analogue | |
| Terminal Type | 4-Pin M12 Male Connector | |
| Minimum Supply Voltage | 9V | |
| Response Time | 2ms | |
| Maximum Supply Voltage | 36V | |
| Series | OsiSense XM | |
| Standards/Approvals | EN/IEC 61326-2-3, ISO 14982, UL 61010-1, ECE 10R-5, EN 13309, ISO 13766 | |
| Housing Material | 316L Stainless Steel, Fluorocarbon, Fluoropolymer | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Mount Type | Screw | |
| IP Rating | IP65, IP67, IP69K | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Maximum Pressure Measurement 60bar | ||
Product Type Pressure Sensor | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.5 % | ||
Output Type Analogue | ||
Terminal Type 4-Pin M12 Male Connector | ||
Minimum Supply Voltage 9V | ||
Response Time 2ms | ||
Maximum Supply Voltage 36V | ||
Series OsiSense XM | ||
Standards/Approvals EN/IEC 61326-2-3, ISO 14982, UL 61010-1, ECE 10R-5, EN 13309, ISO 13766 | ||
Housing Material 316L Stainless Steel, Fluorocarbon, Fluoropolymer | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Mount Type Screw | ||
IP Rating IP65, IP67, IP69K | ||
Telemecanique Sensors Hydraulic Oil Pressure Sensor
The Telemecanique XMEP series pressure sensor has a housing made from 316L stainless steel with fluorocarbon FPM contact. It works on 12VDC to 24VDC power supply. The probe is a 4-pin male connector.
Features and Benefits
• Service temperature ranges between -40°C and 100°C
• Accuracy is ±0.5% of measuring range
• Pressure rating ranges from 0bar to 60bar
• Threaded mounting
• Protection over load short-circuit
Applications
• Temperature testing facilities
• Process control
• Automation
• Industrial measurement
Certifications
• CE certified
• cULus certified
• E2 certified
• ISO13766
• ISO1982
• IP65 rated
• IP67 rated
• EN13309
• UL 61010-1
