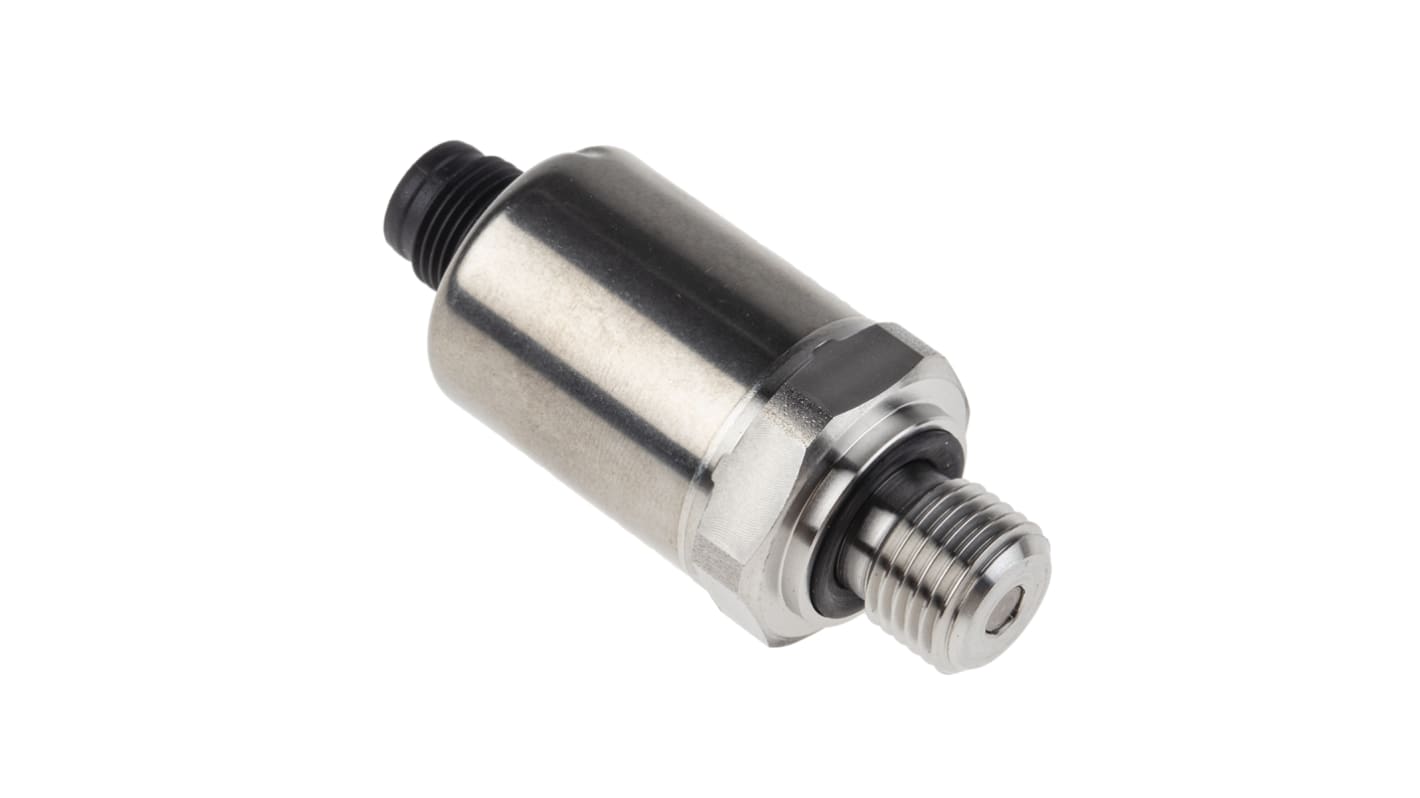

Telemecanique Sensors XMEP Series Pressure Sensor, 0bar Min, 60bar Max, Analogue Output
- RS Stock No.:
- 177-8856
- Mfr. Part No.:
- XMEP060BD11F
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£151.70
(exc. VAT)
£182.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £151.70 |
*price indicative
- RS Stock No.:
- 177-8856
- Mfr. Part No.:
- XMEP060BD11F
- Brand:
- Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 60bar | |
| Accuracy | ±0.5 % | |
| Output Type | Analogue | |
| Media Measured | Air, Fresh Water, Hydraulic Oil | |
| Process Connection | G1/4 | |
| Analogue Output | 0.5 → 4.5 V | |
| Electrical Connection | 4 Pin M12 Male Connector | |
| Response Time | <=2 ms | |
| Maximum Current | 7 mA | |
| Series | XMEP | |
| Supply Voltage | 5 V dc | |
| Housing Material | Fluorocarbon FPM, Stainless Steel AISI 316L | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -40°C | |
| IP Rating | IP65, IP67, IP69K | |
| Mounting Type | Thread Mount | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 60bar | ||
Accuracy ±0.5 % | ||
Output Type Analogue | ||
Media Measured Air, Fresh Water, Hydraulic Oil | ||
Process Connection G1/4 | ||
Analogue Output 0.5 → 4.5 V | ||
Electrical Connection 4 Pin M12 Male Connector | ||
Response Time <=2 ms | ||
Maximum Current 7 mA | ||
Series XMEP | ||
Supply Voltage 5 V dc | ||
Housing Material Fluorocarbon FPM, Stainless Steel AISI 316L | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -40°C | ||
IP Rating IP65, IP67, IP69K | ||
Mounting Type Thread Mount | ||
