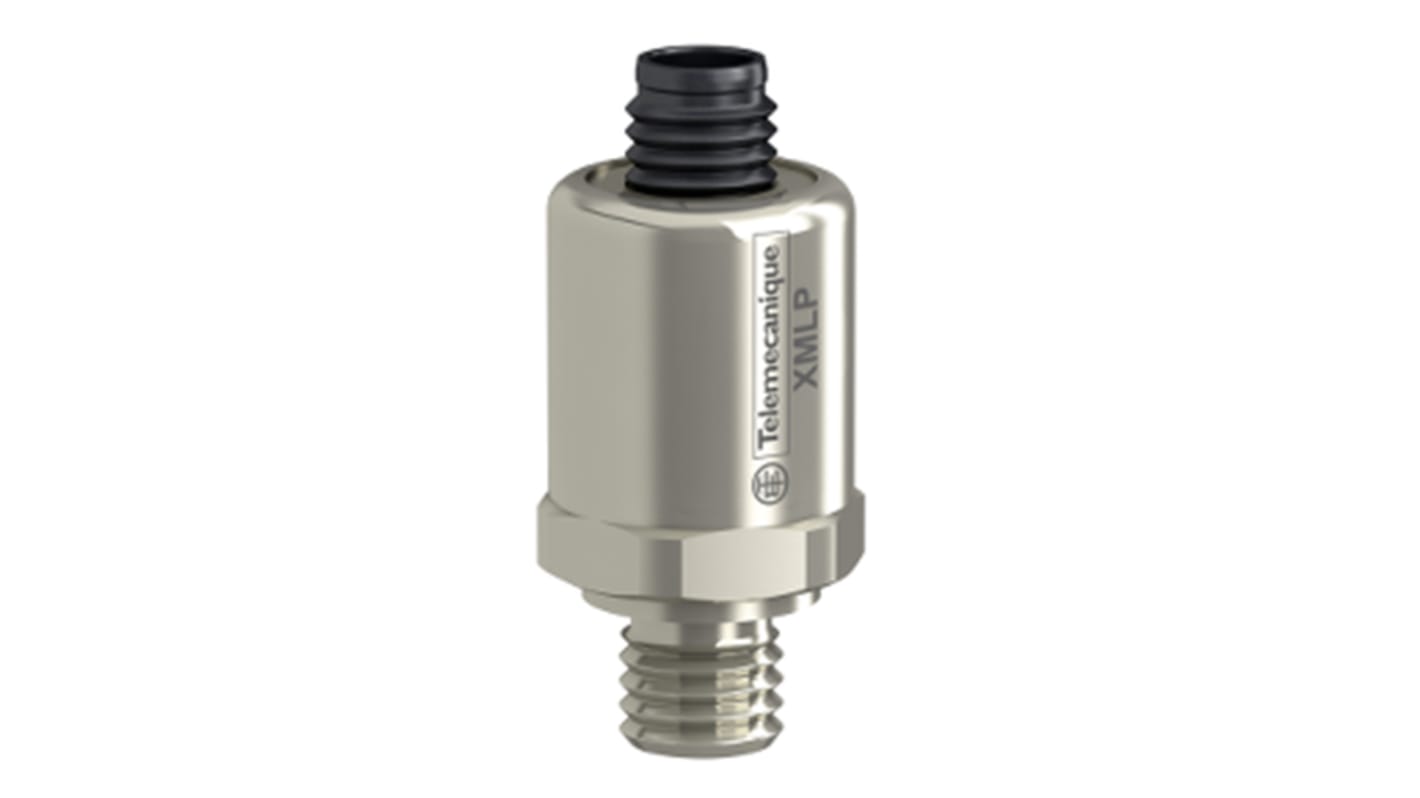

Telemecanique Sensors Pressure Switch, 0bar Min, 60bar Max, Analogue Output
- RS Stock No.:
- 176-7885
- Mfr. Part No.:
- XMLP060BD21F
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£178.67
(exc. VAT)
£214.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £178.67 |
*price indicative
- RS Stock No.:
- 176-7885
- Mfr. Part No.:
- XMLP060BD21F
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Telemecanique Sensors | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 60bar | |
Accuracy | 0.1 %, ±0.5 (Measurement) % | |
Output Type | Analogue | |
Media Measured | Air, Fresh Water, Gas, Hydraulic Oil, Refrigeration Fluid | |
Electrical Connection | 4 Pin M12 Male Connector | |
Analogue Output | 4 → 20 mA | |
Response Time | ≤2 ms | |
Maximum Current | 23 mA | |
Supply Voltage | 12 → 24 V dc | |
Housing Material | FPM, Stainless Steel 316L | |
Maximum Operating Temperature | +85°C | |
Mounting Type | Thread Mount | |
IP Rating | IP65, IP67, IP69K | |
Minimum Operating Temperature | -30°C | |
Select all | ||
---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 60bar | ||
Accuracy 0.1 %, ±0.5 (Measurement) % | ||
Output Type Analogue | ||
Media Measured Air, Fresh Water, Gas, Hydraulic Oil, Refrigeration Fluid | ||
Electrical Connection 4 Pin M12 Male Connector | ||
Analogue Output 4 → 20 mA | ||
Response Time ≤2 ms | ||
Maximum Current 23 mA | ||
Supply Voltage 12 → 24 V dc | ||
Housing Material FPM, Stainless Steel 316L | ||
Maximum Operating Temperature +85°C | ||
Mounting Type Thread Mount | ||
IP Rating IP65, IP67, IP69K | ||
Minimum Operating Temperature -30°C | ||
XMLP pressure transmitters rated at less than 9 bar or 100 psi:These transmitters integrate a ceramic pressure measuring cell. Ceramic technology has been used successfully for many years and offers a high level of sensitivity that is particularly suitable for measuring low pressures. Ceramic also provides good resistance to abrasive fluids. An internal fluorocarbon rubber gasket provides the seal between the ceramic measuring cell and the AISI 316L stainless steel casing. XMLP pressure transmitters rated greater than or equal to 9 bar or 100 psi:These transmitters integrate a metal pressure measuring cell. This measuring cell, which is welded directly onto the AISI 316L stainless steel transmitter body.
