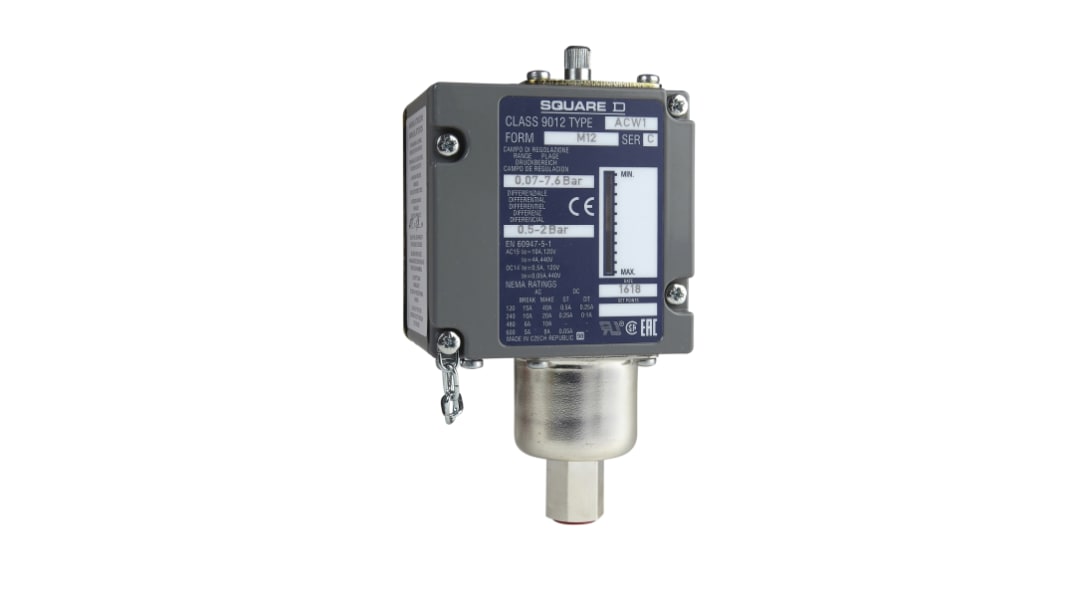

Telemecanique Sensors ACW Series Pressure Sensor, 0.07bar Min, 7.6bar Max, 1CO Output
- RS Stock No.:
- 136-9408
- Mfr. Part No.:
- ACW1M129012
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£382.89
(exc. VAT)
£459.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 39 unit(s) ready to ship
- Plus 5 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £382.89 |
*price indicative
- RS Stock No.:
- 136-9408
- Mfr. Part No.:
- ACW1M129012
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | 0.07bar | |
| Maximum Pressure Reading | 7.6bar | |
| Output Type | 1CO | |
| Media Measured | Air, Hydraulic Oil, Non-Corrosive Fluid | |
| Process Connection | G1/4 | |
| Electrical Connection | M20 x 1.5 mm Cable Gland | |
| Maximum Current | 5 A @ 24 V | |
| Series | ACW | |
| Supply Voltage | 500 V, 600 V | |
| Housing Material | Zinc Alloy | |
| Mounting Type | Cable Mount | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -56°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 0.07bar | ||
Maximum Pressure Reading 7.6bar | ||
Output Type 1CO | ||
Media Measured Air, Hydraulic Oil, Non-Corrosive Fluid | ||
Process Connection G1/4 | ||
Electrical Connection M20 x 1.5 mm Cable Gland | ||
Maximum Current 5 A @ 24 V | ||
Series ACW | ||
Supply Voltage 500 V, 600 V | ||
Housing Material Zinc Alloy | ||
Mounting Type Cable Mount | ||
IP Rating IP65 | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -56°C | ||
- COO (Country of Origin):
- FR
OsiSense ACW Electromechanical Pressure Switches
Schneider Electric ACW electromechanical pressure switches for controlling the pressure of industrial fluids and hydraulic oils with an adjustable differential.
Features and Benefits
Adjustable differential
Bellows actuator
Snap action contacts
Temperature range: –56 to +85 °C
IP65 rated
Single/Dual Threshold
