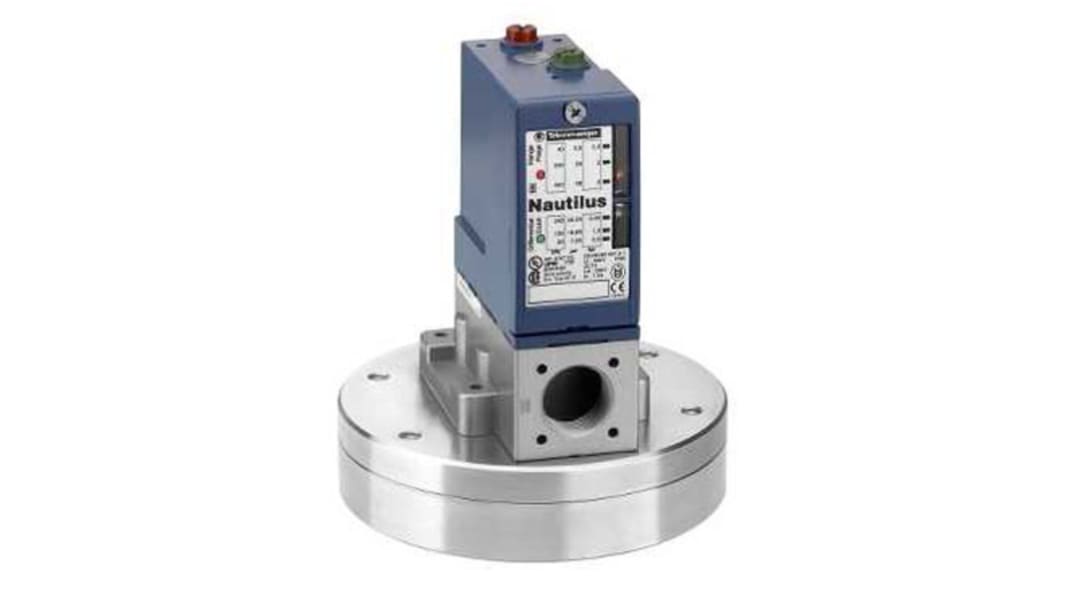

Telemecanique Sensors Pressure Switch, 0bar Min, 0.35bar Max, 1CO Output
- RS Stock No.:
- 135-3745
- Mfr. Part No.:
- XMLBS35R2S11
- Brand:
- Telemecanique Sensors
Available to back order for despatch when stock is available
Added
Price Each
£497.24
(exc. VAT)
£596.69
(inc. VAT)
| Units | Per unit |
| 1 + | £497.24 |
- RS Stock No.:
- 135-3745
- Mfr. Part No.:
- XMLBS35R2S11
- Brand:
- Telemecanique Sensors
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MA
Product Details
OsiSense XMLB Pressure Switches
Schneider Electric XMLB pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLB pressure and vacuum switches have an adjustable differential and are for detection of a single threshold.
Adjustable differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4"" NPT
Conduit connection: 1/2"" NPT
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4"" NPT
Conduit connection: 1/2"" NPT
Specifications
Attribute | Value |
|---|---|
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 0.35bar |
| Accuracy | 2 % |
| Output Type | 1CO |
| Media Measured | Air, Hydraulic Oil |
| Electrical Connection | PG 13.5 |
| Maximum Current | 100 mA @ 250 V dc, 3 A @ 120 V ac |
| Supply Voltage | 240 V ac, 250 V dc |
| Housing Material | Zinc Alloy |
| IP Rating | IP65, IP66 |
| Mounting Type | Panel Mount |
| Maximum Operating Temperature | +158°C |
| Minimum Operating Temperature | -13°C |
