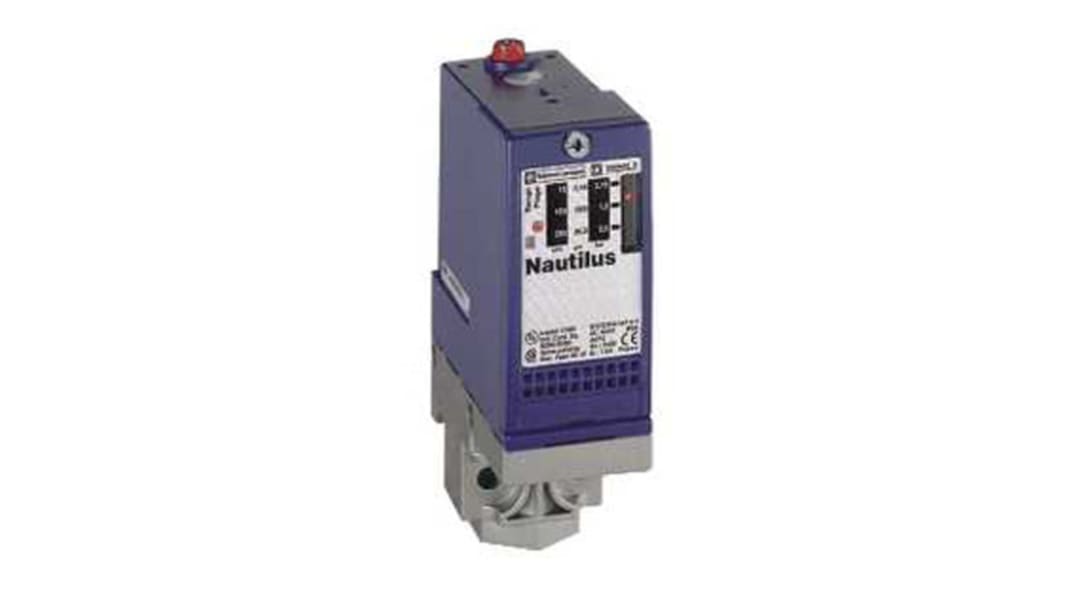

    Telemecanique Sensors Pressure Switch, 0bar Min, 70bar Max, 1CO Output

    Telemecanique Sensors
    RS Stock No.:
    135-3735
    Mfr. Part No.:
    XMLA070E2S11
    Brand:
    Telemecanique Sensors
    View all Pressure Sensors
    13 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £206.99

    (exc. VAT)

    £248.39

    (inc. VAT)

    UnitsPer unit
    1 +£206.99
    RS Stock No.:
    135-3735
    Mfr. Part No.:
    XMLA070E2S11
    Brand:
    Telemecanique Sensors

    Technical Reference


    Legislation and Compliance


    Product Details

    OsiSense XMLA Pressure Switches


    Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.

    Fixed differential
    External pressure setting window available
    1 NO & 1 NC snap acting contacts
    Temperature range: –25 to +70 °C
    Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
    Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
    Media connection: 1/4" NPT
    Conduit connection: 1/2" NPT

    Note

    Pressure quoted is 'per cycle' and (occasional)

    Specifications

    Attribute
    Value
    Minimum Pressure Reading0bar
    Maximum Pressure Reading70bar
    Accuracy2 %
    Output Type1CO
    Media MeasuredFresh Water, Sea Water
    Electrical ConnectionPG 13.5
    Maximum Current100 mA @ 250 V dc, 3 A @ 120 V ac
    Supply Voltage240 V ac, 250 V dc
    Housing MaterialZinc Alloy
    Minimum Operating Temperature-13°C
    Maximum Operating Temperature+158°C
    Mounting TypePanel Mount
    IP RatingIP65, IP66
