RS PRO Pressure Sensor, I2C Output 0 bar, Gauge Reading 70 bar
- RS Stock No.:
- 272-6966
- Brand:
- RS PRO
Subtotal (1 unit)*
£114.59
(exc. VAT)
£137.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £114.59 |
*price indicative
- RS Stock No.:
- 272-6966
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pressure Sensor | |
| Pressure Reading Type | Gauge | |
| Maximum Pressure Measurement | 70bar | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±0.5 % | |
| Output Type | I2C | |
| Media Measured | Air | |
| Interface Type | 5-Pin Connector | |
| Maximum Supply Voltage | 3.3V dc | |
| Standards/Approvals | RoHS | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pressure Sensor | ||
Pressure Reading Type Gauge | ||
Maximum Pressure Measurement 70bar | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±0.5 % | ||
Output Type I2C | ||
Media Measured Air | ||
Interface Type 5-Pin Connector | ||
Maximum Supply Voltage 3.3V dc | ||
Standards/Approvals RoHS | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- CN

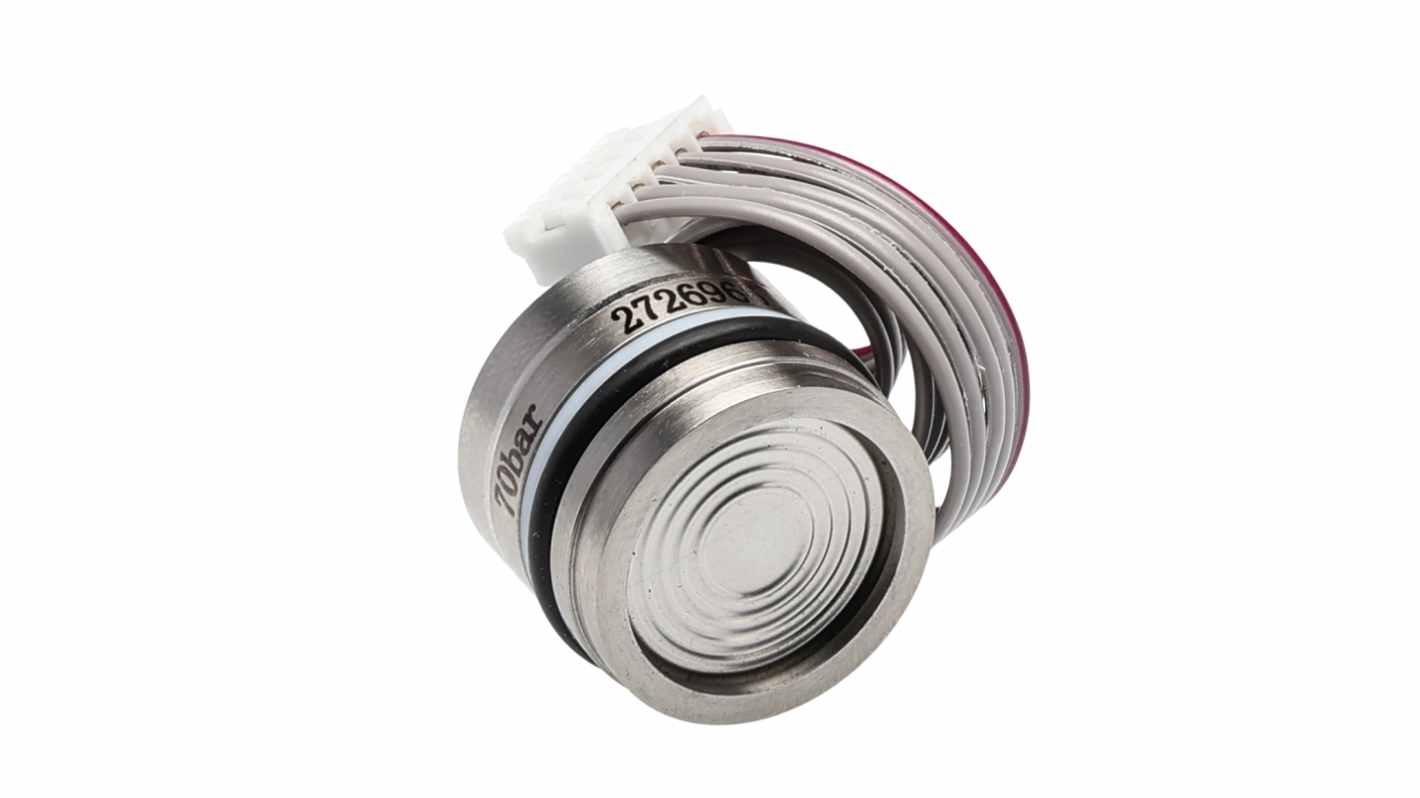

RS PRO 19mm Piezoresistant Pressure Sensor, 0 – 70 bar
A highly stable piezoresistant isolated pressure sensor or pressure transmitter. Utilizing silicon for the measurement or pressure within air, water, mixed oil or other fluids. The piezoresistant sensor is suitable for a wide range of applications including pressure control and calibration, industrial measurement, process control and cooling systems including air conditioning.;Compact at only 19mm the sealed gauge pressure sensor is well suited to installation in tight areas where space is limited. The Stainless Steel housing and diaphragm offers excellent corrosion and chemical resistance and a FKM O-ring provides a tight reliable, oil resistant seal.
Features and Benefits
19mm sealed gauge pressure sensor;Pressure range of 0 – 70bar;Isolated construction;Compensated;Stainless Steel 316L housing and diaphragm;Output digital value 1638 (zero)/ 14746 (span);Output 14 digits (max 16383) ;Atmospheric pressure of 86kPa - 106kPa;Weight of 30g
Suitable Medium
Air;Water;Mixed oil ;Fluids compatible with wetted parts
