RS PRO Pressure Sensor, I2C Output 0 bar, Gauge Reading 100 bar

RS Stock No.:: 272-6960
Brand:: RS PRO

RS PRO Pressure Sensor, I2C Output 0 bar, Gauge Reading 100 bar

Subtotal (1 unit)*

£89.90

(exc. VAT)

£107.88

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 18 unit(s) shipping from 16 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£89.90

*price indicative

RS Stock No.:: 272-6960
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Pressure Reading Type	Gauge
	Maximum Pressure Measurement	100bar
	Product Type	Pressure Sensor
	Minimum Pressure Measurement	0bar
	Accuracy	±0.5 %
	Output Type	I2C
	Media Measured	Air
	Interface Type	5-Pin Connector
	Maximum Supply Voltage	3.3V dc
	Housing Material	Stainless Steel
	Standards/Approvals	RoHS
	Maximum Operating Temperature	80°C
	Minimum Operating Temperature	-20°C

	Select all
	Brand RS PRO
	Pressure Reading Type Gauge
	Maximum Pressure Measurement 100bar
	Product Type Pressure Sensor
	Minimum Pressure Measurement 0bar
	Accuracy ±0.5 %
	Output Type I2C
	Media Measured Air
	Interface Type 5-Pin Connector
	Maximum Supply Voltage 3.3V dc
	Housing Material Stainless Steel
	Standards/Approvals RoHS
	Maximum Operating Temperature 80°C
	Minimum Operating Temperature -20°C

COO (Country of Origin):: CN

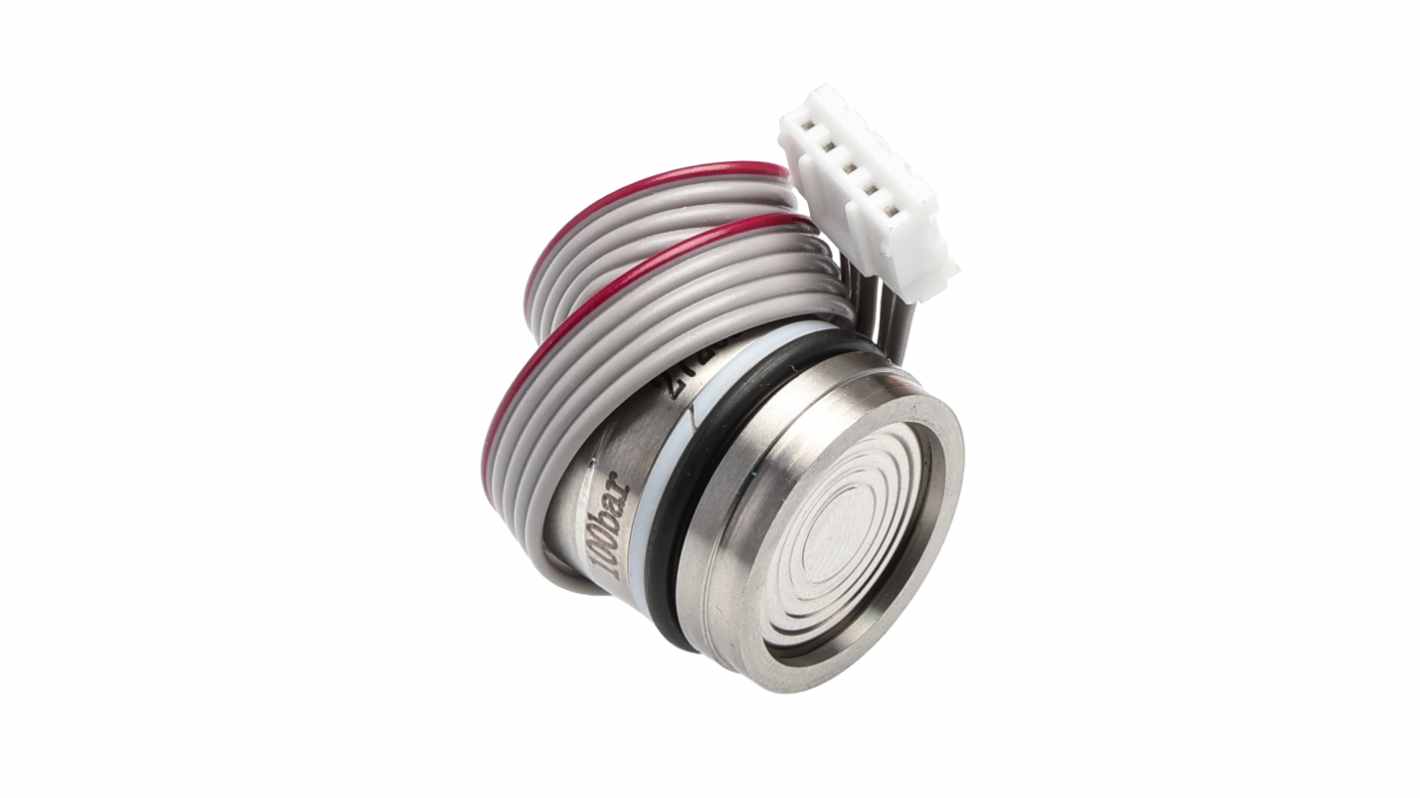

RS PRO 19mm Piezoresistant Pressure Sensor, 0 – 100 bar

A highly stable piezoresistant isolated pressure sensor or pressure transmitter. Utilizing silicon for the measurement or pressure within air, water, mixed oil or other fluids. The piezoresistant sensor is suitable for a wide range of applications including pressure control and calibration, industrial measurement, process control and cooling systems including air conditioning.;Compact at only 19mm the sealed gauge pressure sensor is well suited to installation in tight areas where space is limited. The Stainless Steel housing and diaphragm offers excellent corrosion and chemical resistance and a FKM O-ring provides a tight reliable, oil resistant seal.

Features and Benefits

19mm selead gauge pressure sensor;Pressure range of 0 – 100bar;Isolated construction;Compensated;Stainless Steel 316L housing and diaphragm;Output digital value 1638 (zero)/ 14746 (span);Output 14 digits (max 16383) ;Atmospheric pressure of 86kPa - 106kPa;Weight of 30g

Suitable Medium

Air;Water;Mixed oil ;Fluids compatible with wetted parts
