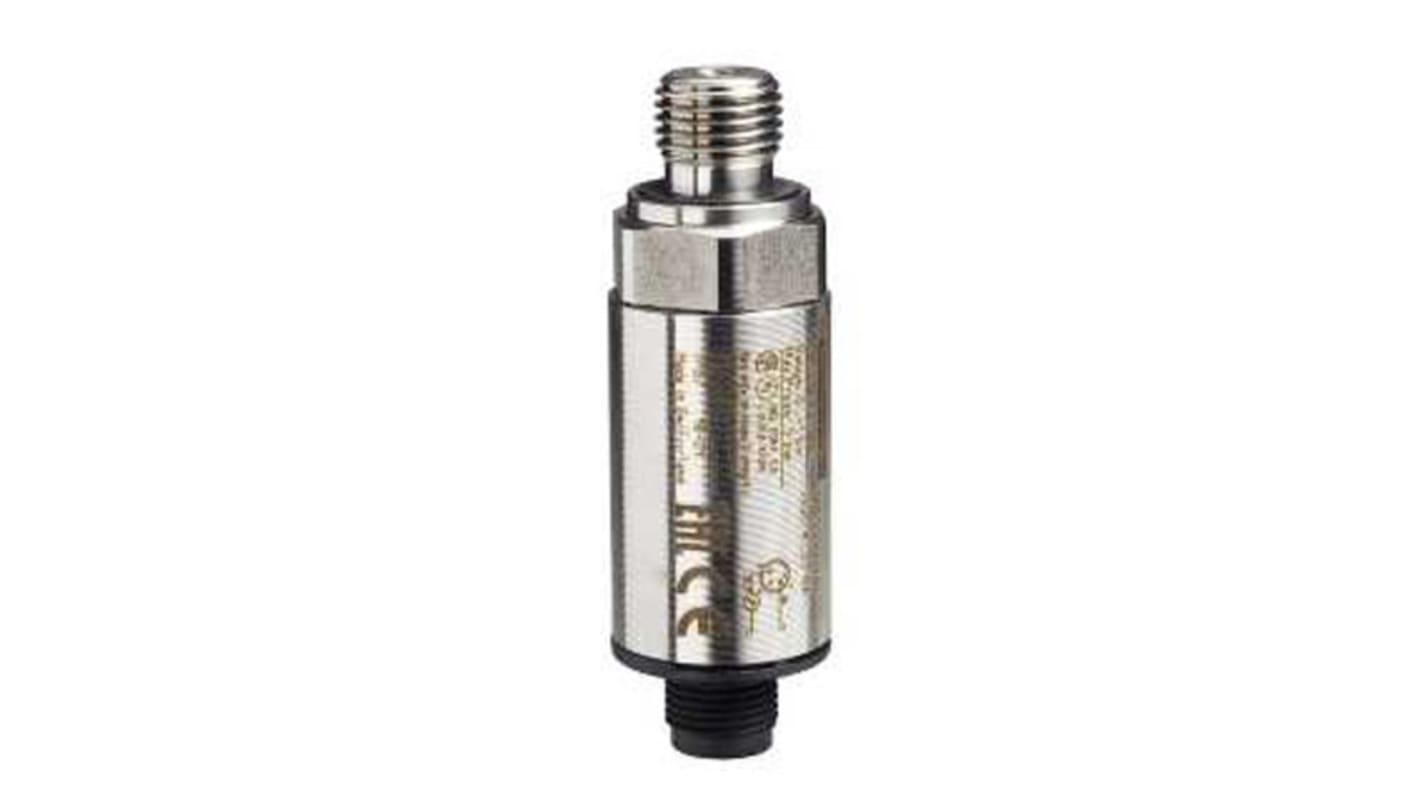

Telemecanique Sensors Pressure Switch, 0bar Min, 16bar Max, Analogue Output

View all Pressure Sensors

Subtotal (1 unit)*

£311.18

(exc. VAT)

£373.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£311.18

*price indicative

RS Stock No.:
135-3755
Mfr. Part No.:
XMLG016D21
Brand:
Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all

Brand

Telemecanique Sensors

Minimum Pressure Reading

0bar

Maximum Pressure Reading

16bar

Accuracy

±0.1 %

Output Type

Analogue

Media Measured

Air, Corrosive Fluid, Fresh Water, Hydraulic Oil, Sea Water

Electrical Connection

M12 3-Pin Connector

Analogue Output

4 → 20 mA

Response Time

2 ms

Maximum Current

20 mA

Supply Voltage

12 V dc, 24 V dc

Housing Material

Aluminium Oxide Ceramic, Stainless Steel

IP Rating

IP66, IP67

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

+85°C

Mounting Type

Thread Mount

COO (Country of Origin):
CH

OsiSense XMLG Electronic Pressure Sensors


Schneider Electric XMLG pressure transmitters and pressure switches feature a ceramic pressure measuring cell. The deformation caused by the pressure is transmitted to the resistors of a Wheatstone bridge silk-screened on the ceramic. The change in resistance is then processed by the integrated electronics, providing either a digital or analog output signal.

Adjustable differential
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
