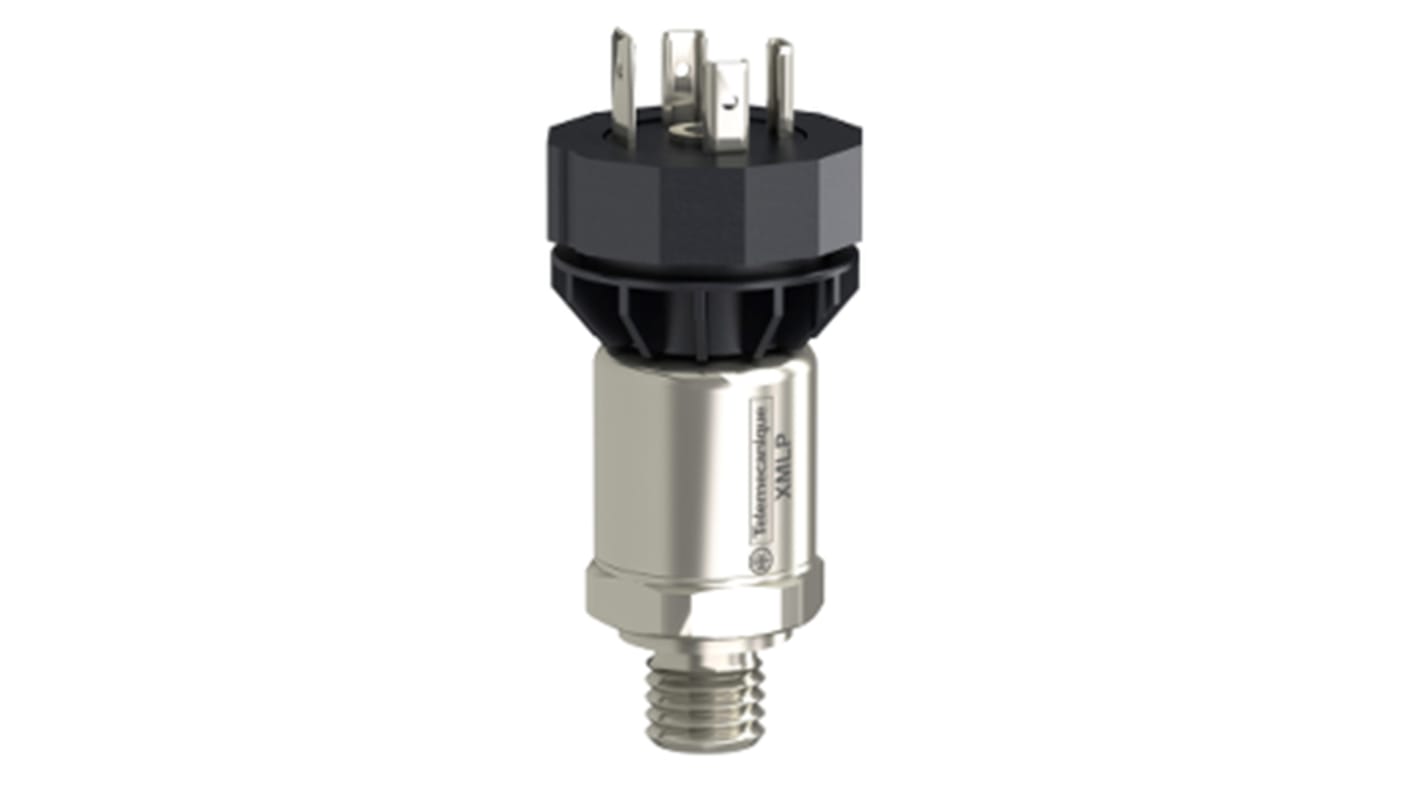

Telemecanique Sensors XMLP Series Pressure Switch, Analogue Output 0 bar 16 bar
- RS Stock No.:
- 176-7856
- Mfr. Part No.:
- XMLP016BC11F
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£162.80
(exc. VAT)
£195.36
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.80 |
*price indicative
- RS Stock No.:
- 176-7856
- Mfr. Part No.:
- XMLP016BC11F
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Maximum Pressure Measurement | 16bar | |
| Product Type | Pressure Switch | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 0.1 %, ±0.5 (Measurement) % | |
| Output Type | Analogue | |
| Media Measured | Hydraulic Oil, Refrigeration Fluid, Gas, Water, Air | |
| Response Time | 2ms | |
| Maximum Supply Voltage | 5V dc | |
| Series | XMLP | |
| Standards/Approvals | RCM[RETURN]CE[RETURN]cULus, IEC 60068-2-27, IEC 61326-2-3, IEC 60068-2-6, NSF ANSI 61 | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -30°C | |
| IP Rating | IP65, IP67 | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Maximum Pressure Measurement 16bar | ||
Product Type Pressure Switch | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 0.1 %, ±0.5 (Measurement) % | ||
Output Type Analogue | ||
Media Measured Hydraulic Oil, Refrigeration Fluid, Gas, Water, Air | ||
Response Time 2ms | ||
Maximum Supply Voltage 5V dc | ||
Series XMLP | ||
Standards/Approvals RCM[RETURN]CE[RETURN]cULus, IEC 60068-2-27, IEC 61326-2-3, IEC 60068-2-6, NSF ANSI 61 | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -30°C | ||
IP Rating IP65, IP67 | ||
XMLP pressure transmitters rated at less than 9 bar or 100 psi:These transmitters integrate a ceramic pressure measuring cell. Ceramic technology has been used successfully for many years and offers a high level of sensitivity that is particularly suitable for measuring low pressures. Ceramic also provides good resistance to abrasive fluids. An internal fluorocarbon rubber gasket provides the seal between the ceramic measuring cell and the AISI 316L stainless steel casing. XMLP pressure transmitters rated greater than or equal to 9 bar or 100 psi:These transmitters integrate a metal pressure measuring cell. This measuring cell, which is welded directly onto the AISI 316L stainless steel transmitter body.
