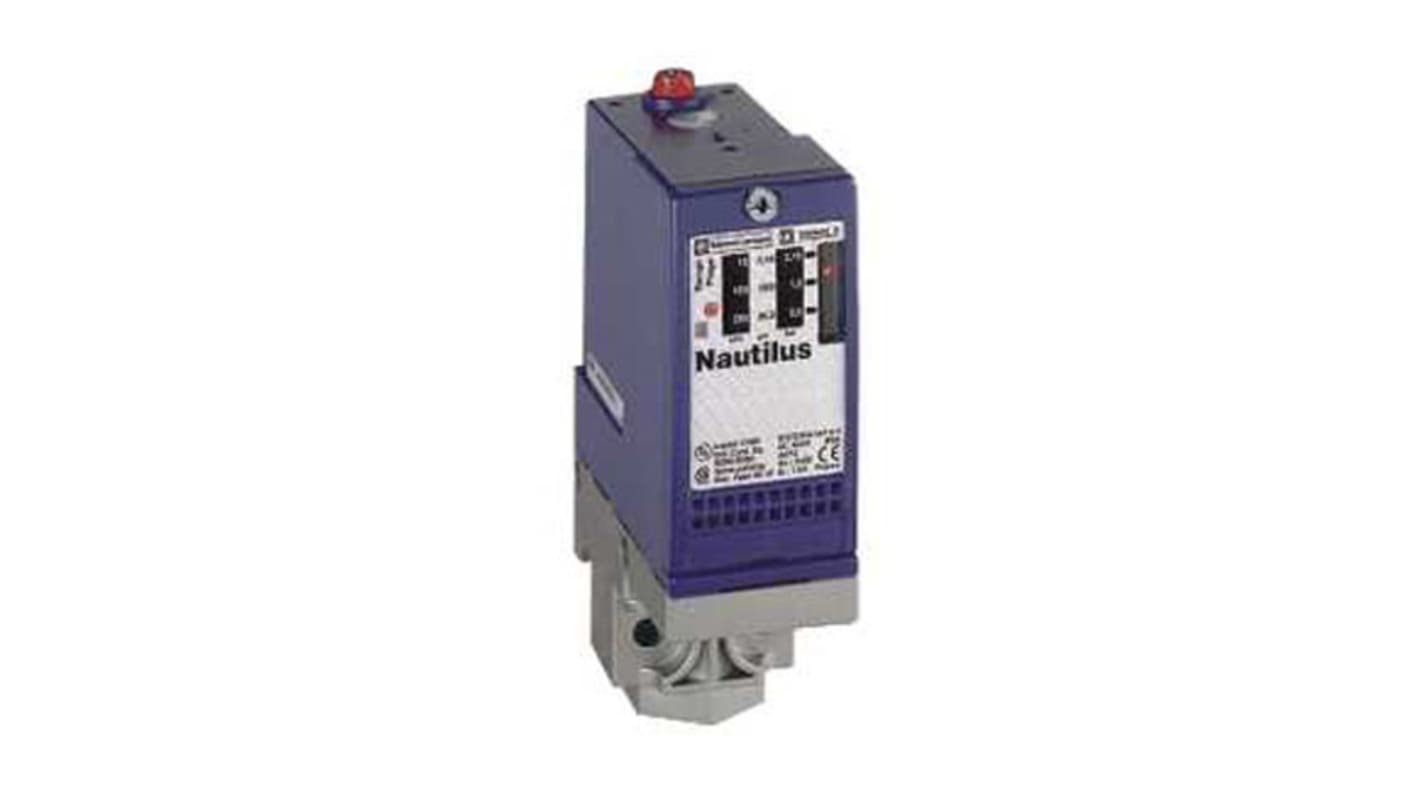

Telemecanique Sensors Pressure Switch, 0bar Min, 10bar Max, 1CO Output
- RS Stock No.:
- 135-3730
- Mfr. Part No.:
- XMLA010C2S11
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£247.05
(exc. VAT)
£296.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 27 November 2025
- Plus 999,999,998 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £247.05 |
*price indicative
- RS Stock No.:
- 135-3730
- Mfr. Part No.:
- XMLA010C2S11
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Minimum Pressure Reading | 0bar | |
| Maximum Pressure Reading | 10bar | |
| Accuracy | 2 % | |
| Output Type | 1CO | |
| Media Measured | Corrosive Fluid | |
| Electrical Connection | PG 13.5 | |
| Maximum Current | 100 mA @ 250 V dc, 3 A @ 120 V ac | |
| Supply Voltage | 240 V ac, 250 V dc | |
| Housing Material | Zinc Alloy | |
| Maximum Operating Temperature | +158°C | |
| Mounting Type | Panel Mount | |
| Minimum Operating Temperature | -13°C | |
| IP Rating | IP65, IP66 | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 10bar | ||
Accuracy 2 % | ||
Output Type 1CO | ||
Media Measured Corrosive Fluid | ||
Electrical Connection PG 13.5 | ||
Maximum Current 100 mA @ 250 V dc, 3 A @ 120 V ac | ||
Supply Voltage 240 V ac, 250 V dc | ||
Housing Material Zinc Alloy | ||
Maximum Operating Temperature +158°C | ||
Mounting Type Panel Mount | ||
Minimum Operating Temperature -13°C | ||
IP Rating IP65, IP66 | ||
- COO (Country of Origin):
- MA
OsiSense XMLA Pressure Switches
Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.
Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
Note
Pressure quoted is 'per cycle' and (occasional)
