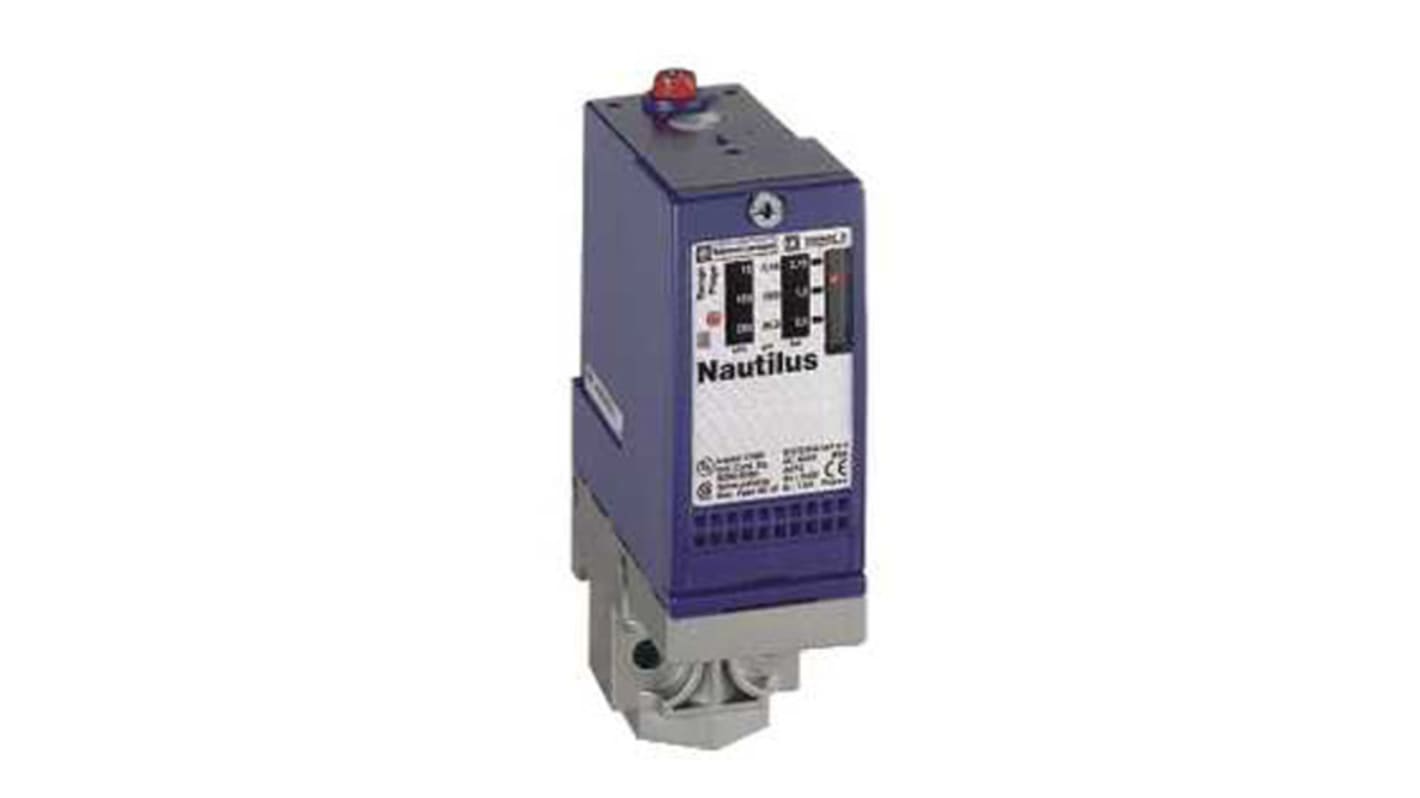

Telemecanique Sensors XMLA Series Pressure Switch 0 bar 10 bar
- RS Stock No.:
- 135-3729
- Mfr. Part No.:
- XMLA010A2S13
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£176.20
(exc. VAT)
£211.44
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £176.20 |
*price indicative
- RS Stock No.:
- 135-3729
- Mfr. Part No.:
- XMLA010A2S13
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Maximum Pressure Measurement | 10bar | |
| Product Type | Pressure Switch | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | 2 % | |
| Series | XMLA | |
| Maximum Supply Voltage | 240V ac | |
| Standards/Approvals | LROS, CCC, BV, EN, EAC, CSA, UL, CE | |
| Housing Material | Zinc Alloy | |
| Maximum Operating Temperature | 158°C | |
| Mount Type | Panel Mount | |
| IP Rating | IP65, IP66 | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Maximum Pressure Measurement 10bar | ||
Product Type Pressure Switch | ||
Minimum Pressure Measurement 0bar | ||
Accuracy 2 % | ||
Series XMLA | ||
Maximum Supply Voltage 240V ac | ||
Standards/Approvals LROS, CCC, BV, EN, EAC, CSA, UL, CE | ||
Housing Material Zinc Alloy | ||
Maximum Operating Temperature 158°C | ||
Mount Type Panel Mount | ||
IP Rating IP65, IP66 | ||
- COO (Country of Origin):
- MA
OsiSense XMLA Pressure Switches
Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold.
Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
Note
Pressure quoted is 'per cycle' and (occasional)
