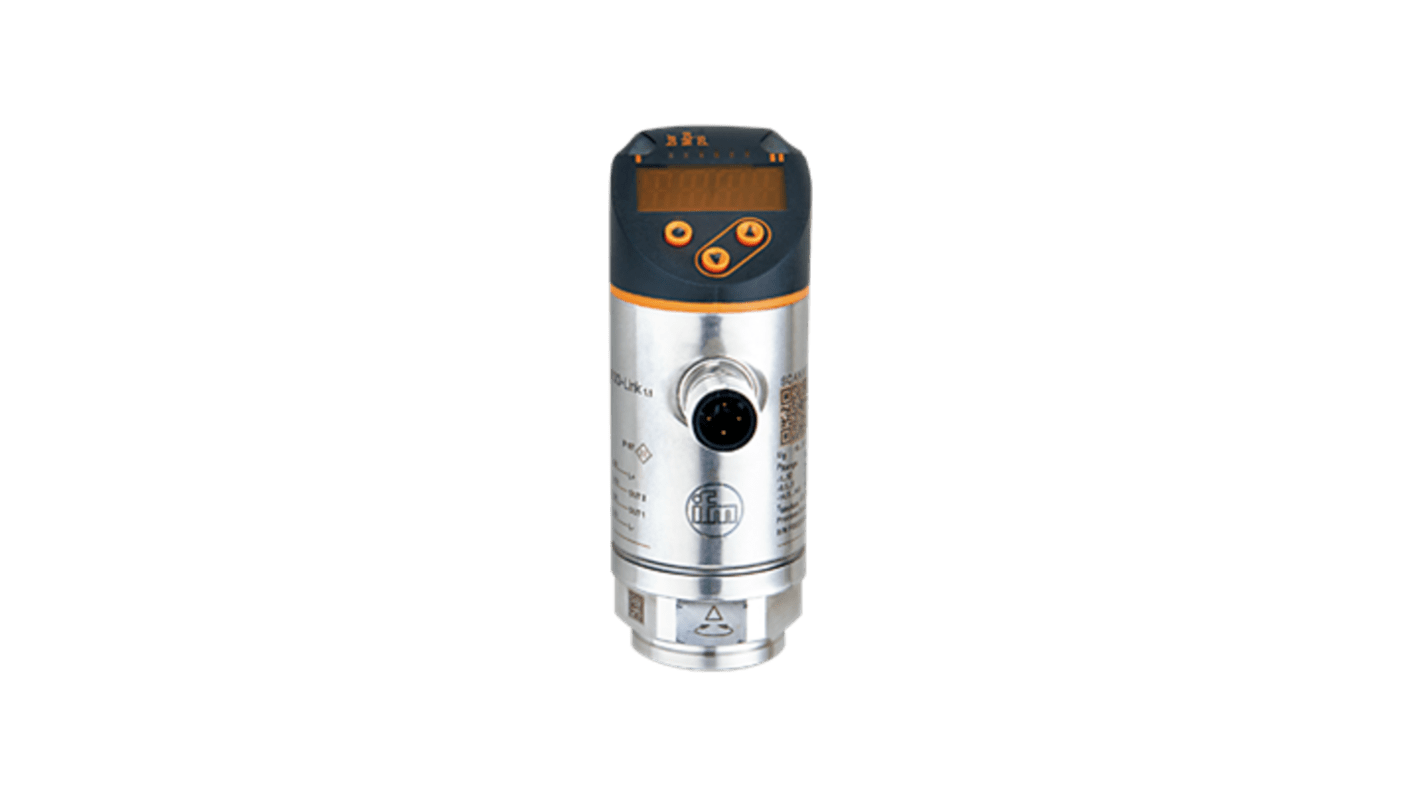

ifm electronic PN72 Series Industrial Pressure Sensor, IO-Link Output 0 bar 2.5 bar, Relative Pressure Reading

View all Pressure Sensors

Subtotal (1 unit)*

£363.16

(exc. VAT)

£435.79

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£363.16

*price indicative

RS Stock No.:
596-738
Mfr. Part No.:
PN7296
Brand:
ifm electronic
Find similar products by selecting one or more attributes.
Select all

Brand

ifm electronic

Pressure Reading Type

Relative Pressure

Product Type

Industrial Pressure Sensor

Maximum Pressure Measurement

2.5bar

Minimum Pressure Measurement

0bar

Accuracy

±0.25 %

Output Type

IO-Link

Media Measured

Gas, Liquid

Interface Type

IO-Link, M12

Terminal Type

M12 Connector

Response Time

3ms

Minimum Supply Voltage

18V

Series

PN72

Maximum Supply Voltage

30V

Standards/Approvals

CE, CRN, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, IO-LINK, SDCI standard: IEC 61131-9, UKCA, UL

Housing Material

316L Stainless Steel, Fibreglass Reinforced PBT GF20, Glass Filled Polybutylene Terephthalate, Polycarbonate

IP Rating

IP65, IP67

Maximum Operating Temperature

80°C

Minimum Operating Temperature

-25°C

Mount Type

Screw

The ifm electronic pressure sensor with display is an advanced device designed for precise measurement and monitoring of pressure in industrial applications. With a range covering 0 to 2.5 bar, this sensor is equipped with a readable alphanumeric display, two digital outputs, and the flexibility of an IO-Link communication interface. Its robust design, featuring gold-plated contacts and ceramic-capacitive pressure measuring cell, ensures reliability even in demanding environments. With an IP 65 and IP 67 protection class, this sensor withstands harsh conditions while providing accurate readings from liquids and gases. The integrated watchdog and reverse polarity protection enhance safety and performance in critical setups.

Alphanumeric 4-digit display for clear pressure readings

Two digital outputs provide versatile control and monitoring options

IO-Link communication streamlines integration and data exchange

Wide measuring range of 0 to 2.5 bar ensures applicability in various processes
