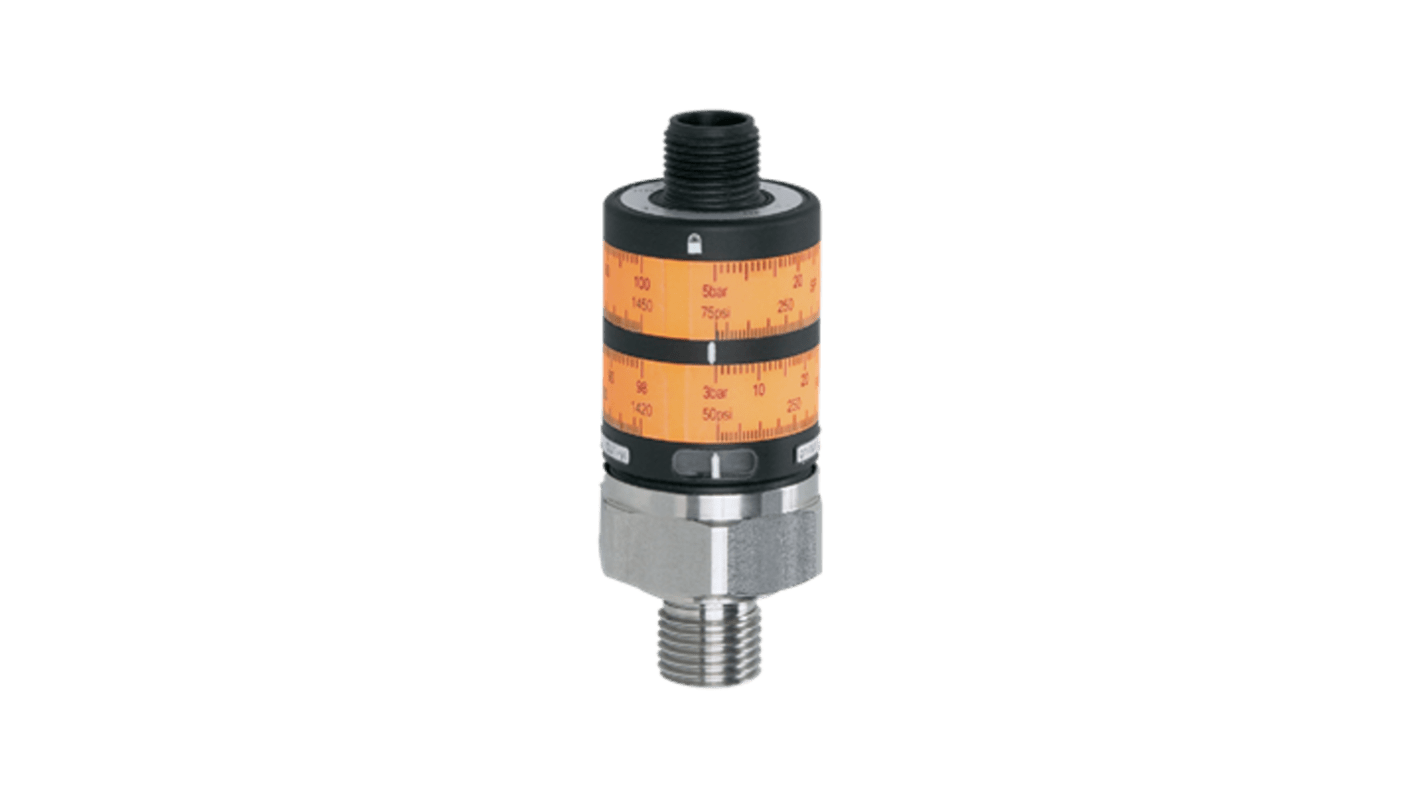

ifm electronic PK Series Pressure Switch, 0bar Min, 400bar Max, NPN Output, Relative Reading
- RS Stock No.:
- 596-187
- Mfr. Part No.:
- PK8530
- Brand:
- ifm electronic
Subtotal (1 unit)*
£173.99
(exc. VAT)
£208.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £173.99 |
*price indicative
- RS Stock No.:
- 596-187
- Mfr. Part No.:
- PK8530
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ifm electronic | |
Pressure Reading Type | Relative | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 400bar | |
Accuracy | ± 2.5 | |
Output Type | NPN | |
Series | PK | |
Select all | ||
---|---|---|
Brand ifm electronic | ||
Pressure Reading Type Relative | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 400bar | ||
Accuracy ± 2.5 | ||
Output Type NPN | ||
Series PK | ||
- COO (Country of Origin):
- RO
The ifm electronic pressure switch is engineered for demanding industrial applications, providing reliable performance through its intuitive switch point setting. Designed to accurately monitor pressure levels, it features a measuring range of 0 to 400 bar and is capable of handling both liquids and gases. With an ambient temperature tolerance of -25 to 80°C and a robust IP67 protection rating, this device ensures durability in various environments. Its advanced electrical specifications, such as reverse polarity protection and a low current consumption profile, make it an energy-efficient choice. With its compact cylindrical housing and high-quality stainless steel construction, this pressure switch is built to last while delivering precision and reliability in process control.
Integrated with two digital outputs for versatile signaling and control
Capable of operating within a wide voltage range of 9.6 to 32 DC
Features a user-friendly adjustment for accurate switch point settings
Built with short-circuit and overload protection for enhanced safety
Capable of operating within a wide voltage range of 9.6 to 32 DC
Features a user-friendly adjustment for accurate switch point settings
Built with short-circuit and overload protection for enhanced safety
