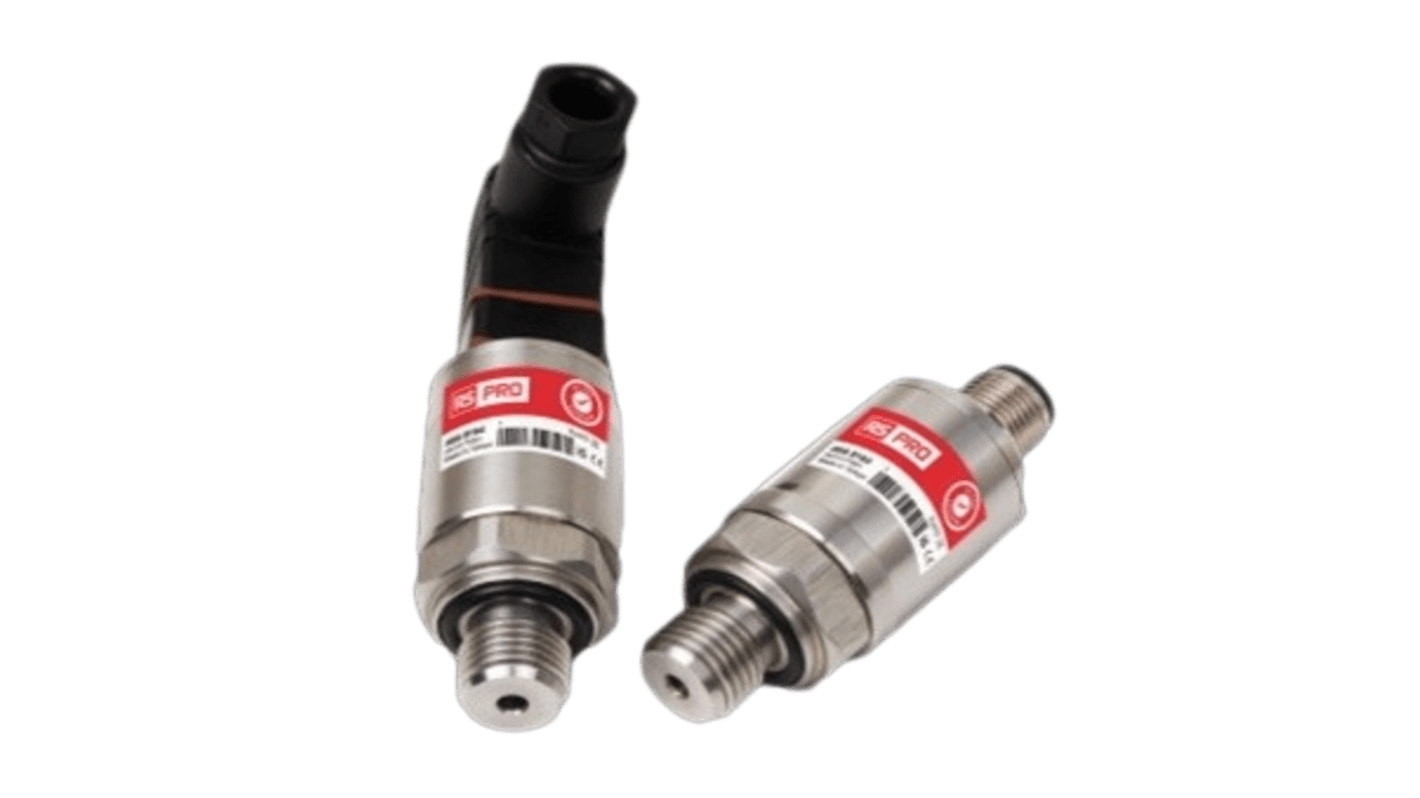

RS PRO Pressure Sensor, 100bar Max, Voltage Output, Absolute Reading
- RS Stock No.:
- 429-799
- Brand:
- RS PRO
Subtotal (1 unit)*
£137.76
(exc. VAT)
£165.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £137.76 |
*price indicative
- RS Stock No.:
- 429-799
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pressure Reading Type | Absolute | |
Maximum Pressure Reading | 100bar | |
Accuracy | ±1% | |
Output Type | Voltage | |
Process Connection | G 1/4 | |
Electrical Connection | 3-Wire, Cable | |
Analogue Output | 0 → 5V dc | |
Response Time | 1m/s | |
Maximum Current | 20mA | |
Supply Voltage | 8 → 24, 12 → 28V dc | |
Housing Material | Stainless Steel | |
IP Rating | IP67 | |
Maximum Operating Temperature | 80°C | |
Mounting Type | Thread Mount | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pressure Reading Type Absolute | ||
Maximum Pressure Reading 100bar | ||
Accuracy ±1% | ||
Output Type Voltage | ||
Process Connection G 1/4 | ||
Electrical Connection 3-Wire, Cable | ||
Analogue Output 0 → 5V dc | ||
Response Time 1m/s | ||
Maximum Current 20mA | ||
Supply Voltage 8 → 24, 12 → 28V dc | ||
Housing Material Stainless Steel | ||
IP Rating IP67 | ||
Maximum Operating Temperature 80°C | ||
Mounting Type Thread Mount | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TR
RS PRO Pressure Transmitter, 100 bar Maximum Pressure
The RS PRO Pressure Transmitter is designed for precise pressure measurement in industrial applications. With a maximum pressure range of 100 bar, it offers reliable absolute pressure readings, making it ideal for demanding environments.
Features and Benefits
Compact design ensures easy integration into systems
High robustness for durability in harsh conditions
Accurate pressure measurement up to 100 bar for reliable data
IP67 rating provides excellent protection against dust and water
Stainless steel housing for enhanced corrosion resistance
Wide supply voltage range (8 to 24
High robustness for durability in harsh conditions
Accurate pressure measurement up to 100 bar for reliable data
IP67 rating provides excellent protection against dust and water
Stainless steel housing for enhanced corrosion resistance
Wide supply voltage range (8 to 24
12 to 28 V dc) for flexibility
Voltage output (0 to 5 V dc) for easy interfacing with control systems
Voltage output (0 to 5 V dc) for easy interfacing with control systems
Applications
Industrial automation
Process control
Hydraulic systems
Pneumatic systems
Process control
Hydraulic systems
Pneumatic systems
Additional Information
Interface: 5-Pin Connector
Mounting Type: Thread Mount
Response Time: 1 m/s
Mounting Type: Thread Mount
Response Time: 1 m/s
