RS PRO Pressure Sensor, 250bar Max, Voltage Output, Absolute Reading
- RS Stock No.:
- 429-803
- Brand:
- RS PRO
Subtotal (1 unit)*
£182.19
(exc. VAT)
£218.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £182.19 |
*price indicative
- RS Stock No.:
- 429-803
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pressure Reading Type | Absolute | |
Maximum Pressure Reading | 250bar | |
Accuracy | ±1% | |
Output Type | Voltage | |
Process Connection | G 1/4 | |
Analogue Output | 0 → 100mV | |
Response Time | 1m/s | |
Maximum Current | 20mA | |
Supply Voltage | 8 → 24, 12 → 28V dc | |
Interface | 12-Pin Connector | |
Housing Material | Stainless Steel | |
IP Rating | IP67 | |
Minimum Operating Temperature | -40°C | |
Mounting Type | Thread Mount | |
Maximum Operating Temperature | 80°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pressure Reading Type Absolute | ||
Maximum Pressure Reading 250bar | ||
Accuracy ±1% | ||
Output Type Voltage | ||
Process Connection G 1/4 | ||
Analogue Output 0 → 100mV | ||
Response Time 1m/s | ||
Maximum Current 20mA | ||
Supply Voltage 8 → 24, 12 → 28V dc | ||
Interface 12-Pin Connector | ||
Housing Material Stainless Steel | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Mounting Type Thread Mount | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- TR

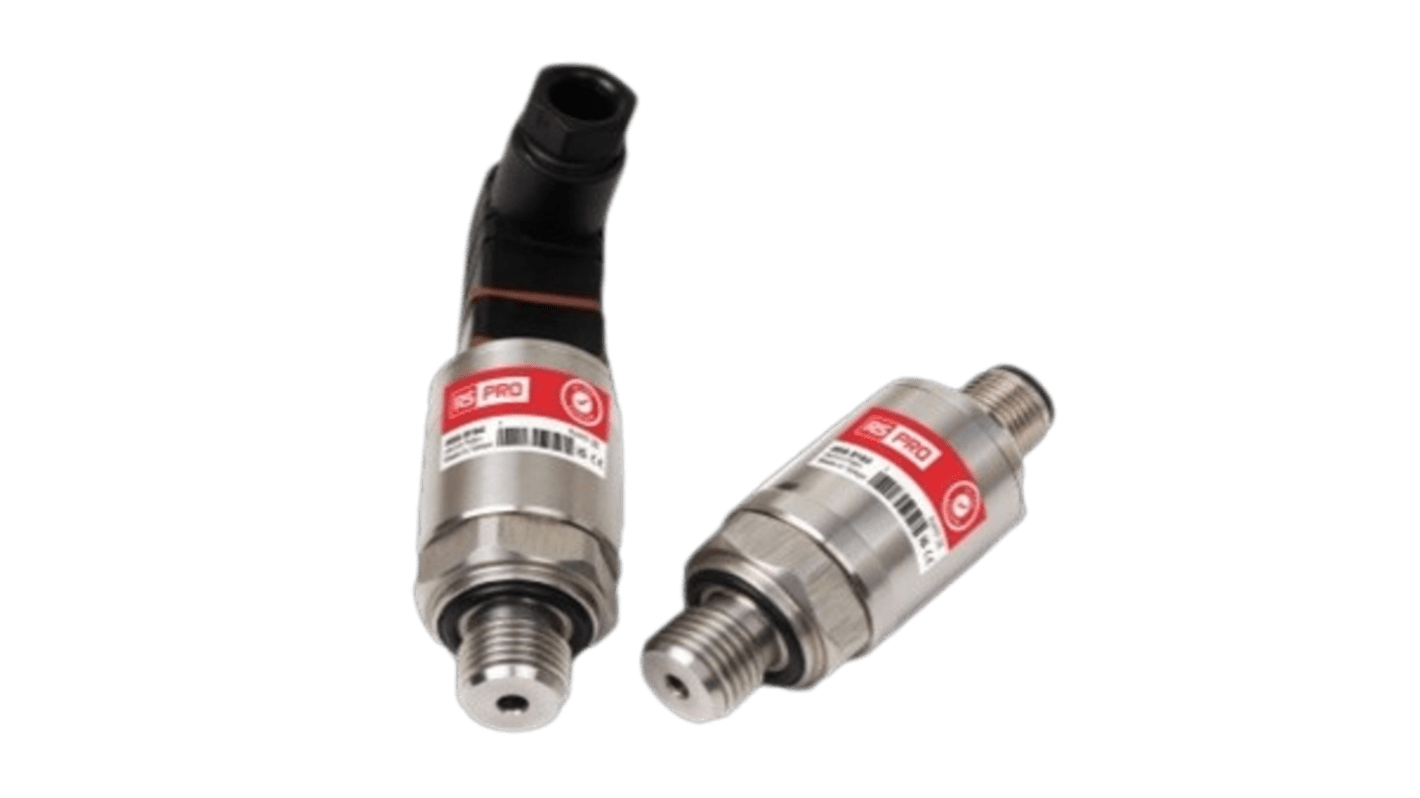

RS PRO Pressure Transmitter, 250 bar Maximum Pressure
The RS PRO Pressure Transmitter is a compact and robust solution designed for accurate pressure measurement up to 250 bar. Ideal for industrial applications, it provides reliable absolute pressure feedback, ensuring precise monitoring and control.
Features and Benefits
Compact design ensures easy integration into various systems
High robustness offers durability in demanding environments
Accurate pressure measurement up to 250 bar enhances reliability
IP67 rating provides excellent protection against dust and water
Wide supply voltage range (8 to 24
High robustness offers durability in demanding environments
Accurate pressure measurement up to 250 bar enhances reliability
IP67 rating provides excellent protection against dust and water
Wide supply voltage range (8 to 24
12 to 28 V dc) for versatile use
Stainless steel housing ensures long-lasting performance
Thread mount for secure and stable installation
Fast response time of 1 m/s for real-time monitoring
Stainless steel housing ensures long-lasting performance
Thread mount for secure and stable installation
Fast response time of 1 m/s for real-time monitoring
Applications
Industrial automation
Process control
Hydraulic systems
Pneumatic systems
Process control
Hydraulic systems
Pneumatic systems
Additional Information
Interface: 12-Pin Connector
Output Type: Voltage (0 to 100 mV)
Process Connection: G-1/4
Output Type: Voltage (0 to 100 mV)
Process Connection: G-1/4
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
