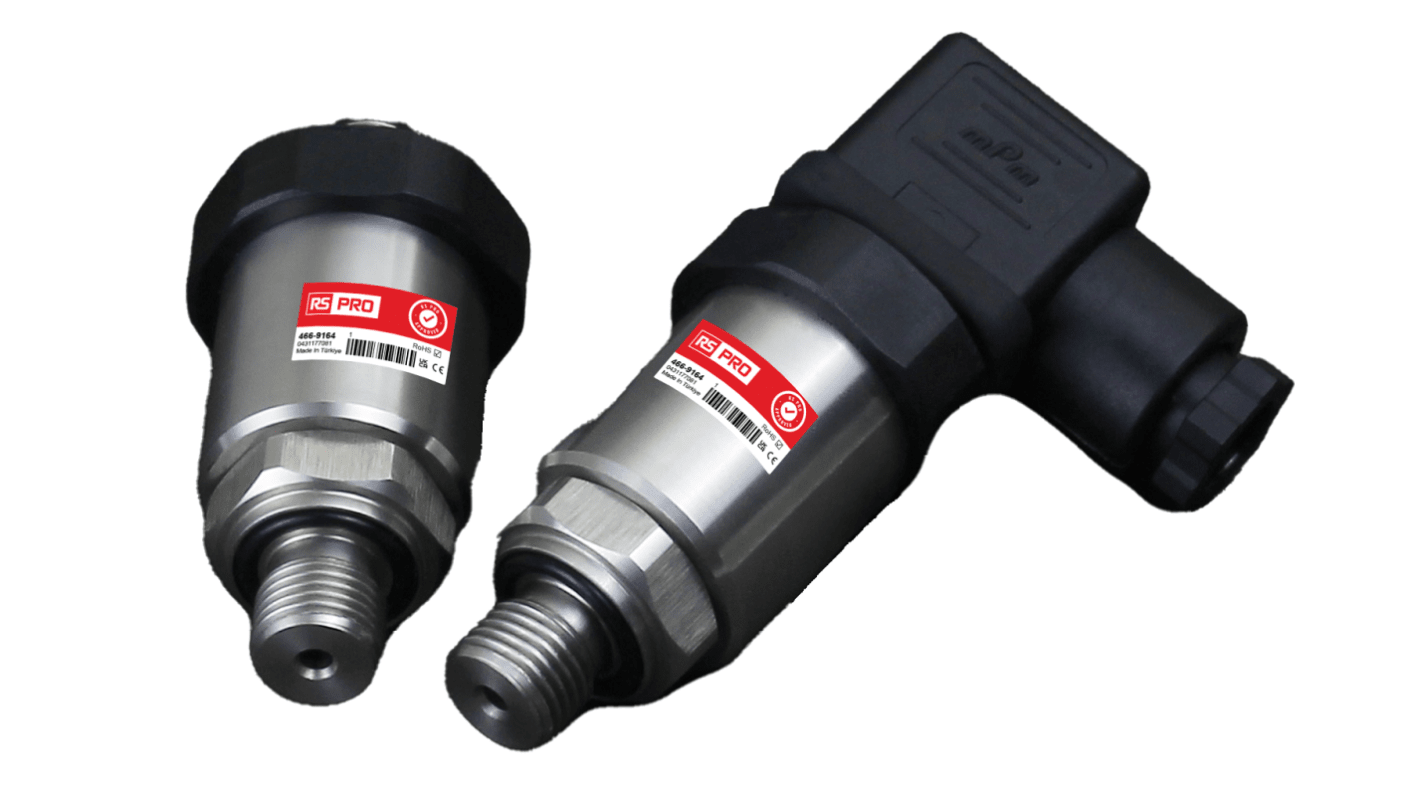

RS PRO Pressure Transmitter, 0bar Min, 4bar Max, Voltage Output, Absolute Reading
- RS Stock No.:
- 309-746
- Brand:
- RS PRO
Subtotal (1 unit)*
£90.49
(exc. VAT)
£108.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £90.49 |
*price indicative
- RS Stock No.:
- 309-746
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pressure Reading Type | Absolute | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 4bar | |
Accuracy | ±1% | |
Output Type | Voltage | |
Process Connection | G 1/4 | |
Electrical Connection | 3-Wire, Cable | |
Analogue Output | 0 → 10V | |
Response Time | 1m/s | |
Maximum Current | 20mA | |
Supply Voltage | 8 → 24, 12 → 28V dc | |
Housing Material | Stainless Steel | |
IP Rating | IP67 | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | 80°C | |
Mounting Type | Thread Mount | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pressure Reading Type Absolute | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 4bar | ||
Accuracy ±1% | ||
Output Type Voltage | ||
Process Connection G 1/4 | ||
Electrical Connection 3-Wire, Cable | ||
Analogue Output 0 → 10V | ||
Response Time 1m/s | ||
Maximum Current 20mA | ||
Supply Voltage 8 → 24, 12 → 28V dc | ||
Housing Material Stainless Steel | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Mounting Type Thread Mount | ||
- COO (Country of Origin):
- TR
RS PRO Pressure Transmitter, Absolute Pressure Reading
The RS PRO Pressure Transmitter is designed for precise absolute pressure measurement in various industrial applications. With its robust stainless steel housing and reliable performance, it ensures accurate readings in demanding environments.
Features and Benefits
Wide pressure range: Measures from 10 to 400 bar, suitable for diverse applications
Infinite resolution: Provides highly detailed pressure readings
IP67 rating: Offers excellent protection against dust and water ingress
Stainless steel housing: Ensures durability and resistance to corrosion
Voltage output: 0 to 10 V for easy integration with control systems
Thread mount: Simplifies installation and ensures secure fitting
Fast response time: 1 ms for real-time monitoring
Infinite resolution: Provides highly detailed pressure readings
IP67 rating: Offers excellent protection against dust and water ingress
Stainless steel housing: Ensures durability and resistance to corrosion
Voltage output: 0 to 10 V for easy integration with control systems
Thread mount: Simplifies installation and ensures secure fitting
Fast response time: 1 ms for real-time monitoring
Applications
Hydraulic systems
Pneumatic controls
Industrial automation
Pneumatic controls
Industrial automation
Additional Information
Compatible with 4-pin connectors and operates within a supply voltage range of 8 to 28 V DC. The transmitter features a G-1/4 process connection and supports a 3-wire electrical connection.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
