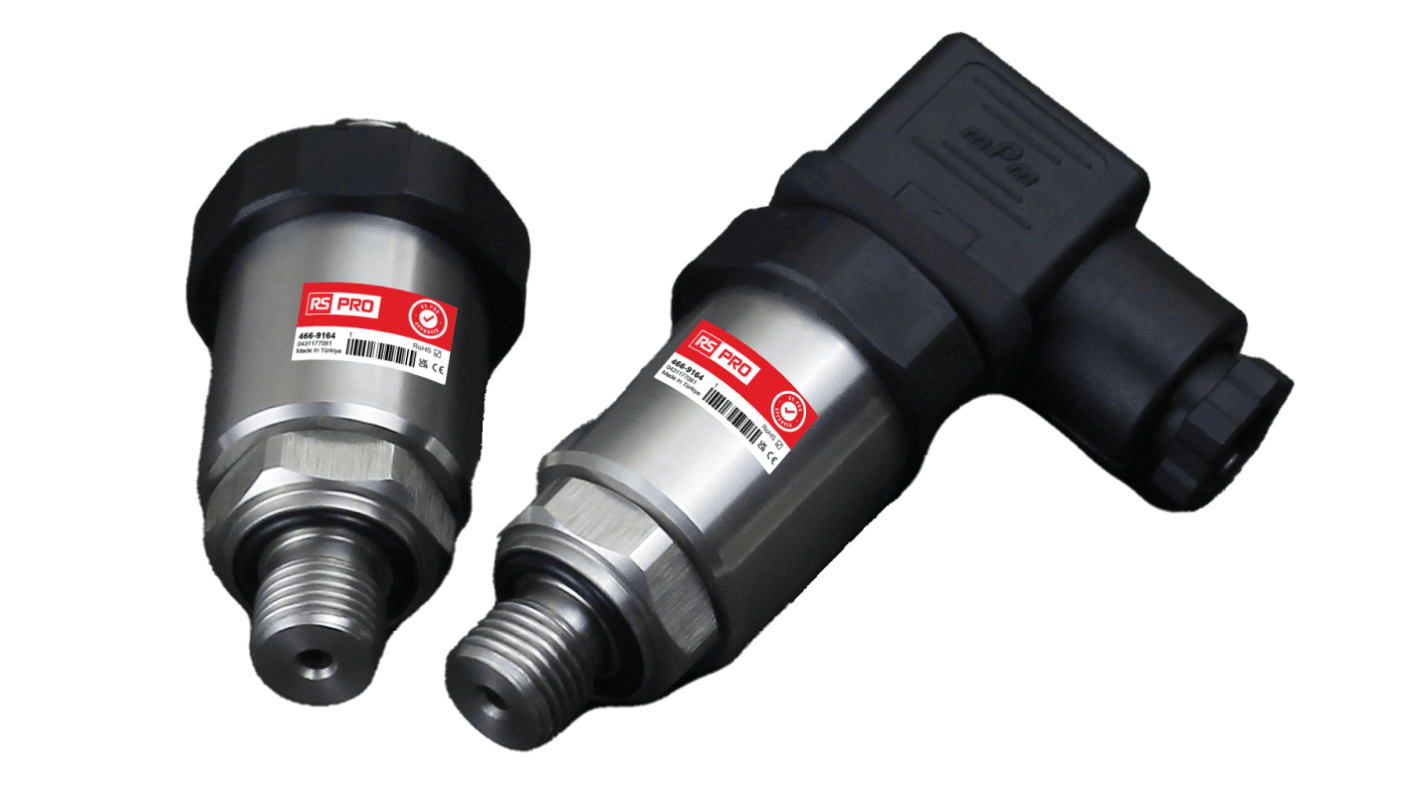

RS PRO Pressure Transmitter, 0 to 10 V dc Output 0 bar 16 bar, Absolute Reading
- RS Stock No.:
- 309-725
- Brand:
- RS PRO
Subtotal (1 unit)*
£106.52
(exc. VAT)
£127.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £106.52 |
*price indicative
- RS Stock No.:
- 309-725
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Pressure Measurement | 16bar | |
| Product Type | Pressure Transmitter | |
| Pressure Reading Type | Absolute | |
| Minimum Pressure Measurement | 0bar | |
| Accuracy | ±1 % | |
| Output Type | 0 to 10 V dc | |
| Terminal Type | Wire Cable | |
| Minimum Supply Voltage | 12V dc | |
| Response Time | 1ms | |
| Maximum Supply Voltage | 28V dc | |
| Series | RS PRO | |
| Standards/Approvals | No | |
| Housing Material | Stainless Steel | |
| IP Rating | IP67 | |
| Mount Type | Screw | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Pressure Measurement 16bar | ||
Product Type Pressure Transmitter | ||
Pressure Reading Type Absolute | ||
Minimum Pressure Measurement 0bar | ||
Accuracy ±1 % | ||
Output Type 0 to 10 V dc | ||
Terminal Type Wire Cable | ||
Minimum Supply Voltage 12V dc | ||
Response Time 1ms | ||
Maximum Supply Voltage 28V dc | ||
Series RS PRO | ||
Standards/Approvals No | ||
Housing Material Stainless Steel | ||
IP Rating IP67 | ||
Mount Type Screw | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TR
RS PRO Pressure Transmitter, Absolute Pressure Reading
A highly robust and accurate pressure transmitter designed for industrial applications, the RS PRO Pressure Transmitter offers a pressure measuring range of up to 600 bar. It provides absolute pressure rating feedback, making it ideal for a wide range of uses.
Features and Benefits
Compact design ensures easy integration into various systems
High robustness for reliable performance in demanding environments
Accurate pressure measurement up to 600 bar for precise monitoring
IP67 rating offers excellent protection against dust and water ingress
Infinite resolution for detailed pressure feedback
Applications
Ideal for use in industrial settings requiring precise pressure monitoring, such as manufacturing, process control, and automation industries.
Additional Information
Features a 4-pin connector interface for secure connections
Stainless steel housing for durability and corrosion resistance
Operates within a temperature range of -40 °C to 80 °C
Provides a voltage output type with an analogue output of 0 to 10 V
