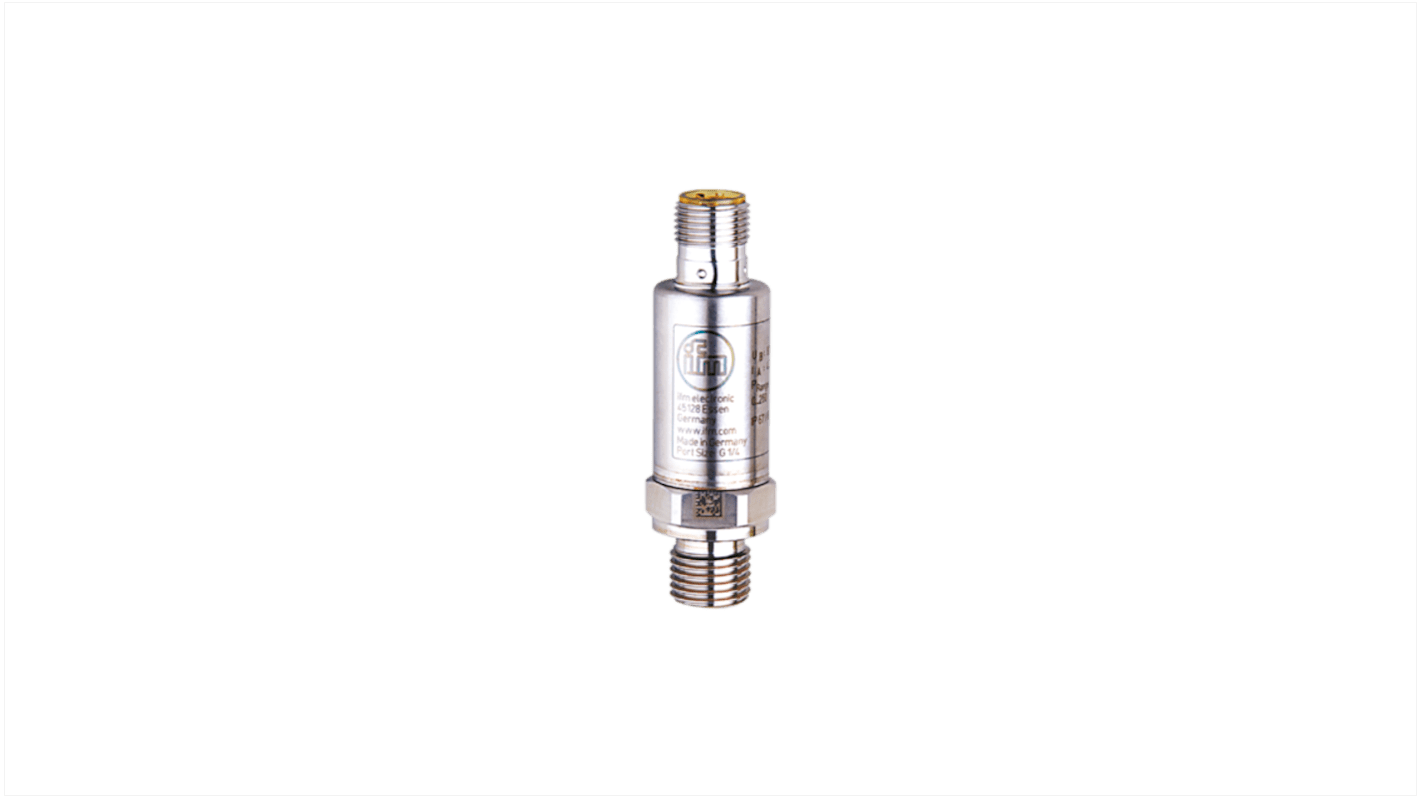

ifm electronic PT Series Pressure Sensor, Analogue Output 360 psi 25 bar, Relative Reading
- RS Stock No.:
- 191-536
- Mfr. Part No.:
- PT5503
- Brand:
- ifm electronic
Subtotal (1 unit)*
£134.62
(exc. VAT)
£161.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £134.62 |
*price indicative
- RS Stock No.:
- 191-536
- Mfr. Part No.:
- PT5503
- Brand:
- ifm electronic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ifm electronic | |
| Maximum Pressure Measurement | 25bar | |
| Pressure Reading Type | Relative | |
| Product Type | Pressure Sensor | |
| Minimum Pressure Measurement | 360psi | |
| Accuracy | ±0.05 % | |
| Output Type | Analogue | |
| Media Measured | Liquid | |
| Interface Type | Analogue | |
| Terminal Type | M12 Connector | |
| Response Time | 2ms | |
| Minimum Supply Voltage | 8V | |
| Series | PT | |
| Maximum Supply Voltage | 32V | |
| Standards/Approvals | UN ECE R10, rev. 5 (E1) ISO 11452-2 100 V/m DIN EN 61326-1 | |
| Housing Material | Polyetherimide, 630 Stainless Steel, 316L Stainless Steel | |
| Maximum Operating Temperature | 125°C | |
| IP Rating | IP69K, IP67 | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand ifm electronic | ||
Maximum Pressure Measurement 25bar | ||
Pressure Reading Type Relative | ||
Product Type Pressure Sensor | ||
Minimum Pressure Measurement 360psi | ||
Accuracy ±0.05 % | ||
Output Type Analogue | ||
Media Measured Liquid | ||
Interface Type Analogue | ||
Terminal Type M12 Connector | ||
Response Time 2ms | ||
Minimum Supply Voltage 8V | ||
Series PT | ||
Maximum Supply Voltage 32V | ||
Standards/Approvals UN ECE R10, rev. 5 (E1) ISO 11452-2 100 V/m DIN EN 61326-1 | ||
Housing Material Polyetherimide, 630 Stainless Steel, 316L Stainless Steel | ||
Maximum Operating Temperature 125°C | ||
IP Rating IP69K, IP67 | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- RO
The Ifm electronic Pressure Transmitter delivers precise pressure measurement in mobile machinery with its robust stainless steel construction, designed for high shock and vibration resistance. It features a compact form for tight spaces and a lifespan exceeding 60 million pressure cycles, ensuring long-term stability and accuracy even under challenging conditions.
For the reliable detection of the system pressure in mobile machines
Robust stainless steel housing with high shock and vibration resistance
Compact housing for use where space is restricted
Lifespan of more than 60 million pressure cycles
With long-term stability thanks to high repeatability and low linearity error
