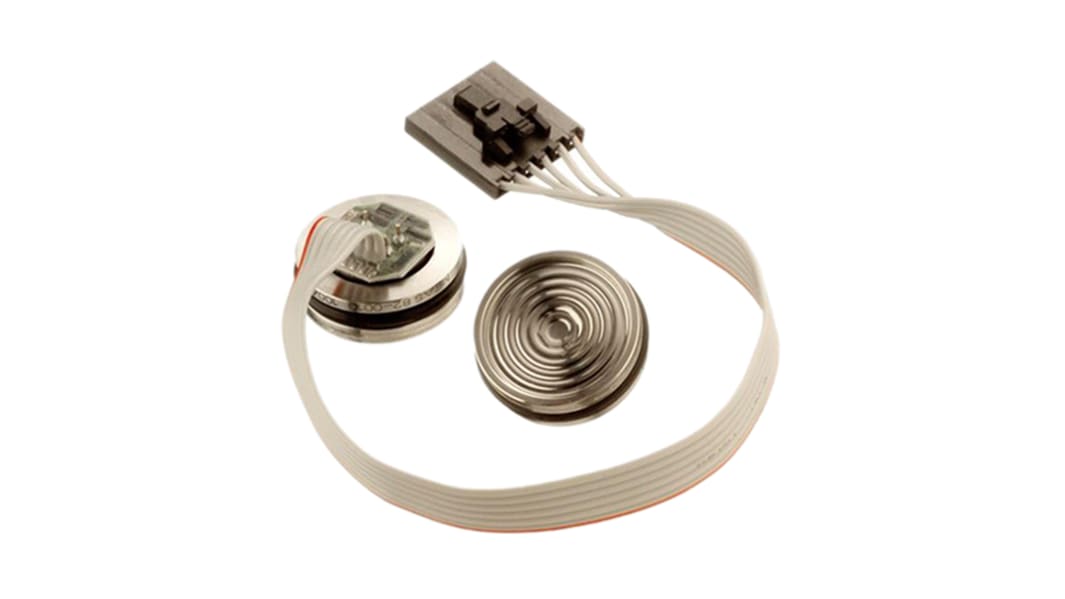

TE Connectivity Absolute Pressure Sensor, 5psi Operating Max, Surface Mount, 15psi Overload Max
- RS Stock No.:
- 893-7339
- Mfr. Part No.:
- 82-005G-RT
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 893-7339
- Mfr. Part No.:
- 82-005G-RT
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Maximum Overload Pressure | 15psi | |
Mounting Type | Surface Mount | |
Dimensions | 19 (Dia.) x 7.3mm | |
Maximum Operating Pressure | 5psi | |
Maximum Operating Temperature | +70 °C | |
Maximum Output Voltage | 0.1 V | |
Minimum Output Voltage | 0 V | |
Minimum Operating Temperature | -20 °C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Maximum Overload Pressure 15psi | ||
Mounting Type Surface Mount | ||
Dimensions 19 (Dia.) x 7.3mm | ||
Maximum Operating Pressure 5psi | ||
Maximum Operating Temperature +70 °C | ||
Maximum Output Voltage 0.1 V | ||
Minimum Output Voltage 0 V | ||
Minimum Operating Temperature -20 °C | ||
TE Connectivity 82 Compensated Series Pressure Sensors
This TE Connectivity 82 Compensated series of pressure sensors are piezoresistive, media compatible, small profile and packaged in a 316L stainless steel housing. Suitable for OEM applications where compatibility with corrosive media is required, this series is designed for O-Ring mounting or threaded process fittings. This Series also includes an extra laser trimmed resistor that enables span interchangeability to within ±1%, by allowing adjustment of an external differential amplifier. Suitable applications include process control, medical instruments, fresh and waste water measurements, pressure transmitters, partial vacuum gas measurement and tank level systems (RV and industrial).
Features and Benefits
Solid state reliability
O-ring mounting or threaded process fittings
±0.2% Pressure non linearity
1% interchangeable span (provided by gain set resistor)
O-ring mounting or threaded process fittings
±0.2% Pressure non linearity
1% interchangeable span (provided by gain set resistor)
