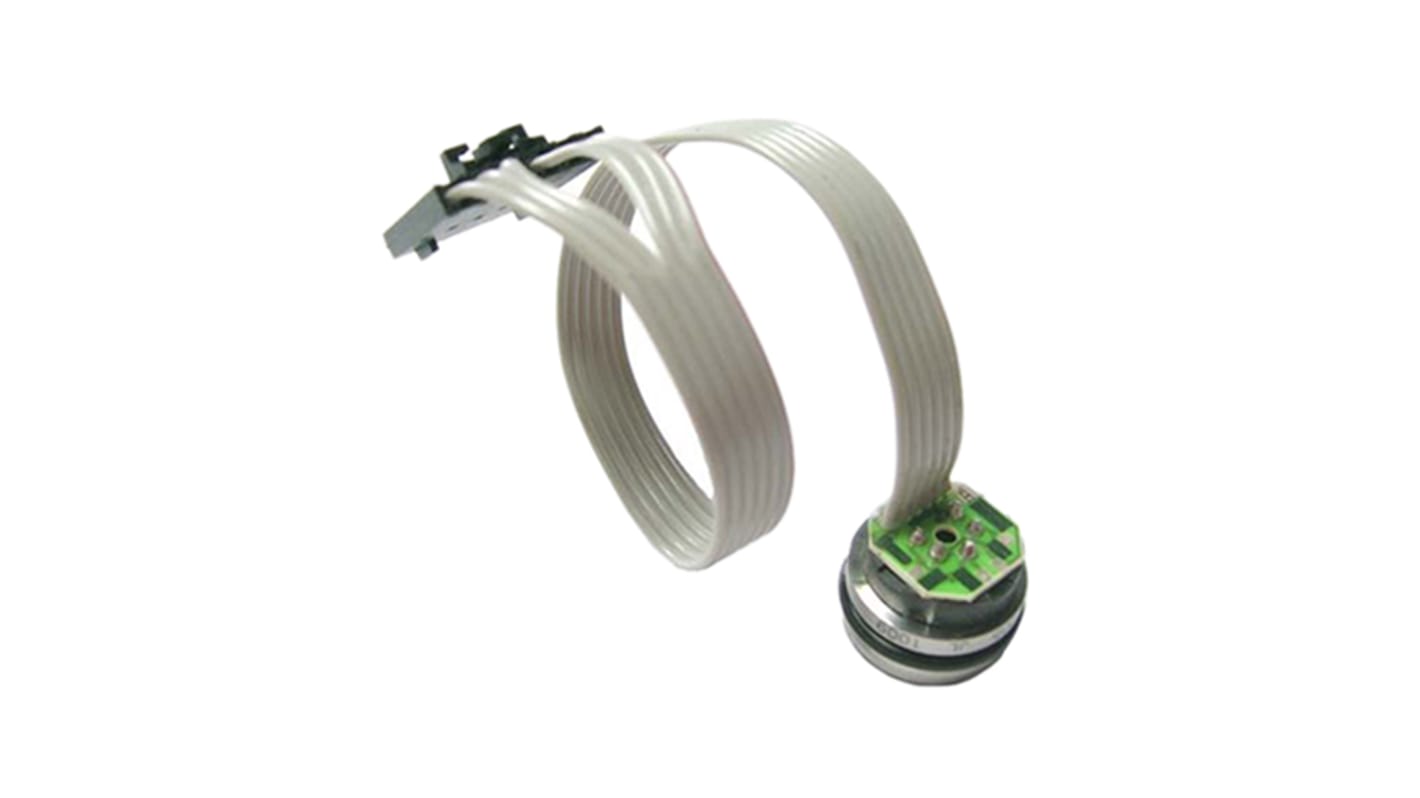

TE Connectivity Absolute Pressure Sensor, 15psi Operating Max, Surface Mount, 45psi Overload Max
- RS Stock No.:
- 893-7216
- Mfr. Part No.:
- 86-015G-RT
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 893-7216
- Mfr. Part No.:
- 86-015G-RT
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Maximum Overload Pressure | 45psi | |
Sensor Type | Absolute Pressure Sensors | |
Mounting Type | Surface Mount | |
Dimensions | 15.825 x 11.4mm | |
Maximum Operating Pressure | 15psi | |
Maximum Operating Temperature | +125 °C | |
Maximum Output Voltage | 0.1 V | |
Minimum Operating Pressure | 0psi | |
Minimum Operating Temperature | -40 °C | |
Minimum Output Voltage | 0 mV | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Maximum Overload Pressure 45psi | ||
Sensor Type Absolute Pressure Sensors | ||
Mounting Type Surface Mount | ||
Dimensions 15.825 x 11.4mm | ||
Maximum Operating Pressure 15psi | ||
Maximum Operating Temperature +125 °C | ||
Maximum Output Voltage 0.1 V | ||
Minimum Operating Pressure 0psi | ||
Minimum Operating Temperature -40 °C | ||
Minimum Output Voltage 0 mV | ||
TE Connectivity 86 Compensated Series Pressure Sensors
The TE Connectivity 86 Compensated series of pressure sensors are piezoresistive, media compatible, small profile and packaged in a 316L stainless steel housing. Suitable for OEM applications where compatibility with corrosive media is required, this series is designed for O-Ring mounting. 86 Compensated Series piezoresistive pressure sensors also include an extra laser trimmed resistor. An extra trimmed resistor enables span interchangeability to within ±1% by allowing adjustment of an external differential amplifier. Suitable applications include process control, medical instruments, fresh and waste water measurements, pressure transmitters, partial vacuum gas measurement and tank level systems (RV and industrial).
Features and Benefits
Solid-state reliability
O-Ring mounting
±0.2% Pressure non-linearity
1% interchangeable span (provided by gain set resistor)
O-Ring mounting
±0.2% Pressure non-linearity
1% interchangeable span (provided by gain set resistor)
