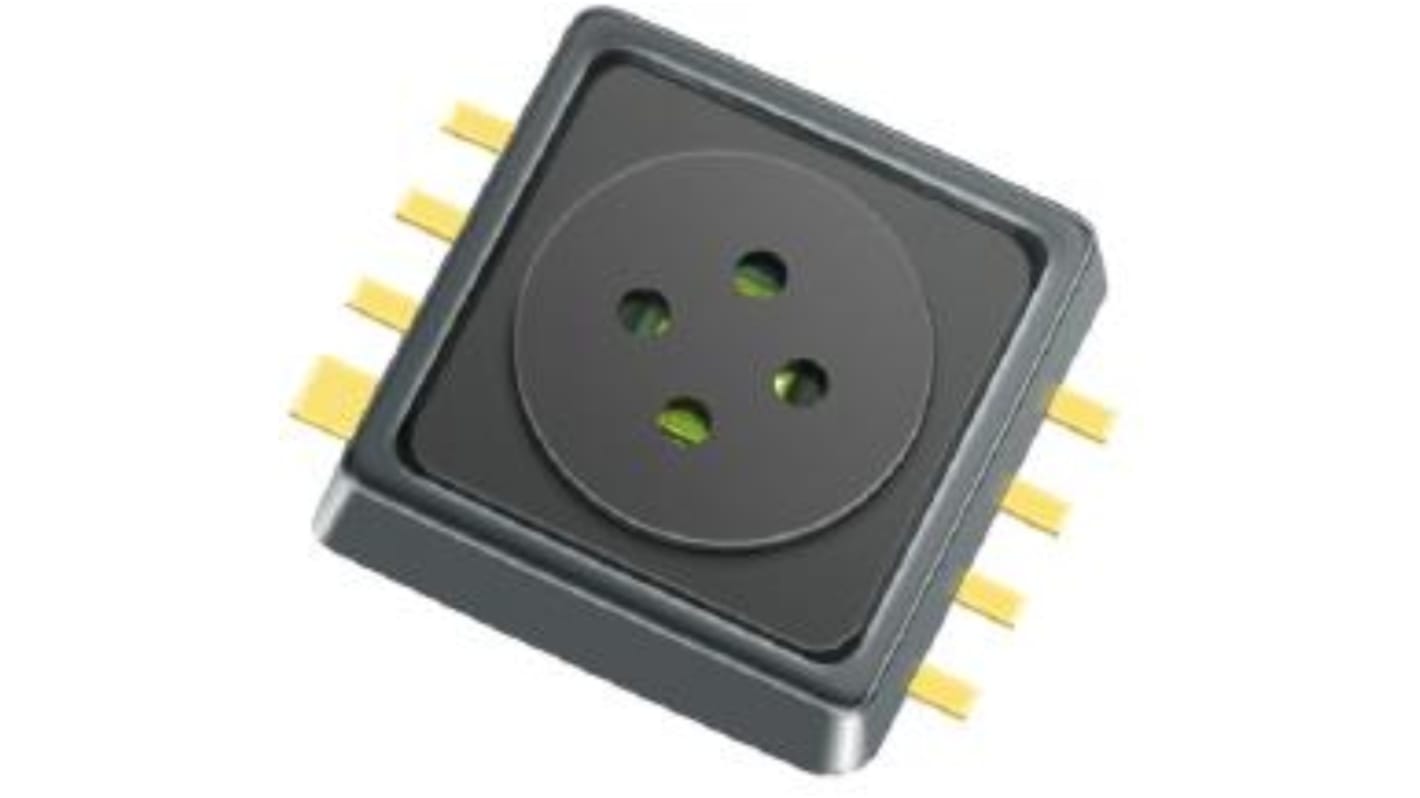

Infineon KP264XTMA1 Absolute Pressure SensorSurface 8 PG-DSOF-8

View all Pressure Sensor ICs
Bulk discount available

Subtotal (1 unit)*

£3.20

(exc. VAT)

£3.84

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,147 unit(s), ready to ship
Units
Per unit
1 - 9£3.20
10 - 99£2.53
100 - 249£2.43
250 - 499£2.37
500 +£2.31

*price indicative

Packaging Options:
RS Stock No.:
258-4026
Mfr. Part No.:
KP264XTMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Sensor Type

Absolute Pressure Sensor

Product Type

Absolute Pressure Sensor

Mount Type

Surface

Package Type

PG-DSOF-8

Pin Count

8

Minimum Supply Voltage

3.135V

Maximum Operating Pressure

200 kPa

Maximum Supply Voltage

5.25V

Accuracy

±1.5 kPa

Maximum Operating Temperature

125°C

Height

2.8mm

Standards/Approvals

RoHS

Series

KP264

Width

8.6 mm

Length

7mm

Minimum Operating Pressure

10kPa

Automotive Standard

AEC

Minimum Operating Temperature

-40°C

The Infineon digital absolute pressure sensor is a miniaturized digital barometric air pressure sensor IC based on a capacitive principle. It is surface micro machined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts a pressure into a 10-bit digital value and sends the information via the SPI interface. In addition, a temperature sensor is integrated on chip. Based on the received SPI command, the 10-bit temperature information will be transmitted via the SPI interface. A special reliability feature is the integrated diagnostic mode, which allows testing the sensor cells as well as the signal path. This diagnosis can be simply triggered with a SPI command.

High accuracy pressure sensing

Real 10-bit pressure resolution

Integrated temperature sensor

Real 10-bit temperature resolution

Self diagnosis features

Green 8 pin SMD housing

Automotive qualified
