TE Connectivity SM9233-BCE-T-300-000 Gauge Pressure SensorSurface 16 SOIC-16

View all Pressure Sensor ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
236-2487
Mfr. Part No.:
SM9233-BCE-T-300-000
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Maximum Overload Pressure

0.07bar

Sensor Type

Gauge Pressure Sensor

Product Type

Gauge Pressure Sensor

Mount Type

Surface

Package Type

SOIC-16

Pin Count

16

Minimum Supply Voltage

3V

Maximum Operating Pressure

300 pA

Port Type

Dual Vertical

Maximum Supply Voltage

5V

Maximum Operating Temperature

85°C

Height

9.32mm

Series

SM9233-BCE-T-300-000

Length

10.26mm

Standards/Approvals

No

Width

10.31 mm

Minimum Operating Pressure

0Pa

Automotive Standard

No

Minimum Operating Temperature

-20°C

COO (Country of Origin):
US

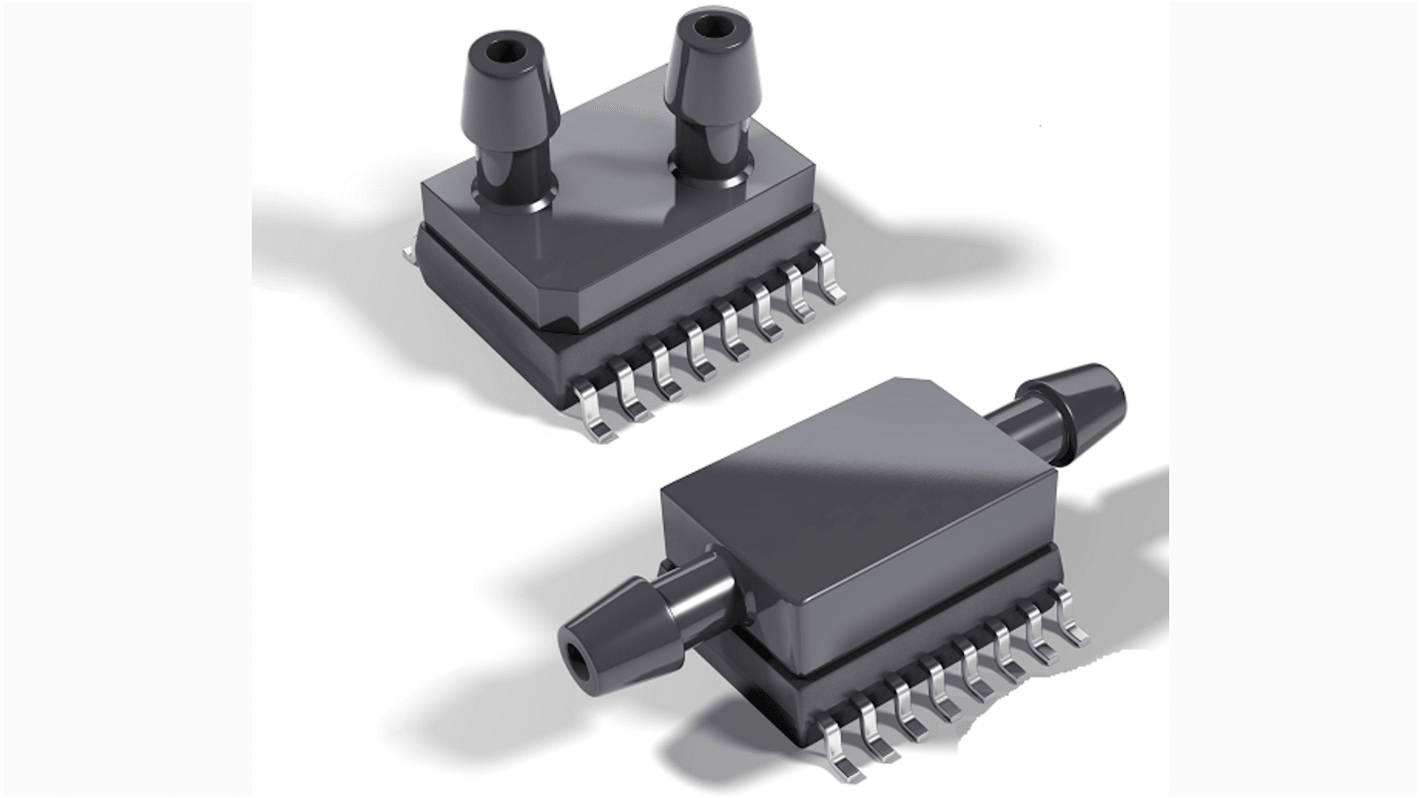

The TE Connectivity SMI ultra low pressure digital sensor is offering state-of-the-art MEMS pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 package with a dual vertical porting option. This pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a custom correction algorithm.

0 to +300 Pa pressure range

3% FS (before Auto zero) error band

16-bit I2C digital interface

Pressure calibrated and temperature compensated output

Compensated temperature range from -20 to 85°C
