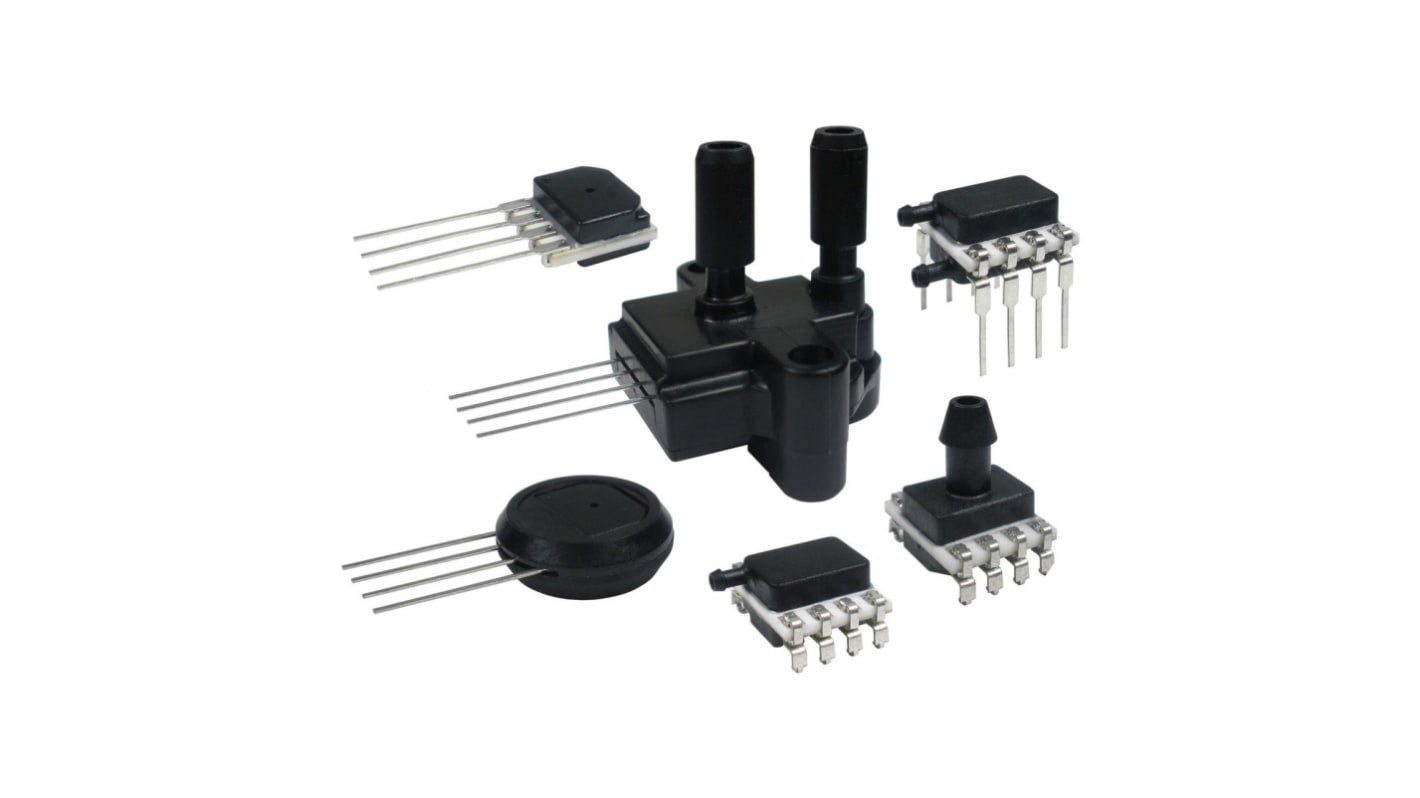

Honeywell Technologies SSCDANV030PAAA5 Piezoresistive Pressure SensorThrough Hole 8 DIP
- RS Stock No.:
- 226-9730
- Mfr. Part No.:
- SSCDANV030PAAA5
- Brand:
- Honeywell
Subtotal (1 box of 50 units)*
£1,673.10
(exc. VAT)
£2,007.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £33.462 | £1,673.10 |
*price indicative
- RS Stock No.:
- 226-9730
- Mfr. Part No.:
- SSCDANV030PAAA5
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Maximum Overload Pressure | 413kPa | |
| Sensor Type | Piezoresistive Pressure Sensor | |
| Product Type | Piezoresistive Pressure Sensor | |
| Mount Type | Through Hole | |
| Package Type | DIP | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 206 kPa | |
| Maximum Supply Voltage | 5V | |
| Accuracy | ±0.25 % | |
| Port Type | Single Axial Barbed | |
| Maximum Operating Temperature | 85°C | |
| Height | 13.75mm | |
| Length | 10mm | |
| Series | SSC | |
| Standards/Approvals | No | |
| Minimum Operating Pressure | 0psi | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Maximum Overload Pressure 413kPa | ||
Sensor Type Piezoresistive Pressure Sensor | ||
Product Type Piezoresistive Pressure Sensor | ||
Mount Type Through Hole | ||
Package Type DIP | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 206 kPa | ||
Maximum Supply Voltage 5V | ||
Accuracy ±0.25 % | ||
Port Type Single Axial Barbed | ||
Maximum Operating Temperature 85°C | ||
Height 13.75mm | ||
Length 10mm | ||
Series SSC | ||
Standards/Approvals No | ||
Minimum Operating Pressure 0psi | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
Honeywell SSC Series Piezoresistive Pressure Sensor, 0 to 206kPa Maximum Operating Pressure, ±0.25% Accuracy - SSCDANV030PAAA5
This piezoresistive pressure sensor converts applied pressure into an electrical signal for measurement and control in low-pressure systems. Designed for through-hole mounting with a single axial barbed port, it operates from low voltages and across a wide temperature range, making it suitable for embedded and bench instrumentation where Compact sensing and straightforward installation are required.
Features and Benefits:
• 0 to 206kPa range for accurate low-pressure measurement
• ±0.25% accuracy pressure sensor for precise readings
• 3.3V to 5V pressure transducer compatibility reduces power constraints
• 8-pin piezoresistive pressure sensor simplifies interfacing
• Single axial barbed pressure port enables secure tubing connection
• ±0.25% accuracy pressure sensor for precise readings
• 3.3V to 5V pressure transducer compatibility reduces power constraints
• 8-pin piezoresistive pressure sensor simplifies interfacing
• Single axial barbed pressure port enables secure tubing connection
Applications
• Suitable for environmental monitoring instruments
• Ideal for medical device pressure feedback loops
• Used with laboratory test rigs requiring Compact sensors
• Can be used for HVAC low-pressure diagnostics
• Suitable for pneumatic control and verification systems
• Ideal for medical device pressure feedback loops
• Used with laboratory test rigs requiring Compact sensors
• Can be used for HVAC low-pressure diagnostics
• Suitable for pneumatic control and verification systems
What supply voltages are supported?
It accepts supply voltages from 3.3V up to 5V.
What temperature span can it function across?
The sensor operates between -40°C and 85°C.
What mounting method is required for installation?
It is a through-hole DIP device intended for PCB through-hole mounting.
How much overpressure can it tolerate?
The device withstands up to 413kPa before overload.
