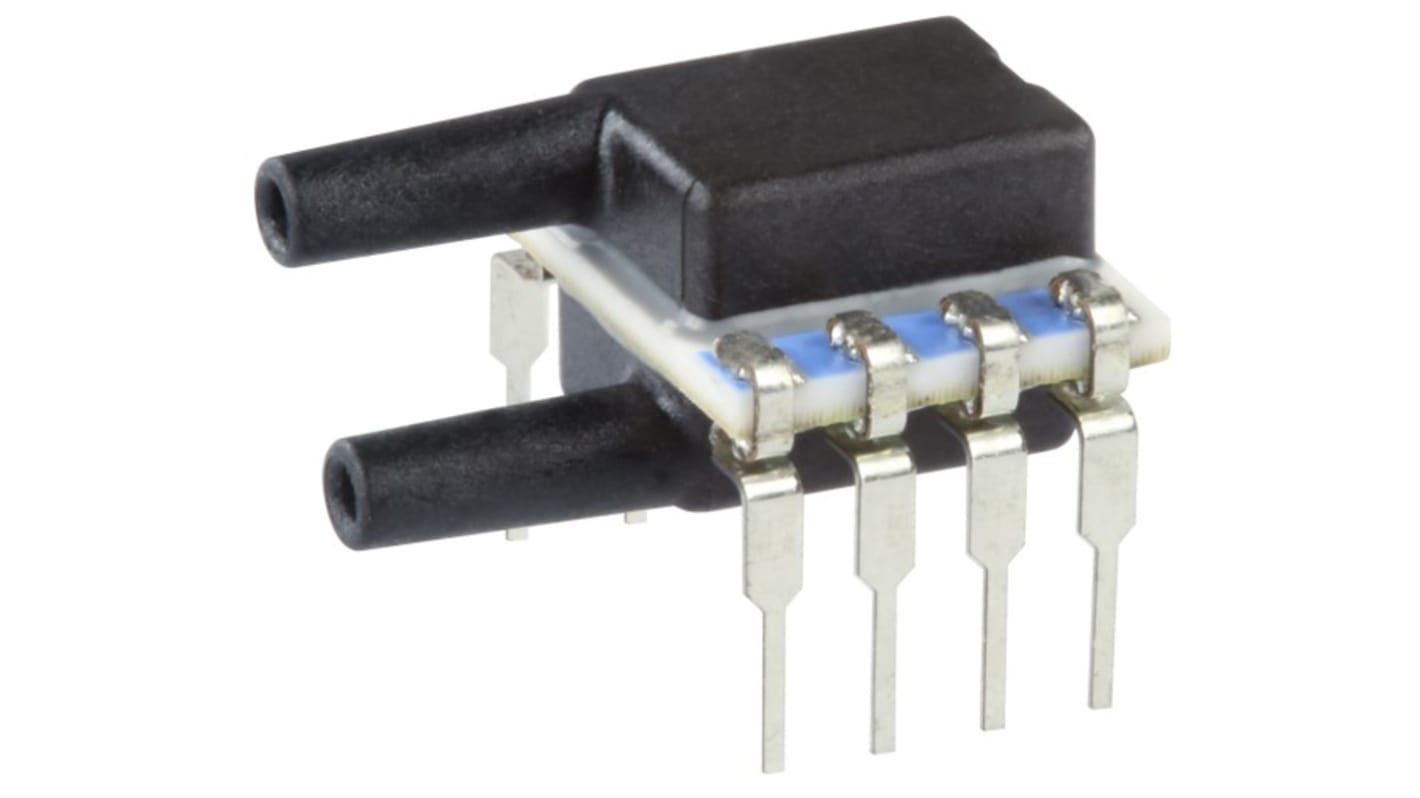

Honeywell Technologies Differential Pressure SensorThrough Hole 8 DIP

RS Stock No.:: 214-1480
Mfr. Part No.:: NSCDJJN005NDUNV
Brand:: Honeywell Technologies

Honeywell Technologies Differential Pressure SensorThrough Hole 8 DIP

Subtotal (1 unit)*

£67.11

(exc. VAT)

£80.53

(inc. VAT)

FREE delivery for orders over £60.00

Being discontinued

Final 57 unit(s), ready to ship

Units	Per unit
1 +	£67.11

*price indicative

RS Stock No.:: 214-1480
Mfr. Part No.:: NSCDJJN005NDUNV
Brand:: Honeywell Technologies

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell Technologies
	Product Type	Differential Pressure Sensor
	Sensor Type	Differential Pressure Sensor
	Mount Type	Through Hole
	Package Type	DIP
	Pin Count	8
	Minimum Supply Voltage	1.5V
	Maximum Operating Pressure	2 in/H2O
	Maximum Supply Voltage	12V
	Accuracy	±0.25 %
	Port Type	Dual Radial Barbless Same Side
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Length	9.91mm
	Series	NSC
	Height	6.51mm
	Minimum Operating Pressure	-5in/H2O
	Automotive Standard	No
	Minimum Operating Temperature	-40°C

	Select all
	Brand Honeywell Technologies
	Product Type Differential Pressure Sensor
	Sensor Type Differential Pressure Sensor
	Mount Type Through Hole
	Package Type DIP
	Pin Count 8
	Minimum Supply Voltage 1.5V
	Maximum Operating Pressure 2 in/H2O
	Maximum Supply Voltage 12V
	Accuracy ±0.25 %
	Port Type Dual Radial Barbless Same Side
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Length 9.91mm
	Series NSC
	Height 6.51mm
	Minimum Operating Pressure -5in/H2O
	Automotive Standard No
	Minimum Operating Temperature -40°C

Datasheet-NSCDJJN005NDUNV

Honeywell NSC Series Differential Pressure Sensor, ±0.25% Accuracy, Board Mount - NSCDJJN005NDUNV

This differential pressure sensor measures small pressure differences for low-pressure monitoring and control. It is designed for PCB mounting and provides precise sensing across a narrow pressure band, operating reliably in environments that require low-voltage operation and Compact installation. The device supports dual radial port connections on the same side, facilitating straightforward pneumatic interfacing for airflow or medical applications.

Features and Benefits:

• ±0.25% accuracy enables precise measurement for tight control
• Operates from 1.5 V to 12 V, supporting low-voltage system integration
• −40 °C to 85 °C range maintains performance across temperatures
• Dual radial barbless same-side ports simplify tubing attachment
• Board-mount package reduces assembly footprint and wiring

Applications

• Suitable for HVAC pressure balancing and airflow monitoring
• Ideal for low-pressure medical monitoring systems
• Used with environmental control units in confined assemblies
• Can be used for industrial differential pressure transducers
• Suitable for low-voltage portable instrumentation projects

What pressure span can it detect?

It senses between -5 inH2O and 5 inH2O, covering low-pressure differentials.

How Compact is the device for tight layouts?

The package measures 13.3 mm width, 9.91 mm length and 6.51 mm height for Compact placement.

What mounting method is required on a PCB?

It is intended for board mounting with through-hole DIP-style attachment.

Are the pressure ports suitable for quick tubing changes?

The ports are barbless radial type on the same side to allow simple push-fit connections.

What temperature extremes can it withstand during operation?

It operates across a -40 °C to 85 °C temperature span.
