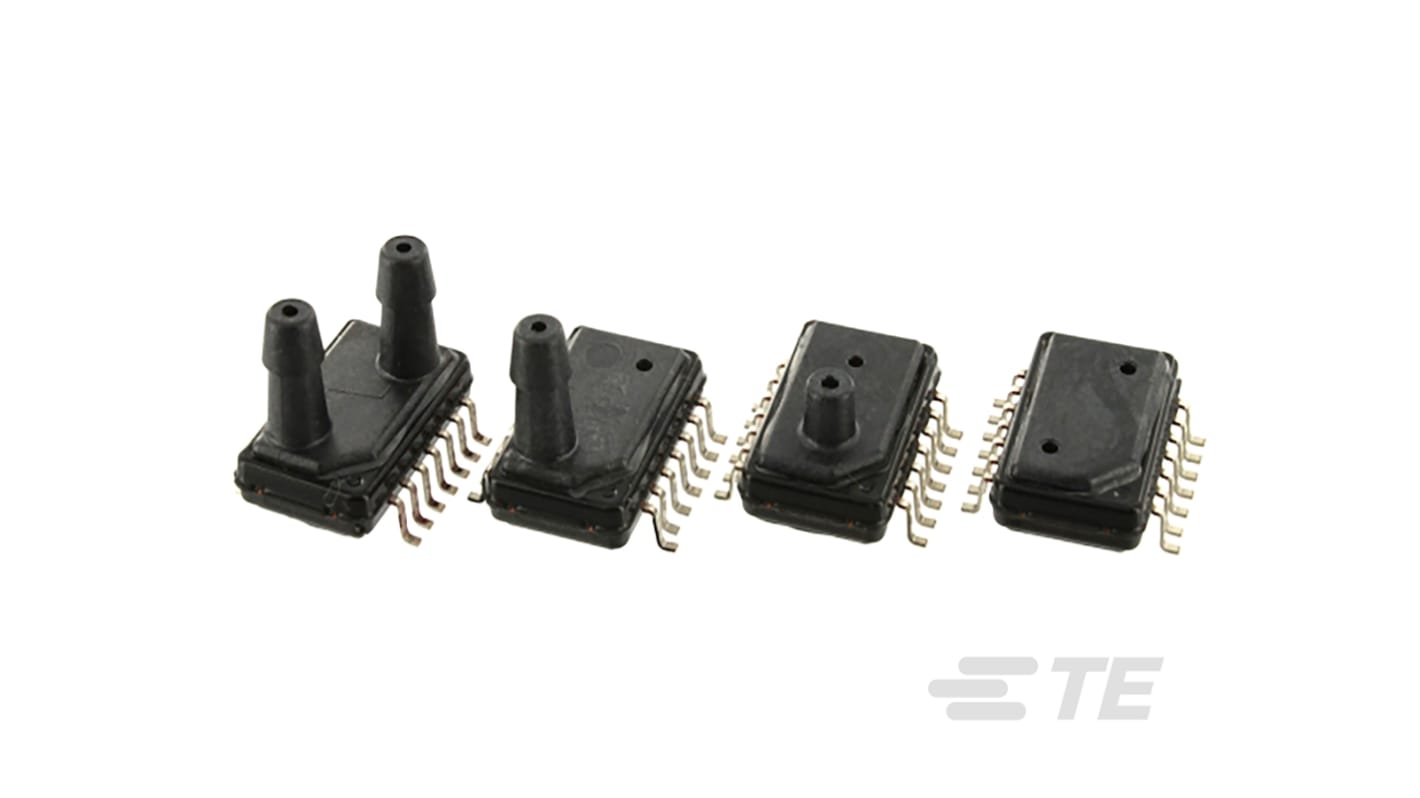

TE Connectivity Gauge Pressure Sensor, 5psi Operating Max, Surface Mount, 14-Pin, 60psi Overload Max, SOIC
- RS Stock No.:
- 187-9314
- Mfr. Part No.:
- 5525DSO-SB005GS
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 187-9314
- Mfr. Part No.:
- 5525DSO-SB005GS
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Sensor Type | Gauge Pressure Sensors | |
| Maximum Overload Pressure | 60psi | |
| Mounting Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Dimensions | 12.5 x 7.9 x 3.4mm | |
| Maximum Operating Pressure | 5psi | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Sensor Type Gauge Pressure Sensors | ||
Maximum Overload Pressure 60psi | ||
Mounting Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 14 | ||
Dimensions 12.5 x 7.9 x 3.4mm | ||
Maximum Operating Pressure 5psi | ||
Maximum Operating Supply Voltage 3.6 V | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- CN
Integrated Digital Pressure Sensor (24-bit ∆Σ ADC)
Fast Conversion Down to 1 ms
Low Power, 1 μA (standby < 0.15 μA)
Supply Voltage: 1.8 to 3.6V
Pressure Range: 1 to 30 PSI
I2C and SPI Interface
Small Outline IC Package
Barbed Pressure Ports
Low Power, High Resolution ADC
Digital Pressure and Temperature Outputs
Applications
Factory Automation
Altitude and Airspeed Measurements
Medical Instruments
Leak Detection
Fast Conversion Down to 1 ms
Low Power, 1 μA (standby < 0.15 μA)
Supply Voltage: 1.8 to 3.6V
Pressure Range: 1 to 30 PSI
I2C and SPI Interface
Small Outline IC Package
Barbed Pressure Ports
Low Power, High Resolution ADC
Digital Pressure and Temperature Outputs
Applications
Factory Automation
Altitude and Airspeed Measurements
Medical Instruments
Leak Detection
