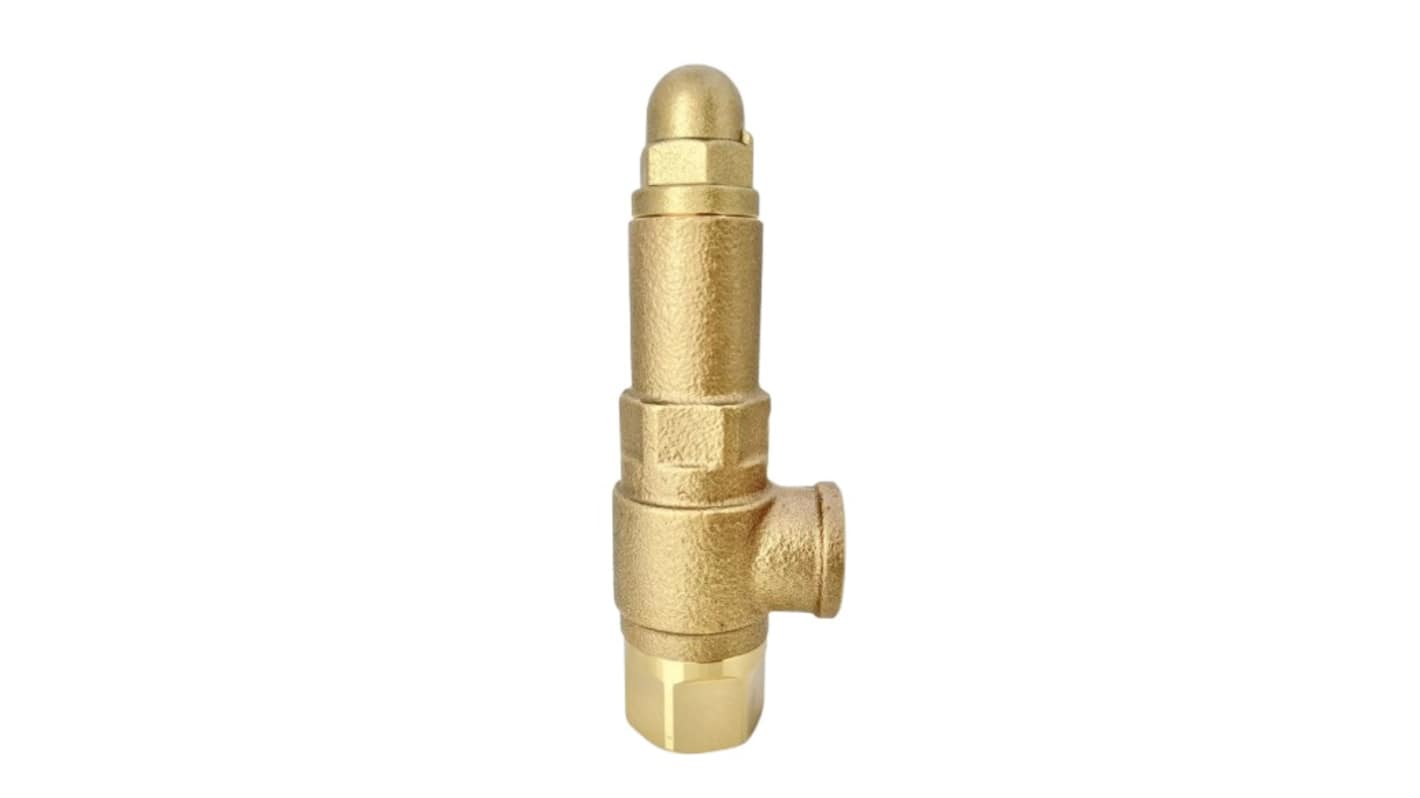

RS PRO 19.6bar Pressure Relief Valve With 1 in Connection and a 25mm Exhaust Port
- RS Stock No.:
- 336-758
- Brand:
- RS PRO
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 336-758
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connection | 1 in | |
| Maximum Set Pressure | 19.6bar | |
| Maximum Temperature | 185°C | |
| For Use With | Noncorrosive Gas, Air, Steam | |
| Exhaust Port Size | 25mm | |
| Body Material | Bronze | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Connection 1 in | ||
Maximum Set Pressure 19.6bar | ||
Maximum Temperature 185°C | ||
For Use With Noncorrosive Gas, Air, Steam | ||
Exhaust Port Size 25mm | ||
Body Material Bronze | ||
- COO (Country of Origin):
- TW
RS PRO Safety Valve, 1 in Connection
The RS PRO Safety Valve is designed to provide reliable pressure relief for boilers, pressure vessels, steam generators, and gas pipelines. It is ideal for use with non-corrosive fluids such as natural gas, air, and steam, ensuring safety and efficiency in various industrial applications.
Features and Benefits
Sealing spring and lever spring type: Ensures effective pressure relief and safety
Material: Bronze, stainless steel, cast iron: Offers durability and resistance to corrosion
Working temperature range: -45℃ to 185℃: Suitable for a wide range of environments
Working pressure: 2 to 20 kgf/cm²: Accommodates various pressure requirements
Connection size: 1 in: Easy integration into existing systems
Exhaust port size: 25 mm: Facilitates efficient discharge
Material: Bronze, stainless steel, cast iron: Offers durability and resistance to corrosion
Working temperature range: -45℃ to 185℃: Suitable for a wide range of environments
Working pressure: 2 to 20 kgf/cm²: Accommodates various pressure requirements
Connection size: 1 in: Easy integration into existing systems
Exhaust port size: 25 mm: Facilitates efficient discharge
Applications
Boilers
Pressure vessels
Steam generators
Gas pipelines
Pressure vessels
Steam generators
Gas pipelines
Additional Information
For use with non-corrosive gas, air, and steam
Maximum set pressure: 20 kgf/cm²
Maximum set pressure: 20 kgf/cm²
