RS PRO 19.6bar Pressure Relief Valve With 1/2 in Connection and a 13mm Exhaust Port
- RS Stock No.:
- 336-755
- Brand:
- RS PRO
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 336-755
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Connection | 1/2 in | |
| Maximum Set Pressure | 19.6bar | |
| Maximum Temperature | 185°C | |
| For Use With | Noncorrosive Gas, Air, Steam | |
| Exhaust Port Size | 13mm | |
| Body Material | Bronze | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Connection 1/2 in | ||
Maximum Set Pressure 19.6bar | ||
Maximum Temperature 185°C | ||
For Use With Noncorrosive Gas, Air, Steam | ||
Exhaust Port Size 13mm | ||
Body Material Bronze | ||
- COO (Country of Origin):
- TW

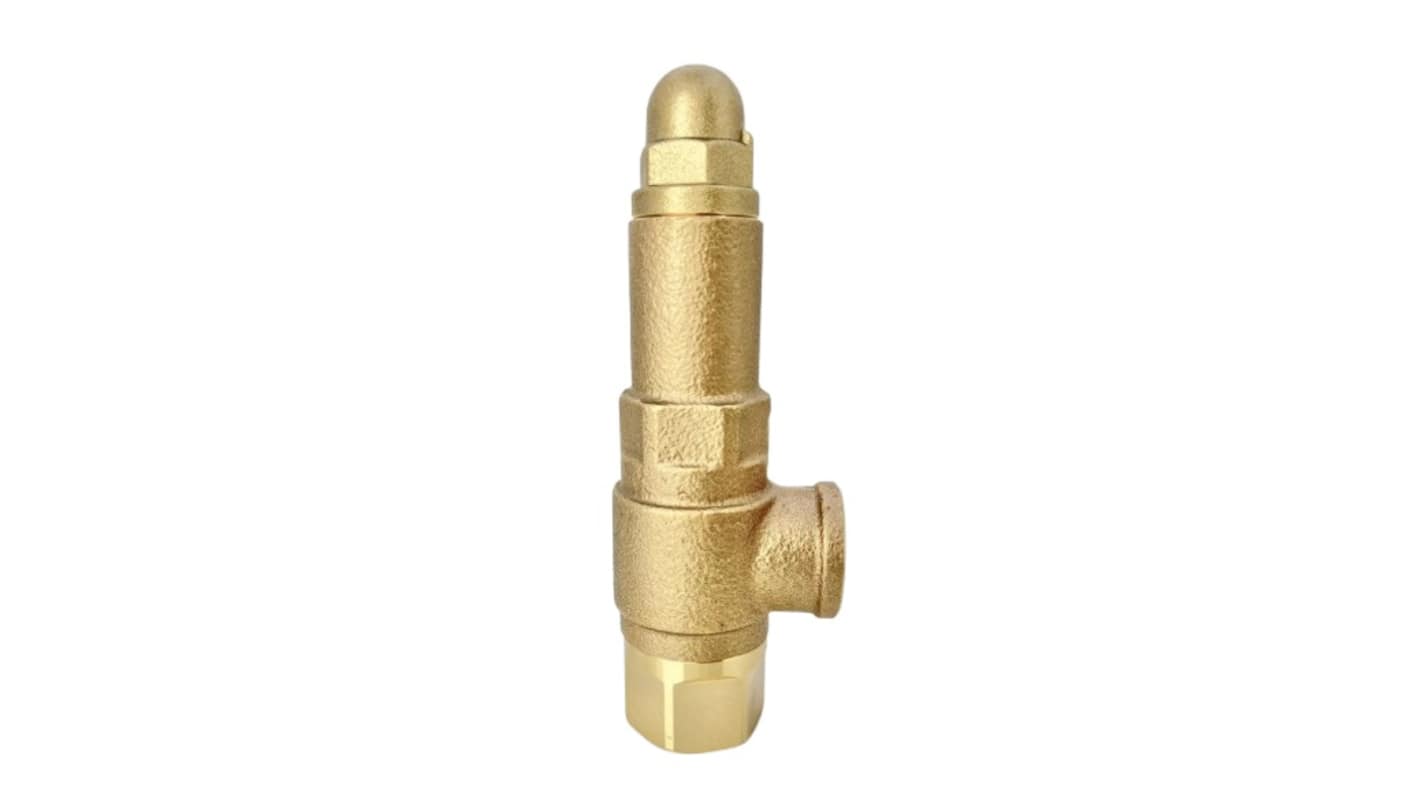

RS PRO Safety Valve, 20 kgf/cm² Maximum Set Pressure
RS PRO Safety Valve is designed to provide reliable pressure relief for boilers, pressure vessels, steam generators, and gas pipelines. It is ideal for use with non-corrosive fluids such as natural gas, air, and steam, ensuring safety and efficiency in various industrial applications.
Features and Benefits
Sealing spring and lever spring type: Ensures effective pressure relief and safety
Material: Bronze, stainless steel, cast iron: Offers durability and resistance to corrosion
Working temperature range: -45℃ to 185℃: Suitable for a wide range of environments
Working pressure: 2 to 20 kgf/cm²: Accommodates various pressure requirements
Material: Bronze, stainless steel, cast iron: Offers durability and resistance to corrosion
Working temperature range: -45℃ to 185℃: Suitable for a wide range of environments
Working pressure: 2 to 20 kgf/cm²: Accommodates various pressure requirements
Applications
Boilers
Pressure vessels
Steam generators
Gas pipelines
Pressure vessels
Steam generators
Gas pipelines
Additional Information
Connection: 1/2 in, thread standard
Exhaust port size: 13 mm
For use with non-corrosive gas, air, steam
Exhaust port size: 13 mm
For use with non-corrosive gas, air, steam
