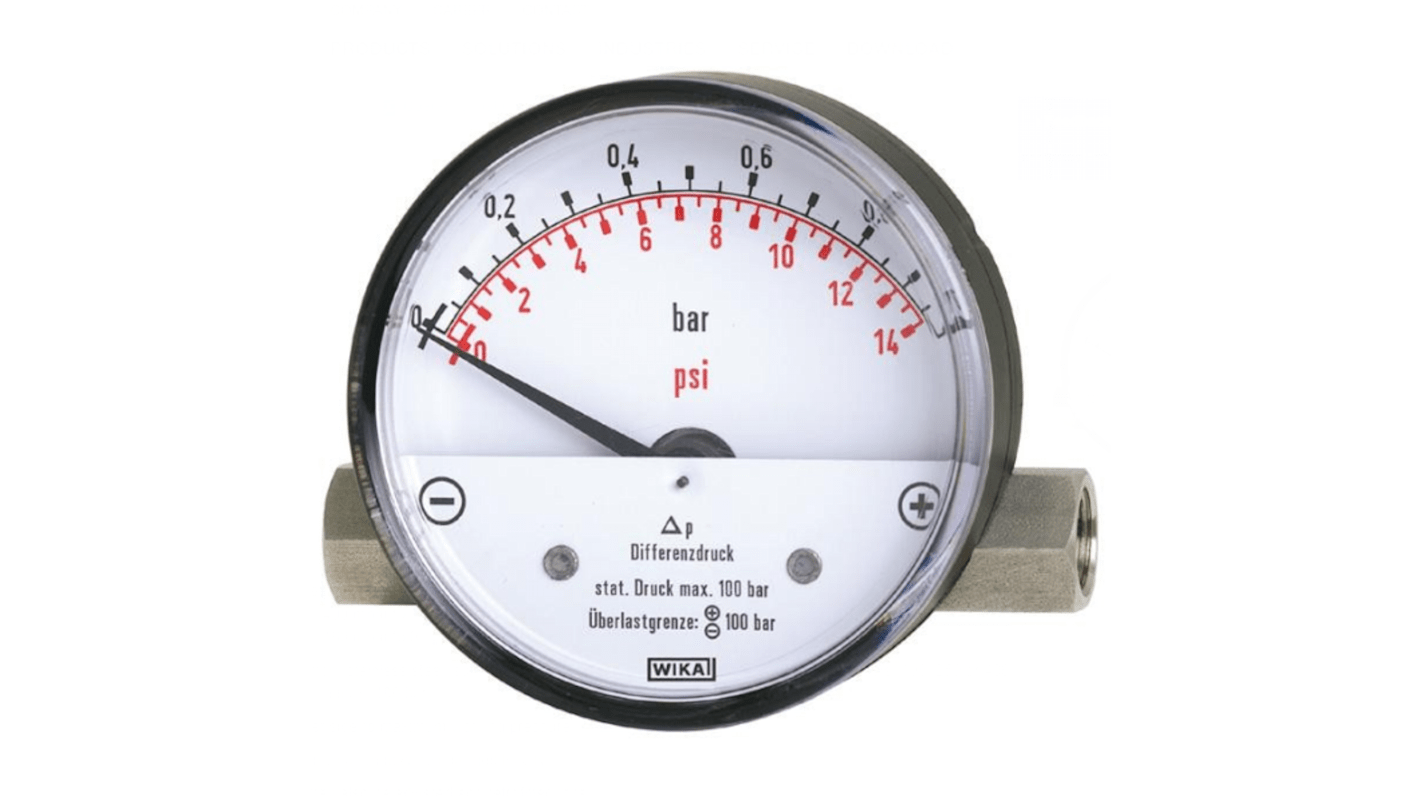

WIKA G 1/4 Process Differential Pressure Gauge, 80 mm, 1 bar
- RS Stock No.:
- 268-5242
- Mfr. Part No.:
- 14406361
- Brand:
- WIKA
Subtotal (1 unit)*
£365.37
(exc. VAT)
£438.44
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £365.37 |
*price indicative
- RS Stock No.:
- 268-5242
- Mfr. Part No.:
- 14406361
- Brand:
- WIKA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Product Type | Differential Pressure Gauge | |
| Maximum Pressure Measurement | 1bar | |
| Minimum Pressure Measurement | 0bar | |
| Pressure Connection | 2 x G 1/4 Female | |
| Connection Size | G 1/4 | |
| Accuracy | Model 700.01: 3, Model 700.02: 5% Full Scale Ascending | |
| Connection Type | Process | |
| Series | 700.01 | |
| Case Material | Die Cast Aluminium | |
| Dial Size | 80mm | |
| Connection Location | Side Entry | |
| Dial Colour | Black | |
| Standards/Approvals | EU | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Product Type Differential Pressure Gauge | ||
Maximum Pressure Measurement 1bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Connection 2 x G 1/4 Female | ||
Connection Size G 1/4 | ||
Accuracy Model 700.01: 3, Model 700.02: 5% Full Scale Ascending | ||
Connection Type Process | ||
Series 700.01 | ||
Case Material Die Cast Aluminium | ||
Dial Size 80mm | ||
Connection Location Side Entry | ||
Dial Colour Black | ||
Standards/Approvals EU | ||
The WIKA Differential pressure gauge is particularly intended for the monitoring of differential pressures even in the case of high working pressures in gas and air preparation and supply systems. Its modular design with a measuring system of stainless steel enables an optimal price/performance ratio.
High overload capacity
Compact system case
