Bourdon G 1/2 Pressure Gauge, 100 mm, 16 bar

View all Pressure Gauges

Subtotal (1 unit)*

£130.09

(exc. VAT)

£156.11

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£130.09

*price indicative

RS Stock No.:
253-0543
Mfr. Part No.:
MEX5-F31.B24
Brand:
Bourdon
Find similar products by selecting one or more attributes.
Select all

Brand

Bourdon

Maximum Pressure Measurement

16bar

Product Type

Pressure Gauge

Minimum Pressure Measurement

0bar

Connection Size

G 1/2

Series

MEX5 - MEM5 Industrial Pressure Gauges

Dial Colour

White

Connection Location

Back Entry

Dial Size

100mm

Maximum Operating Temperature

200°C

Standards/Approvals

Lloyds Register Approval, Class 1 according to EN 837-1

RoHS Status: Exempt

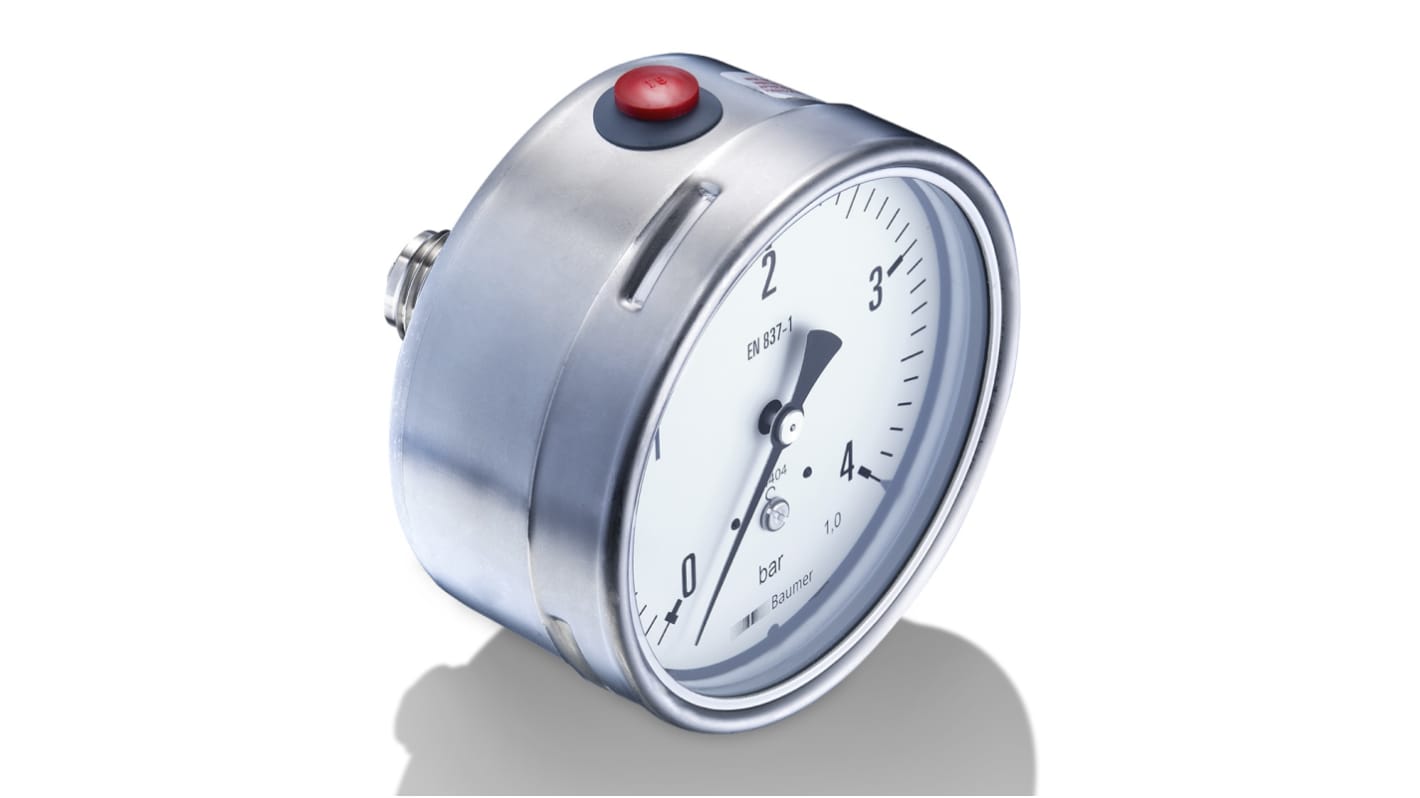

The Bourdon MEX5 is stainless steel pressure gauge has nominal size of Ø 100 with G1/2 connection and protected with IP65 rating.

Class 1 according to EN 837-1

Wetted parts Stainless steel (MEX) or Monel (MEM)

Lloyds Register Approval

Option liquid-filled for applications with pulsations or vibrations

Option case material 1.4404 (316L) for aggressive atmosphere
