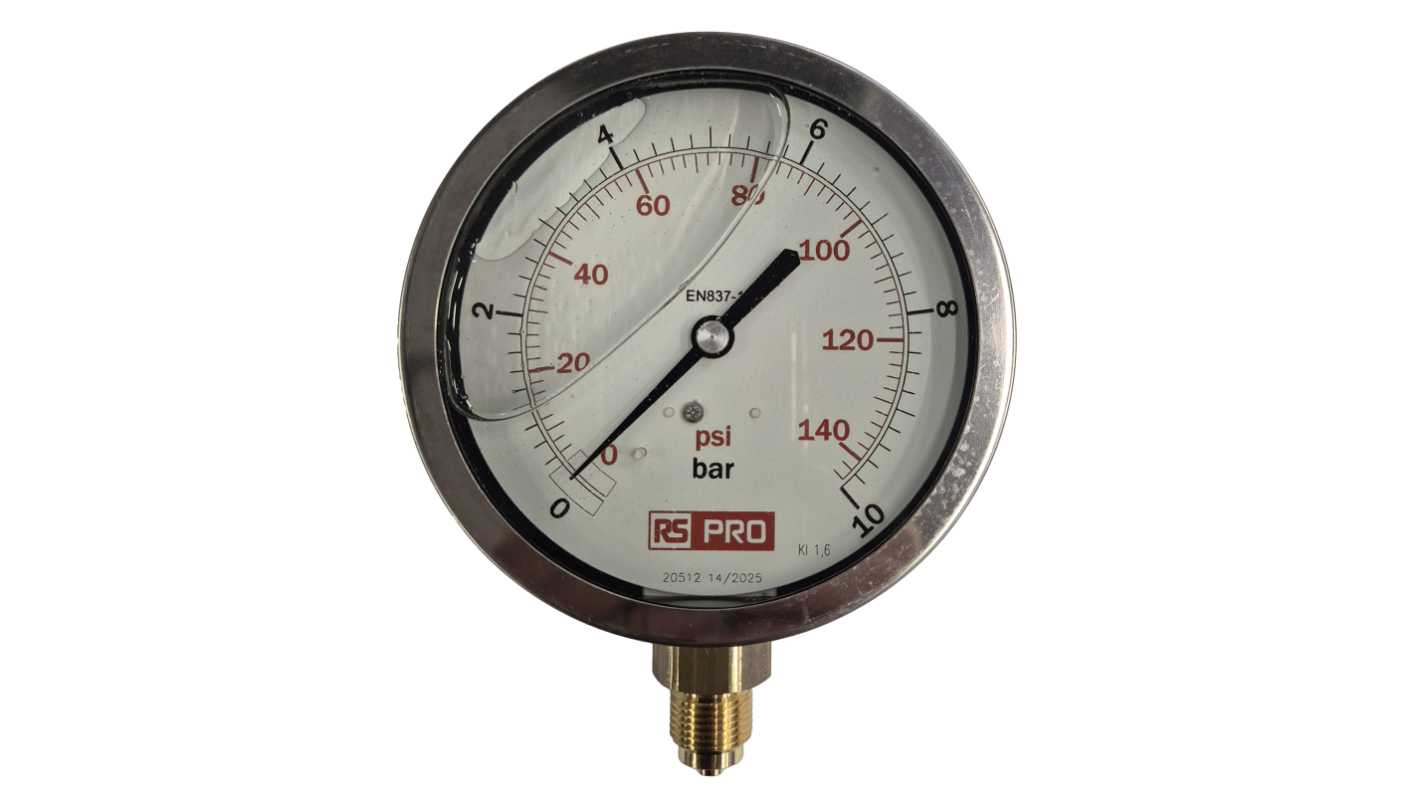

RS PRO BSP 3/8 Analogue Pressure Gauge 10bar Bottom Entry 100mm Outside Diameter
- RS Stock No.:
- 152-289
- Brand:
- RS PRO
Subtotal (1 unit)*
£104.30
(exc. VAT)
£125.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 11 unit(s) shipping from 27 October 2025
- Plus 14 unit(s) shipping from 05 November 2025
- Plus 12 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £104.30 |
*price indicative
- RS Stock No.:
- 152-289
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Pressure Measurement | 10bar | |
| Minimum Pressure Measurement | 0bar | |
| Mounting Type | Bottom Entry | |
| Display Type | Analogue | |
| Connection Size | BSP 3/8 | |
| Gauge Outside Diameter | 100mm | |
| Case Material | Stainless Steel | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +65°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Pressure Measurement 10bar | ||
Minimum Pressure Measurement 0bar | ||
Mounting Type Bottom Entry | ||
Display Type Analogue | ||
Connection Size BSP 3/8 | ||
Gauge Outside Diameter 100mm | ||
Case Material Stainless Steel | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +65°C | ||
- COO (Country of Origin):
- IT
RS PRO Pressure Gauge - BSP 3/ 8 in
Experience durability and clarity with the all-new RS PRO pressure gauge range. These high-quality gauges are equipped with a BSP 3/8 in. male connection, ensuring a secure and leak-proof connection for hassle-free installation. The indicator has a glycerine filling that effectively dampens vibrations and offers stable readings even during high-vibration applications. Also, the bottom entry connection makes it ideal for installations where space is at a premium, offering versatile mounting options.
Why Would You Choose These Pressure Gauges?
The tempered glass window guarantees durability and clarity, protecting the gauge from impacts while ensuring it remains readable. The robust stainless-steel case offers excellent corrosion resistance, making it suitable for harsh environments. The gauge's 100 mm outside diameter also provides a large, easy-to-read dial for quick and accurate pressure readings.
Features and Benefits
- BSP 3/8 in. Male
- Glycerine filled
- Bottom entry connection
- Tempered glass window
- Stainless steel case
- Gauge Outside Diameter: 100 mm
- AISI 316L stainless steel socket and bourdon tube
- Various pressure variants available
- Built-in compliance with the construction and safety S1 specifications of standard EN 837-2
- IP67
Applications
- Chemical and petrochemical industries
- Conventional power plants
