Fluke -13 psi to 600 psi Pressure Calibrator, RSCAL
- RS Stock No.:
- 533-920
- Mfr. Part No.:
- FLK-729PRO 4M
- Brand:
- Fluke
Subtotal (1 unit)*
£13,391.00
(exc. VAT)
£16,069.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13,391.00 |
*price indicative
- RS Stock No.:
- 533-920
- Mfr. Part No.:
- FLK-729PRO 4M
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Pressure Calibrator | |
| Battery Type | Rechargeable Lithium-ion | |
| Maximum Pressure Measurement | 600psi | |
| Accuracy | 0.01 % | |
| Minimum Pressure Measurement | -13psi | |
| Resolution | 0.0001 psi psi | |
| Pressure Port Type | Reference | |
| Data Logging | Yes | |
| Display Type | Graphic Colour | |
| Current Loop Measurement | Yes | |
| Leak Testing | Yes | |
| Power Source | Lithium-ion Battery | |
| Minimum Operating Temperature | -10°C | |
| Weight | 4.9kg | |
| Maximum Operating Temperature | 50°C | |
| Length | 100mm | |
| Height | 290mm | |
| Width | 215mm | |
| Standards/Approvals | UN 38.3, IEC 62133, General IEC 610101 | |
| Hazardous Area Certification | IEC 62133 | |
| Plug Type | USB | |
| Calibrated | RSCAL | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Pressure Calibrator | ||
Battery Type Rechargeable Lithium-ion | ||
Maximum Pressure Measurement 600psi | ||
Accuracy 0.01 % | ||
Minimum Pressure Measurement -13psi | ||
Resolution 0.0001 psi psi | ||
Pressure Port Type Reference | ||
Data Logging Yes | ||
Display Type Graphic Colour | ||
Current Loop Measurement Yes | ||
Leak Testing Yes | ||
Power Source Lithium-ion Battery | ||
Minimum Operating Temperature -10°C | ||
Weight 4.9kg | ||
Maximum Operating Temperature 50°C | ||
Length 100mm | ||
Height 290mm | ||
Width 215mm | ||
Standards/Approvals UN 38.3, IEC 62133, General IEC 610101 | ||
Hazardous Area Certification IEC 62133 | ||
Plug Type USB | ||
Calibrated RSCAL | ||
- COO (Country of Origin):
- CN
Fluke Pressure Calibrator, 600 psi Maximum Pressure Measurement, 0.01% Accuracy - FLK-729PRO 4M

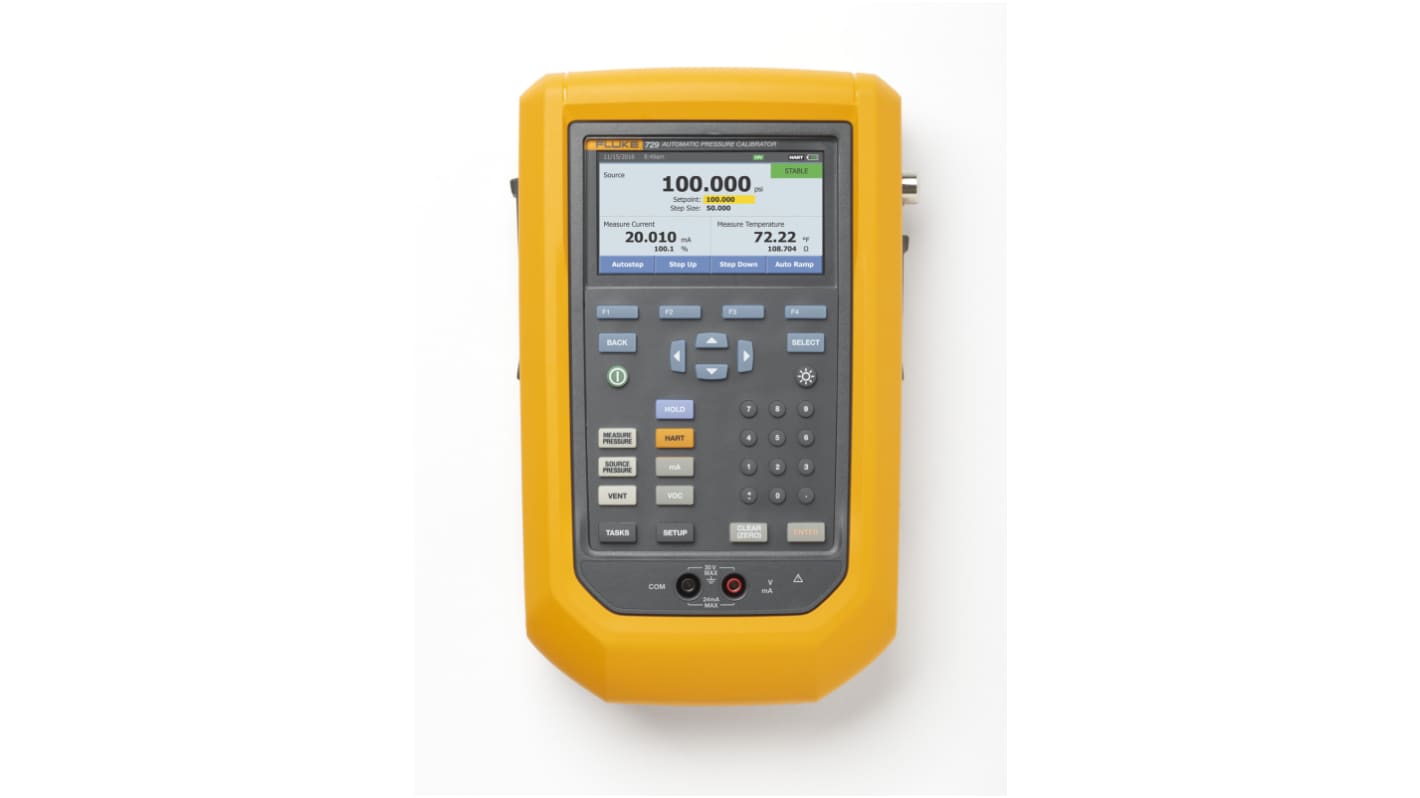

This pressure calibrator is a handheld instrument designed to measure, generate and verify pressure in industrial and field environments. It offers a colour graphic display and integrated data logging to support on-site calibration tasks. The unit operates from a rechargeable lithium‑ion battery, enabling mobile use where mains power is unavailable, and includes a reference pressure port for connections to test rigs and instruments.
Features and Benefits:
• Accuracy 0.01% enables precise calibration and verification
• Pressure range to 600 psi supports high-pressure system checks
• Resolution 0.0001 psi allows detection of very small pressure changes
• Data logging records measurements for traceable test reports
• Rechargeable lithium‑ion battery provides extended field operation
• Leak testing capability helps identify system integrity issues quickly
• Pressure range to 600 psi supports high-pressure system checks
• Resolution 0.0001 psi allows detection of very small pressure changes
• Data logging records measurements for traceable test reports
• Rechargeable lithium‑ion battery provides extended field operation
• Leak testing capability helps identify system integrity issues quickly
Applications
• Suitable for calibrating pneumatic actuators and valves
• Used for commissioning high-pressure hydraulic equipment
• Ideal for maintenance of process control pressure transmitters
• Can be used for low-pressure system diagnostics down to -13 psi
• Used with portable test rigs requiring a reference pressure port
• Used for commissioning high-pressure hydraulic equipment
• Ideal for maintenance of process control pressure transmitters
• Can be used for low-pressure system diagnostics down to -13 psi
• Used with portable test rigs requiring a reference pressure port
What environmental temperatures can it operate within?
It functions between -10°C and 50°C, covering typical workshop and outdoor conditions.
How is electrical current measurement handled?
It includes current loop measurement capability for 4-20 mA transmitter checks and loop diagnostics.
What certifications relate to battery safety and transport?
The battery meets UN 38.3 and IEC 62133 standards, indicating compliance with transport and cell safety tests.
What interface options are available for data transfer?
The unit uses a USB plug for data export and connectivity to PCs or data management systems.
