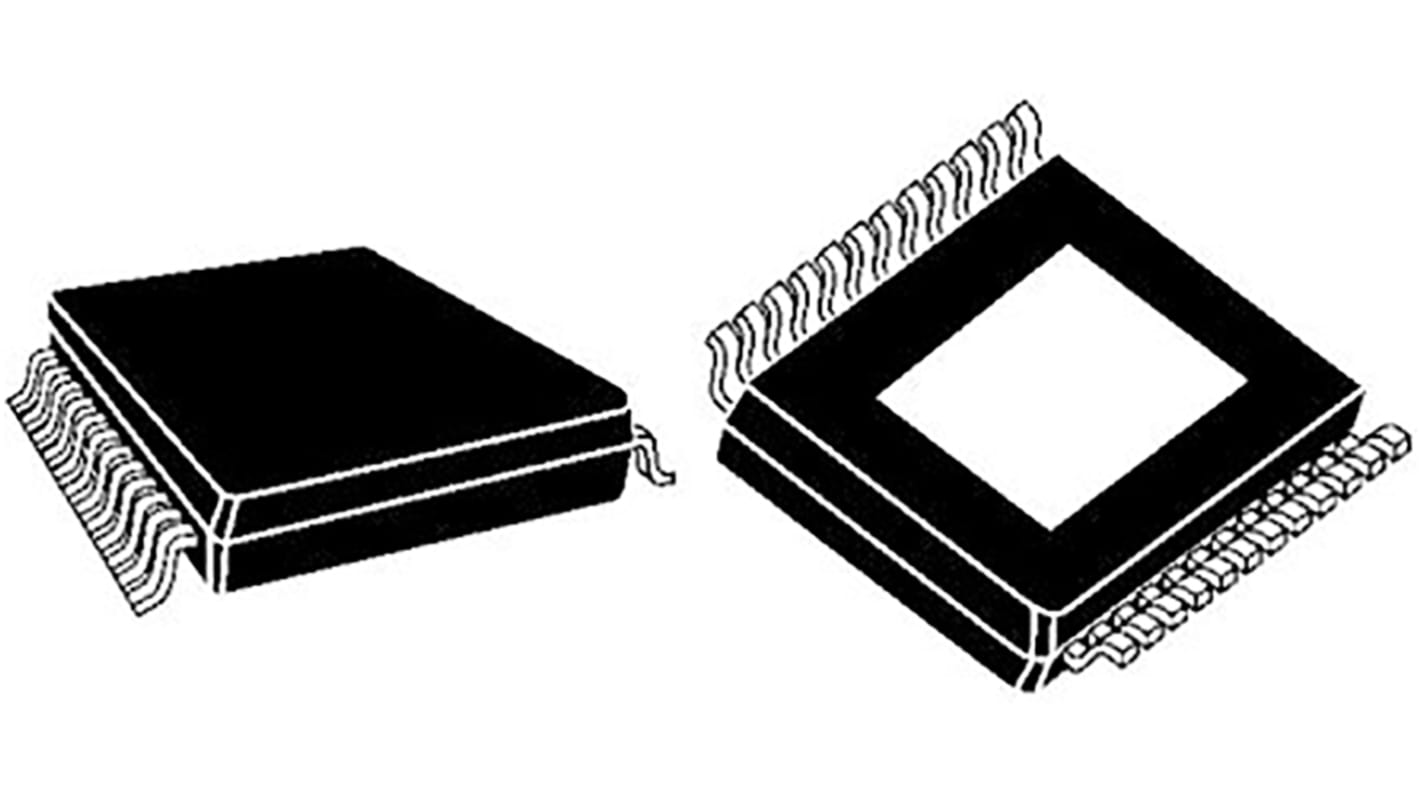

STMicroelectronics VN5050JTR-E High Side 1, High Side Power Switch IC 12-Pin, PowerSSO
- RS Stock No.:
- 917-2785
- Mfr. Part No.:
- VN5050JTR-E
- Brand:
- STMicroelectronics
Subtotal (1 pack of 10 units)*
£8.88
(exc. VAT)
£10.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,370 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.888 | £8.88 |
*price indicative
- RS Stock No.:
- 917-2785
- Mfr. Part No.:
- VN5050JTR-E
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 100mΩ | |
| Number of Outputs | 1 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 4.5V | |
| Package Type | PowerSSO | |
| Maximum Supply Voltage | 36V | |
| Pin Count | 12 | |
| Maximum Operating Temperature | 150°C | |
| Operating Current | 19A | |
| Minimum Operating Temperature | -40°C | |
| Height | 1.65mm | |
| Length | 5mm | |
| Standards/Approvals | 2002/95/EC European Directive | |
| Width | 4 mm | |
| Series | VIPower | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 100mΩ | ||
Number of Outputs 1 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage 4.5V | ||
Package Type PowerSSO | ||
Maximum Supply Voltage 36V | ||
Pin Count 12 | ||
Maximum Operating Temperature 150°C | ||
Operating Current 19A | ||
Minimum Operating Temperature -40°C | ||
Height 1.65mm | ||
Length 5mm | ||
Standards/Approvals 2002/95/EC European Directive | ||
Width 4 mm | ||
Series VIPower | ||
Automotive Standard No | ||
Power ICs, High-Side Power Switches, STMicroelectronics
High-side switches can safely drive high currents in resistive, inductive and capacitive grounded loads. Designed to work in the harsh automotive environment they requires both robust, low on-resistance power switch and accurate analogue circuitry for diagnostic, protection and control functions.
Intelligent Power Switches, STMicroelectronics
