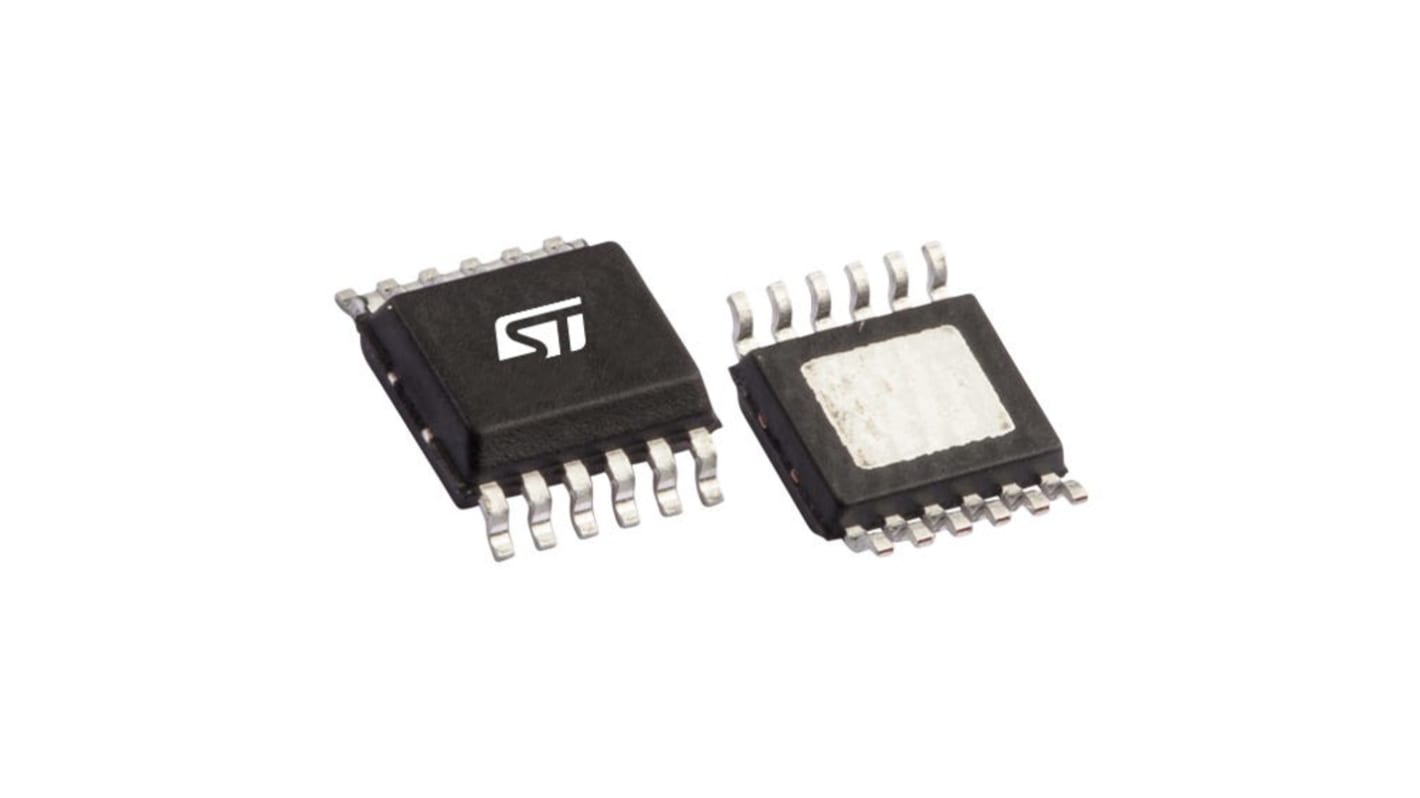

STMicroelectronics VNI2140JTR High Side 8, High Side Power Switch IC 12-Pin, PowerSSO-12

View all Power Switch ICs
Bulk discount available
View bulk pricing options

Subtotal (1 tape of 2 units)*

£4.86

(exc. VAT)

£5.84

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Tape*
2 - 18£2.43£4.86
20 - 98£1.515£3.03
100 - 198£1.155£2.31
200 +£1.035£2.07

*price indicative

Packaging Options:
RS Stock No.:
151-499
Mfr. Part No.:
VNI2140JTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Power Switch Topology

High Side

Product Type

Power Switch IC

Power Switch Type

High Side

Number of Outputs

2

Number of Inputs

8

Mount Type

Surface

Package Type

PowerSSO-12

Pin Count

12

Maximum Supply Voltage

45V

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Operating Current

1A

Standards/Approvals

RoHS

Height

1mm

Length

8mm

Width

6mm

Automotive Standard

No

COO (Country of Origin):
MA
The STMicroelectronics solid state relay, it is a monolithic device designed using VIPower technology. In overload conditions, channel turns OFF and ON automatically to maintain the junction temperature between TTSD and TR. If the case temperature reaches TCSD, the overloaded channel is turned OFF and restarts only when case temperature decreases down to TCR. In order to avoid high-peak current from the supply, when more than one channel is overloaded the TCSD restart is not simultaneous. Non overloaded channels continue to operate normally.

Shorted load protections

Junction over temperature protection

Case over temperature protection for thermal independence of the channels
