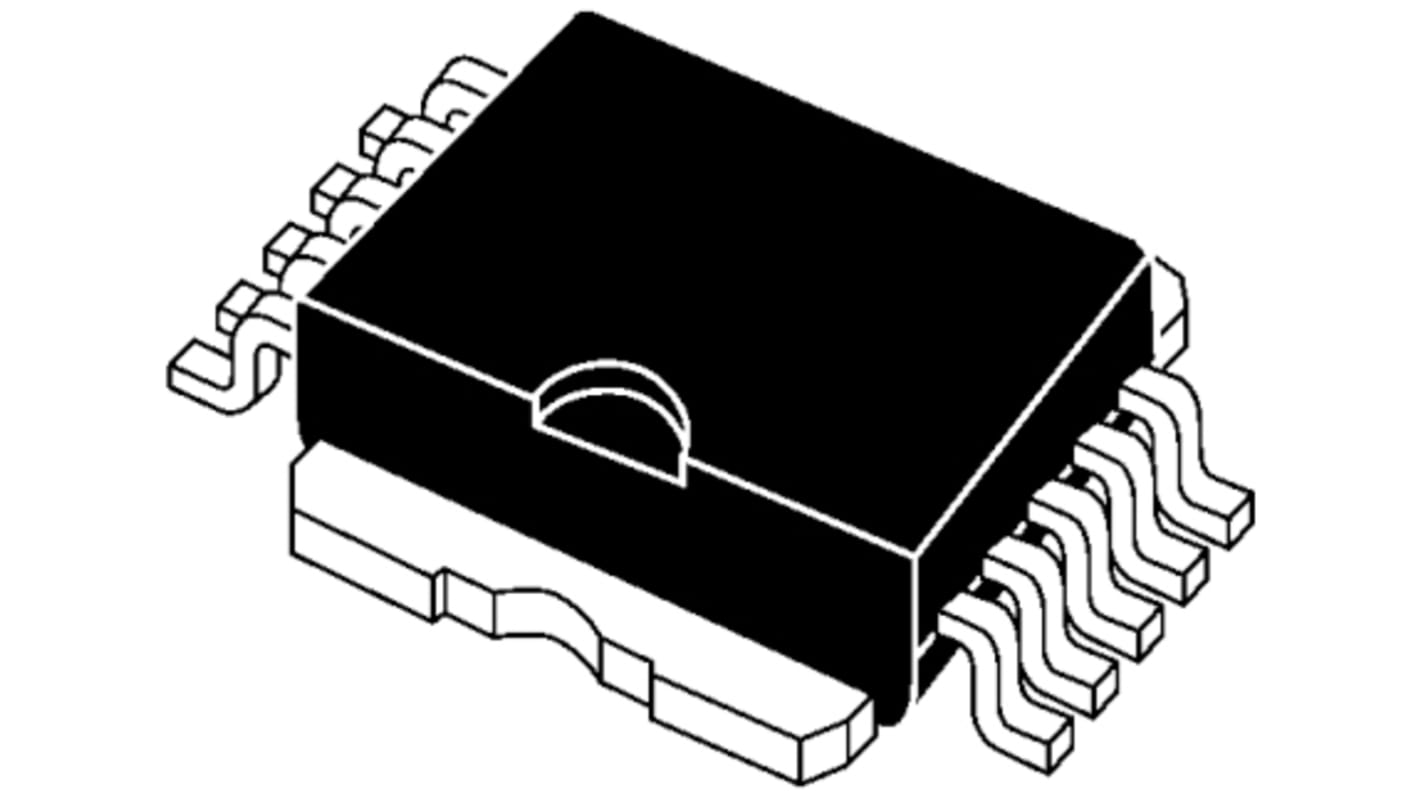

STMicroelectronics VN540SPTR-EHigh Side, Solid State Relay Power Switch IC 10-Pin, PowerSO

RS Stock No.:: 877-3125
Mfr. Part No.:: VN540SPTR-E
Brand:: STMicroelectronics

Technical Reference

STMicroelectronics VN540SPTR-EHigh Side, Solid State Relay Power Switch IC 10-Pin, PowerSO

View this category

Price Each

£8.15

(exc. VAT)

£9.78

(inc. VAT)

Available to back order for despatch 27/01/2025

Units	Per unit
1 +	£8.15

RS Stock No.:: 877-3125
Mfr. Part No.:: VN540SPTR-E
Brand:: STMicroelectronics

COO (Country of Origin):: MY

Attribute	Value
Power Switch Topology	High Side
Power Switch Type	Solid State Relay
Switch On Resistance	90mΩ
Maximum Operating Supply Voltage	36 V
Number of Outputs	1
Maximum Operating Current	2.8A
Mounting Type	Surface Mount
Package Type	PowerSO
Pin Count	10
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-25 °C
Dimensions	7.6 x 9.5 x 3.55mm

STMicroelectronics VN540SPTR-EHigh Side, Solid State Relay Power Switch IC 10-Pin, PowerSO

Technical Reference

Intelligent High Side Power Switches, STMicroelectronics
