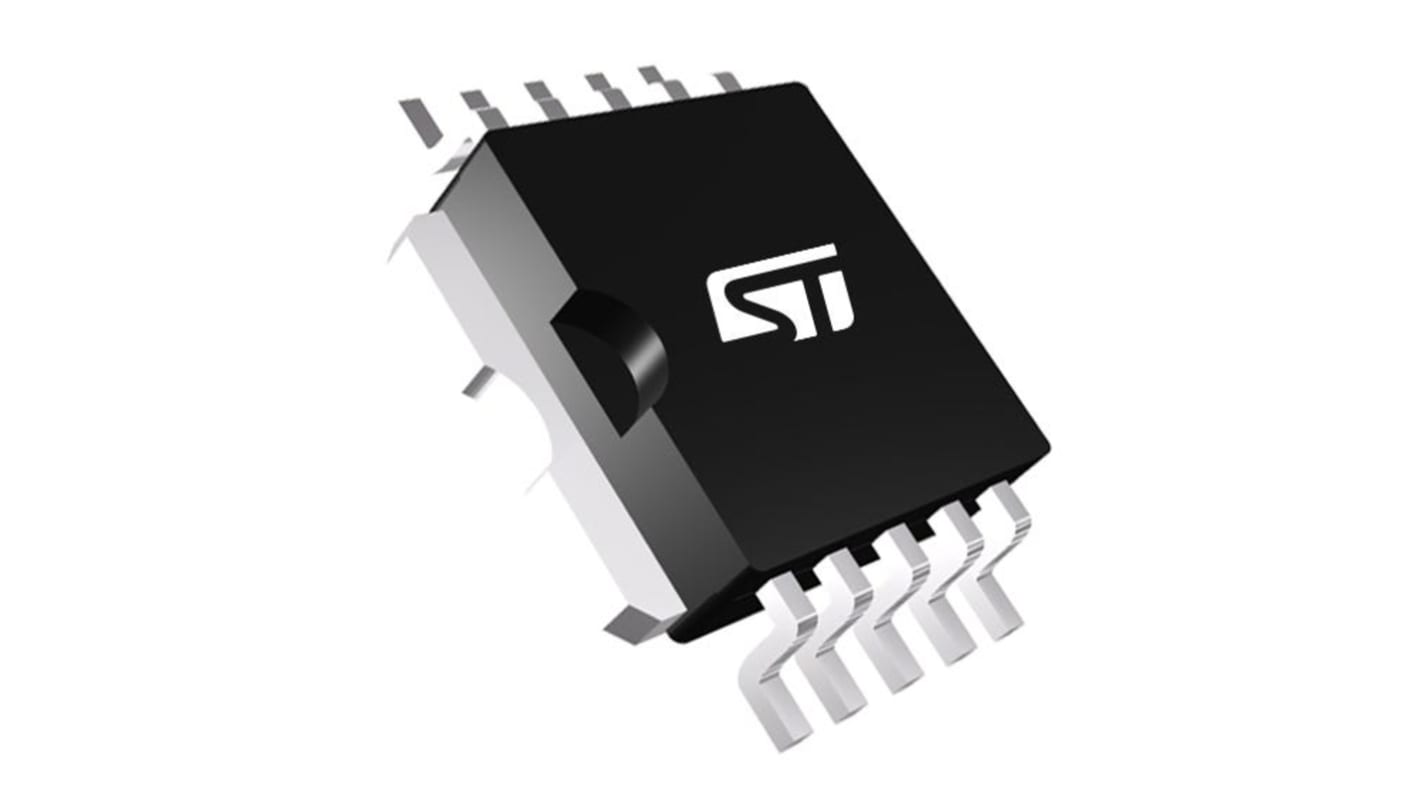

STMicroelectronics VN330SPTR-E High Side, High Side Power Switch IC 10-Pin, PowerSO-10

View all Power Switch ICs

Subtotal (1 reel of 600 units)*

£2,208.00

(exc. VAT)

£2,652.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
600 +£3.68£2,208.00

*price indicative

RS Stock No.:
151-490
Mfr. Part No.:
VN330SPTR-E
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Power Switch Type

High Side

Product Type

Power Switch IC

Power Switch Topology

High Side

Switch On Resistance RdsOn

0.2Ω

Number of Outputs

4

Minimum Supply Voltage

10V

Package Type

PowerSO-10

Maximum Supply Voltage

36V

Pin Count

10

Operating Current

0.7A

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Standards/Approvals

IEC 61131-2

Series

VN330SP-E

Automotive Standard

No

COO (Country of Origin):
MY
The STMicroelectronics solid-state relay, it is monolithic device developed using VIPower technology, intended to drive four independent resistive or inductive loads with one side connected to ground. Active current limitation prevents dropping of the system power supply in case of shorted load. Built-in thermal shutdown protects the chip from over temperature and short-circuit. The open drain diagnostic output indicates over temperature conditions.

Built-in current limiter

Undervoltage shutdown

Open drain diagnostic output
