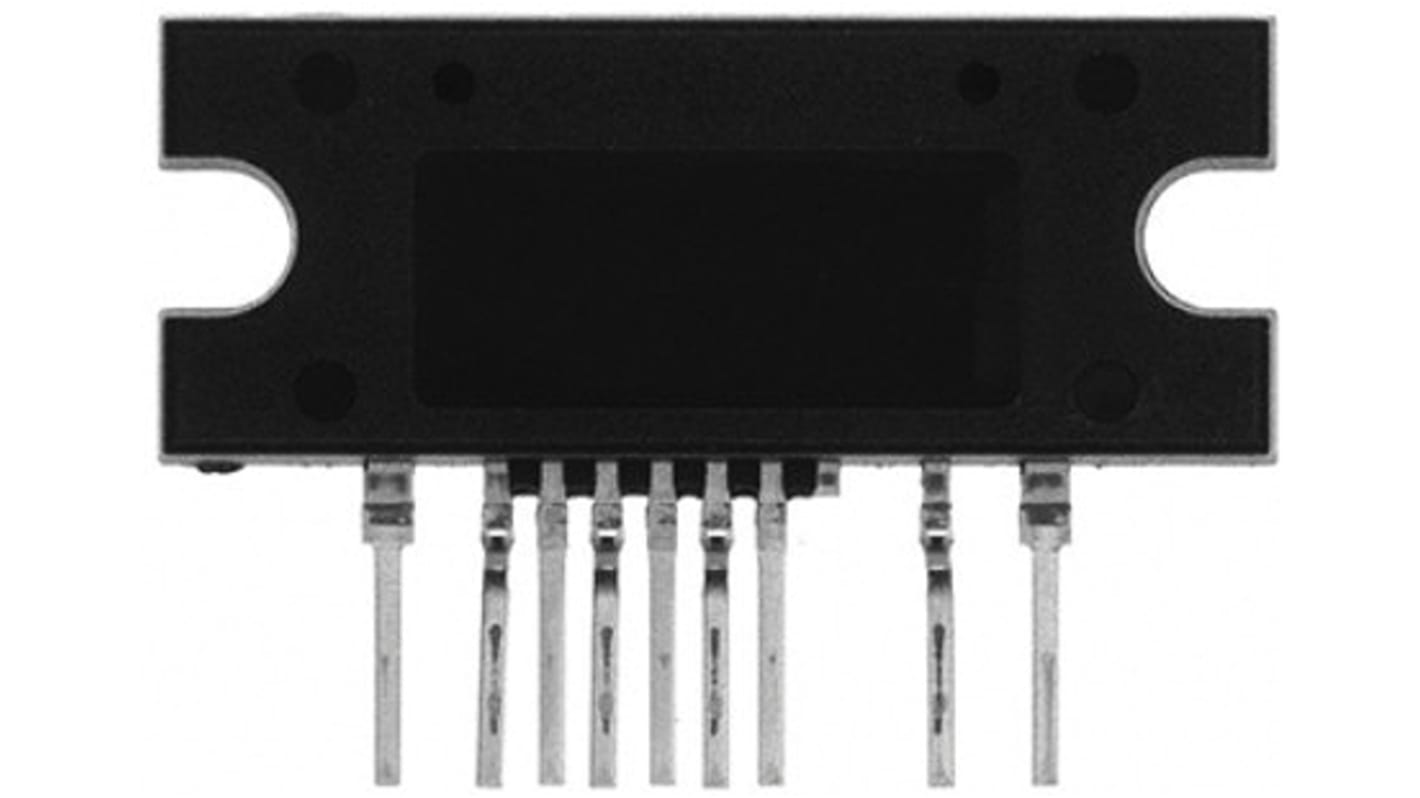

onsemi FSFR1700XS Half Bridge 1, Resonant Converter Power Switch IC 10-Pin, SIP
- RS Stock No.:
- 862-9081
- Mfr. Part No.:
- FSFR1700XS
- Brand:
- onsemi
Subtotal (1 pack of 5 units)*
£7.35
(exc. VAT)
£8.80
(inc. VAT)
Add 35 units to get free delivery
Temporarily out of stock
- 180 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.47 | £7.35 |
*price indicative
- RS Stock No.:
- 862-9081
- Mfr. Part No.:
- FSFR1700XS
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Power Switch Topology | Half Bridge | |
| Power Switch Type | Resonant Converter | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 1.25Ω | |
| Number of Outputs | 1 | |
| Power Rating | 100W | |
| Number of Inputs | 1 | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 0.3V | |
| Package Type | SIP | |
| Maximum Supply Voltage | 400V | |
| Pin Count | 10 | |
| Maximum Operating Temperature | 130°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 26.2mm | |
| Standards/Approvals | No | |
| Width | 10.7 mm | |
| Height | 3.4mm | |
| Automotive Standard | No | |
| Series | FSFR-XS | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Power Switch Topology Half Bridge | ||
Power Switch Type Resonant Converter | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 1.25Ω | ||
Number of Outputs 1 | ||
Power Rating 100W | ||
Number of Inputs 1 | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 0.3V | ||
Package Type SIP | ||
Maximum Supply Voltage 400V | ||
Pin Count 10 | ||
Maximum Operating Temperature 130°C | ||
Minimum Operating Temperature -40°C | ||
Length 26.2mm | ||
Standards/Approvals No | ||
Width 10.7 mm | ||
Height 3.4mm | ||
Automotive Standard No | ||
Series FSFR-XS | ||
LLC Resonant & Asymmetric Half Bridge PWM Controllers, Fairchild Semiconductor
Line Level Control (LLC)
Off-Line & Isolated DC-DC Controllers, Fairchild Semiconductor
The Flyback controllers, Line Level Control (LLC) controllers, and Primary-Side Regulation controllers offer Crucial energy savings to address the needs of Switch Mode Power Supply (SMPS) designs.
All controllers come with integrated soft-start, and protection features from over-voltage, open-feedback, overload, output-short, overcurrent, voltage brownout, and Undervoltage-Lockout.
