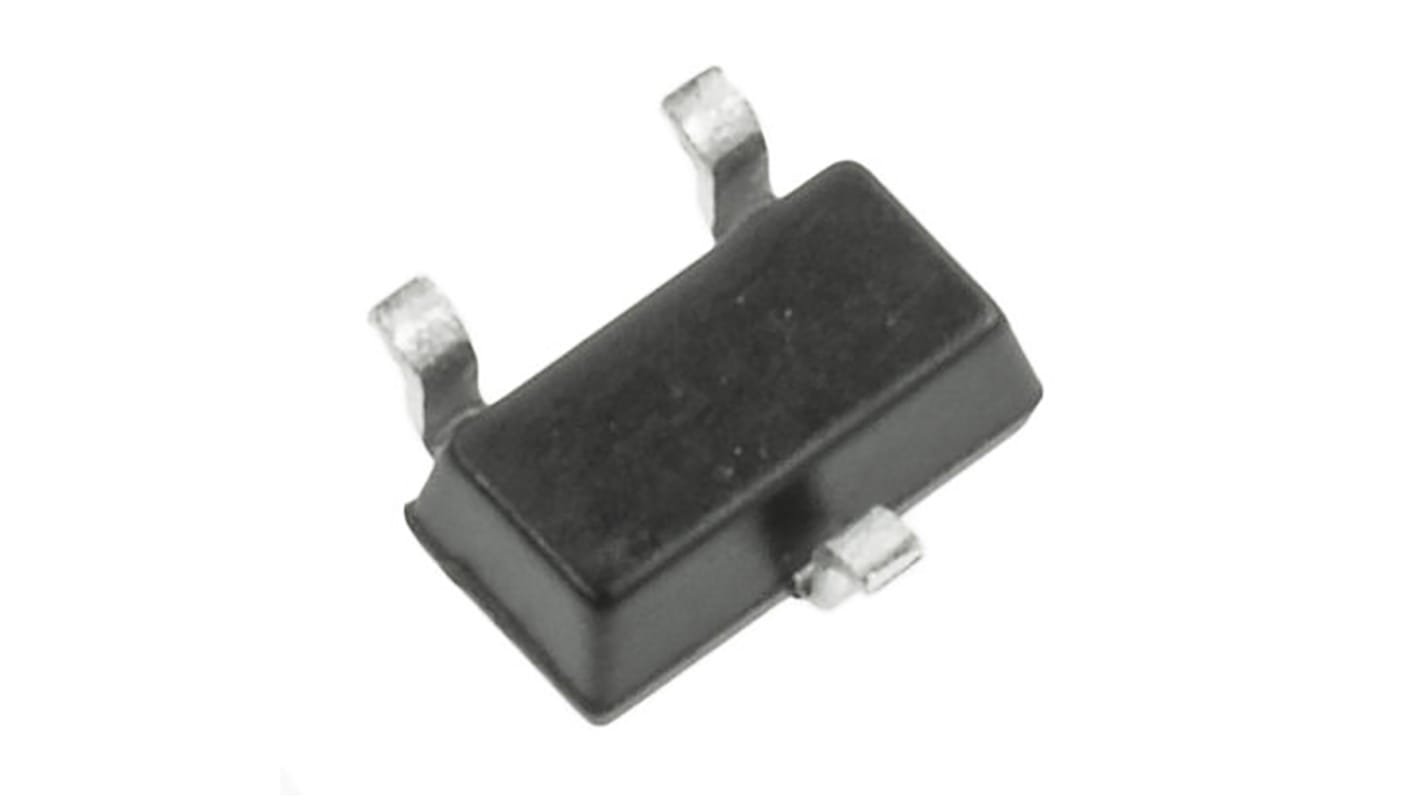

DiodesZetex AP2331W-7 Load Management 1, Load Switch Power Switch IC 3-Pin, SC-59
- RS Stock No.:
- 828-7665
- Mfr. Part No.:
- AP2331W-7
- Brand:
- DiodesZetex
Subtotal (1 pack of 50 units)*
£13.45
(exc. VAT)
£16.15
(inc. VAT)
Add 200 units to get free delivery
In Stock
- 2,050 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £0.269 | £13.45 |
*price indicative
- RS Stock No.:
- 828-7665
- Mfr. Part No.:
- AP2331W-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Power Switch IC | |
| Power Switch Type | Load Switch | |
| Power Switch Topology | Load Management | |
| Switch On Resistance RdsOn | 350mΩ | |
| Number of Outputs | 5 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2.7V | |
| Package Type | SC-59 | |
| Maximum Supply Voltage | 5.2V | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 85°C | |
| Operating Current | 0.2A | |
| Minimum Operating Temperature | -40°C | |
| Height | 1.3mm | |
| Width | 1.7 mm | |
| Length | 3.1mm | |
| Standards/Approvals | No | |
| Series | AP2331 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Power Switch IC | ||
Power Switch Type Load Switch | ||
Power Switch Topology Load Management | ||
Switch On Resistance RdsOn 350mΩ | ||
Number of Outputs 5 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage 2.7V | ||
Package Type SC-59 | ||
Maximum Supply Voltage 5.2V | ||
Pin Count 3 | ||
Maximum Operating Temperature 85°C | ||
Operating Current 0.2A | ||
Minimum Operating Temperature -40°C | ||
Height 1.3mm | ||
Width 1.7 mm | ||
Length 3.1mm | ||
Standards/Approvals No | ||
Series AP2331 | ||
Automotive Standard No | ||
Single Channel USB Switch, Diodes Inc
Protected Switches, Diodes Inc
