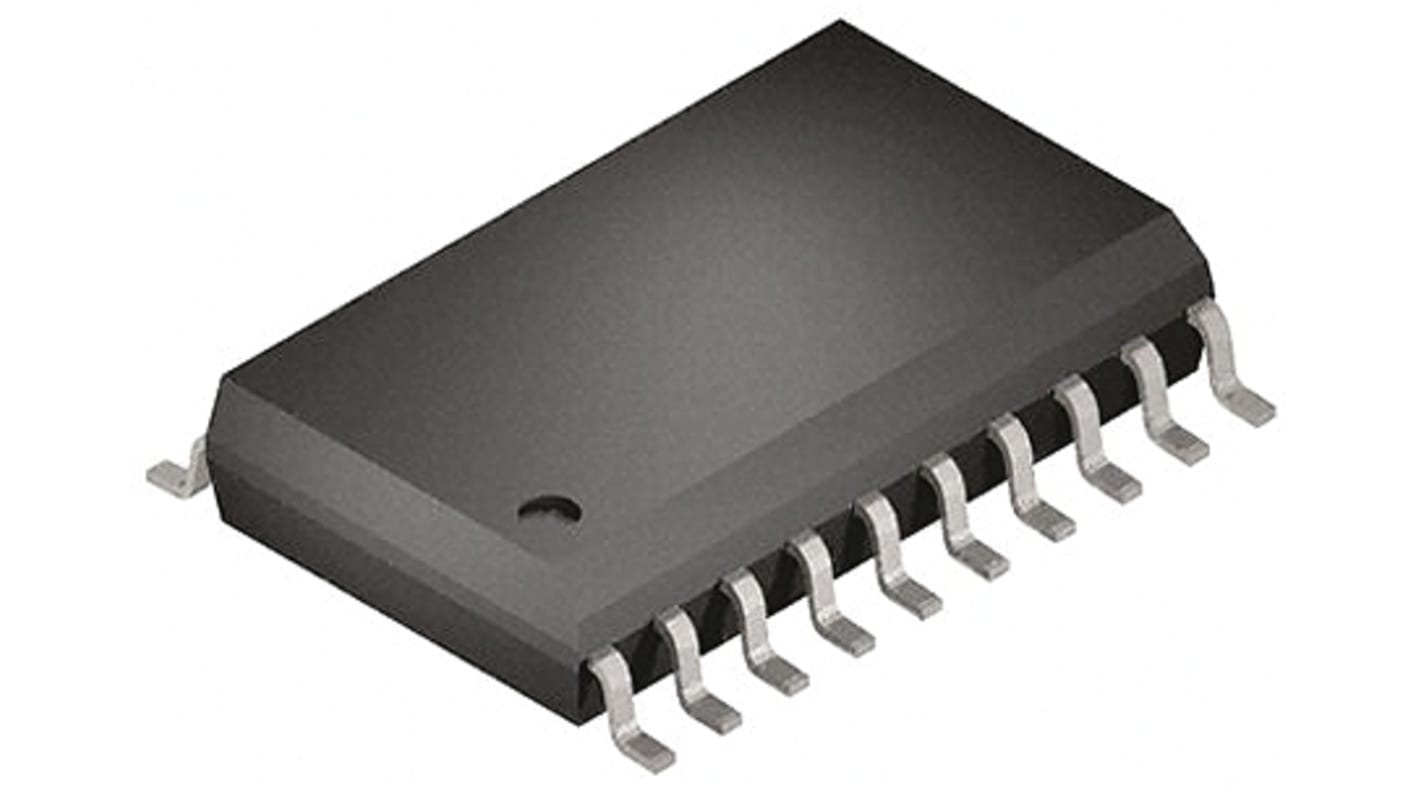

Infineon BTS716GBXUMA1 High Side 4, High Side Power Switch Power Switch IC 20-Pin, DSO
- RS Stock No.:
- 825-9124
- Mfr. Part No.:
- BTS716GBXUMA1
- Brand:
- Infineon
Subtotal (1 pack of 5 units)*
£15.64
(exc. VAT)
£18.77
(inc. VAT)
Add 20 units to get free delivery
In Stock
- 5 unit(s) ready to ship
- Plus 3,465 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.128 | £15.64 |
*price indicative
- RS Stock No.:
- 825-9124
- Mfr. Part No.:
- BTS716GBXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | High Side | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Side Power Switch | |
| Switch On Resistance RdsOn | 280mΩ | |
| Number of Outputs | 4 | |
| Number of Inputs | 4 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 5.5V | |
| Package Type | DSO | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 40V | |
| Operating Current | 2.6A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 3.25mm | |
| Length | 15.9mm | |
| Width | 11 mm | |
| Series | BTS716GB | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology High Side | ||
Product Type Power Switch IC | ||
Power Switch Type High Side Power Switch | ||
Switch On Resistance RdsOn 280mΩ | ||
Number of Outputs 4 | ||
Number of Inputs 4 | ||
Mount Type Surface | ||
Minimum Supply Voltage 5.5V | ||
Package Type DSO | ||
Pin Count 20 | ||
Maximum Supply Voltage 40V | ||
Operating Current 2.6A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 3.25mm | ||
Length 15.9mm | ||
Width 11 mm | ||
Series BTS716GB | ||
Automotive Standard AEC | ||
PROFET Smart High-Side Power Switch, Multi-Channel, Infineon
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection
Electrostatic discharge (ESD) protection
