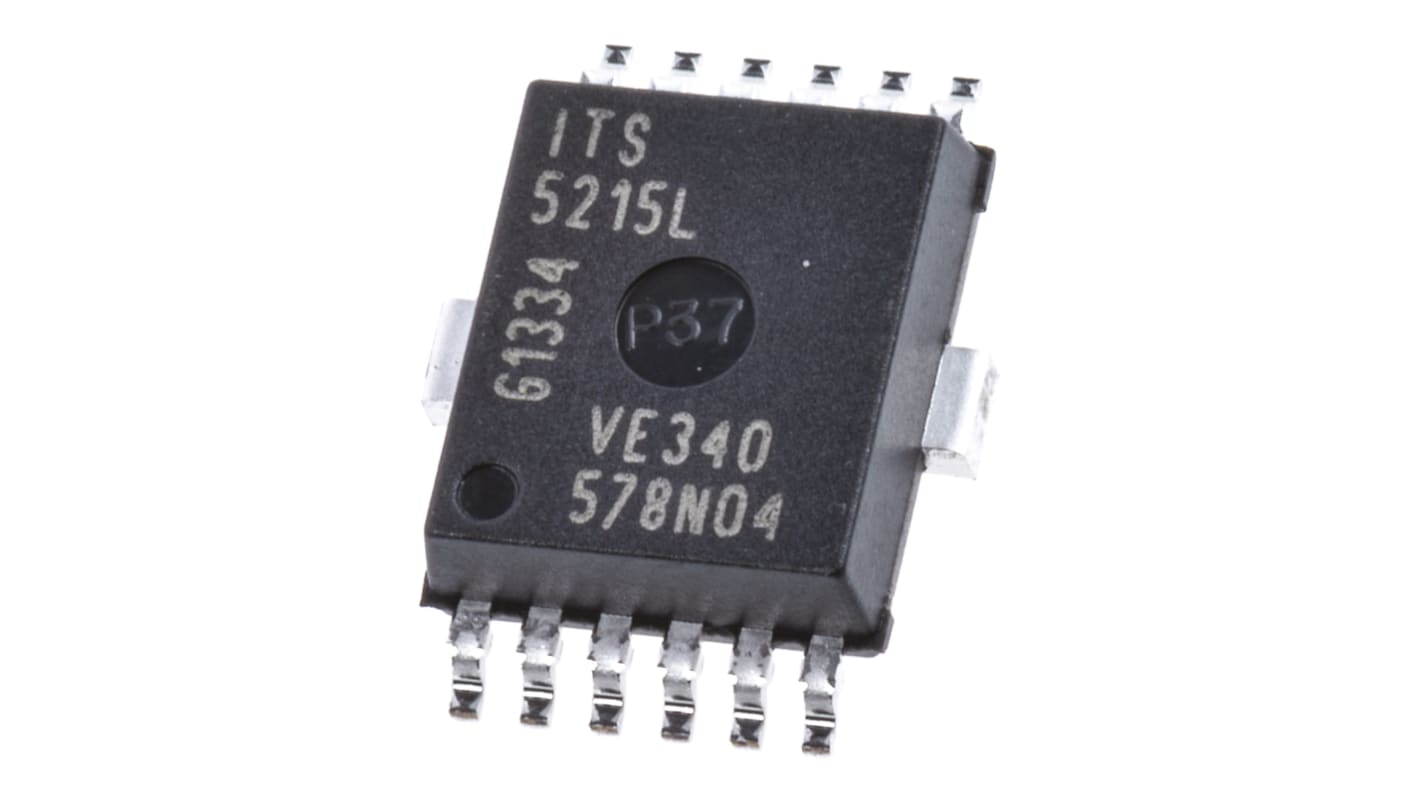

Infineon ITS5215LCUMA1High Side, High Side Switch Power Switch IC 12-Pin, SOIC

RS Stock No.:: 753-3112
Mfr. Part No.:: ITS5215LCUMA1
Brand:: Infineon

Infineon ITS5215LCUMA1High Side, High Side Switch Power Switch IC 12-Pin, SOIC

35 In stock - FREE next working day delivery available

Added

Price Each

£2.30

(exc. VAT)

£2.76

(inc. VAT)

Units	Per unit
1 - 9	£2.30
10 - 24	£2.19
25 - 49	£2.14
50 - 99	£2.00
100 +	£1.86

RS Stock No.:: 753-3112
Mfr. Part No.:: ITS5215LCUMA1
Brand:: Infineon

Technical Reference

Legislation and Compliance

Product Details

PROFET Smart High-Side Power Switch, Multi-Channel, Infineon

Overload protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection
Electrostatic discharge (ESD) protection

Specifications

Attribute	Value
Power Switch Type	High Side Switch
Power Switch Topology	High Side
Switch On Resistance	180mΩ
Maximum Operating Supply Voltage	16 V
Number of Outputs	2
Maximum Operating Current	9.5A
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	12
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-30 °C
Dimensions	6.4 x 7.5 x 2.35mm
