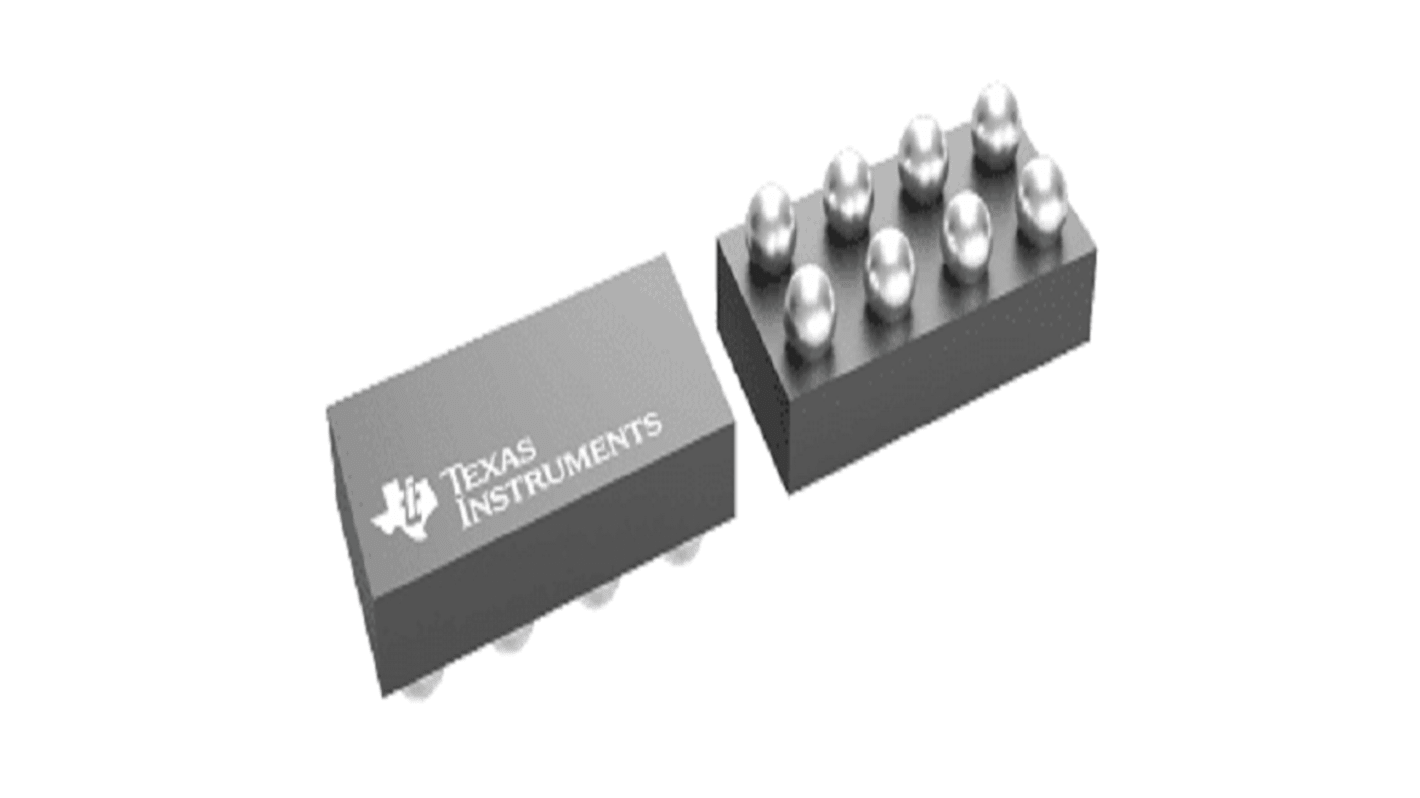

Texas Instruments Low Side/High Side, Load Switch Power Switch IC 8-Pin, DSBGA
- RS Stock No.:
- 268-3650
- Mfr. Part No.:
- TPS22971YZPT
- Brand:
- Texas Instruments
Subtotal (1 reel of 250 units)*
£108.75
(exc. VAT)
£130.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 250 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 250 + | £0.435 | £108.75 |
*price indicative
- RS Stock No.:
- 268-3650
- Mfr. Part No.:
- TPS22971YZPT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Power Switch IC | |
| Power Switch Topology | Low Side/High Side | |
| Power Switch Type | Load Switch | |
| Switch On Resistance RdsOn | 0.0067Ω | |
| Number of Outputs | 1 | |
| Package Type | DSBGA | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 3.6V | |
| Operating Current | 3A | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Power Switch IC | ||
Power Switch Topology Low Side/High Side | ||
Power Switch Type Load Switch | ||
Switch On Resistance RdsOn 0.0067Ω | ||
Number of Outputs 1 | ||
Package Type DSBGA | ||
Pin Count 8 | ||
Maximum Supply Voltage 3.6V | ||
Operating Current 3A | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Texas Instruments Power switch IC is a space saving single channel load switch with controlled and adjustable turn on slew rate and an integrated power good indicator. This device has a fast turn on time to minimize system start up and wait time. The adjustable slew rate can also be reduced to limit inrush current. A power good signal internally monitors the gate threshold and indicates when the switch is fully on. When the switch is disabled a 150 ohm on chip resistor quickly discharges the output to ground and keeps it from floating.
Quick output discharge
The ON pin controls the state of the switch
Asserting the ON pin high enables the switch
interfacing with low voltage signals
ON has a low threshold
