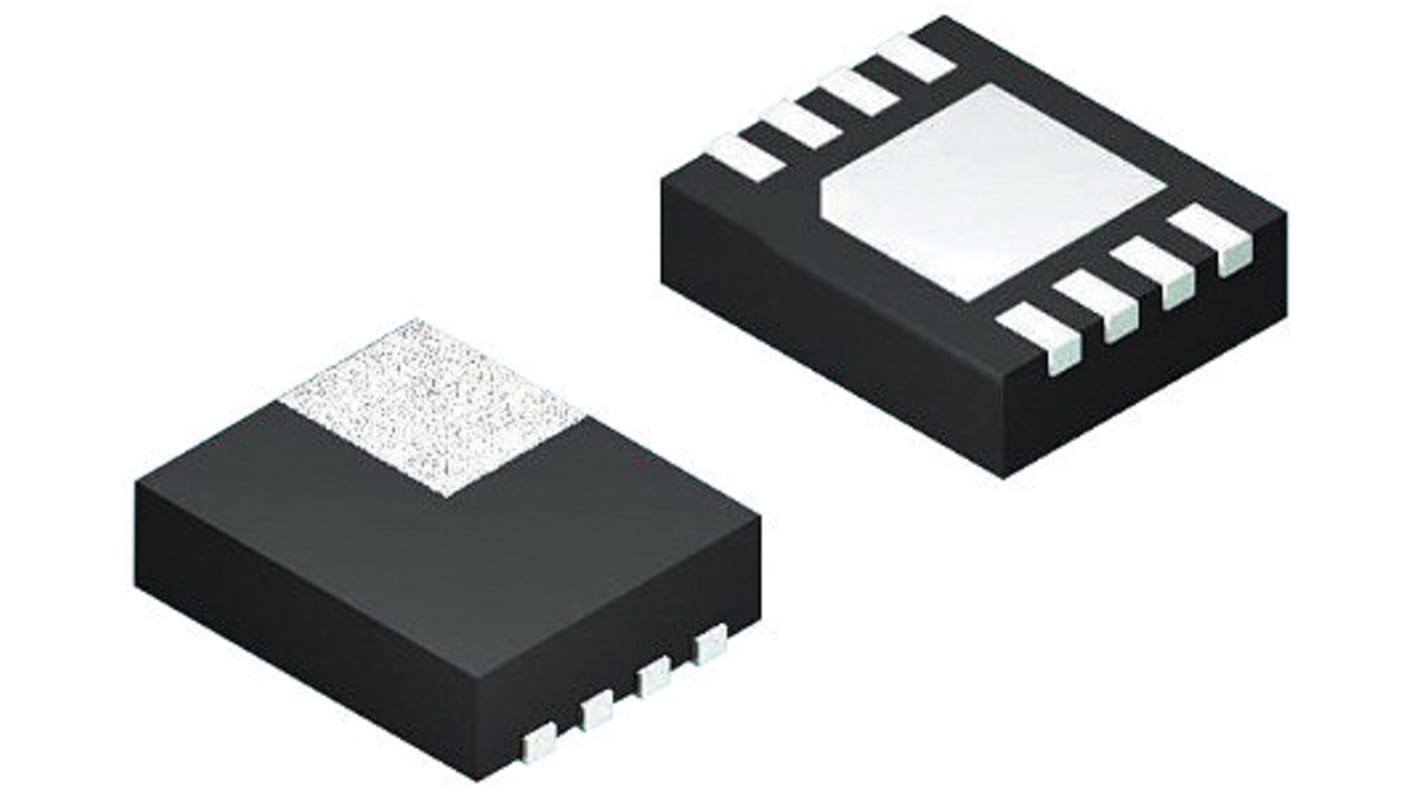

Texas Instruments Low Side, Load Switch Power Switch IC 8-Pin, WSON
- RS Stock No.:
- 145-6644
- Mfr. Part No.:
- TPS22965DSGT
- Brand:
- Texas Instruments
Subtotal (1 reel of 250 units)*
£122.50
(exc. VAT)
£147.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 5,750 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 250 + | £0.49 | £122.50 |
*price indicative
- RS Stock No.:
- 145-6644
- Mfr. Part No.:
- TPS22965DSGT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Power Switch Topology | Low Side | |
| Product Type | Power Switch IC | |
| Power Switch Type | Load Switch | |
| Switch On Resistance RdsOn | 25mΩ | |
| Mount Type | Surface | |
| Package Type | WSON | |
| Minimum Supply Voltage | 0.8V | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Operating Current | 6A | |
| Standards/Approvals | RoHS | |
| Height | 0.75mm | |
| Length | 2.1mm | |
| Series | TPS22965 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Power Switch Topology Low Side | ||
Product Type Power Switch IC | ||
Power Switch Type Load Switch | ||
Switch On Resistance RdsOn 25mΩ | ||
Mount Type Surface | ||
Package Type WSON | ||
Minimum Supply Voltage 0.8V | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Operating Current 6A | ||
Standards/Approvals RoHS | ||
Height 0.75mm | ||
Length 2.1mm | ||
Series TPS22965 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
Integrated Load Switch, Texas Instruments
Integrated load switches from the TPS229xx family are integrated electronic relays used to turn-on and turn-off power rails.
Load Switch ICs, Texas Instruments
