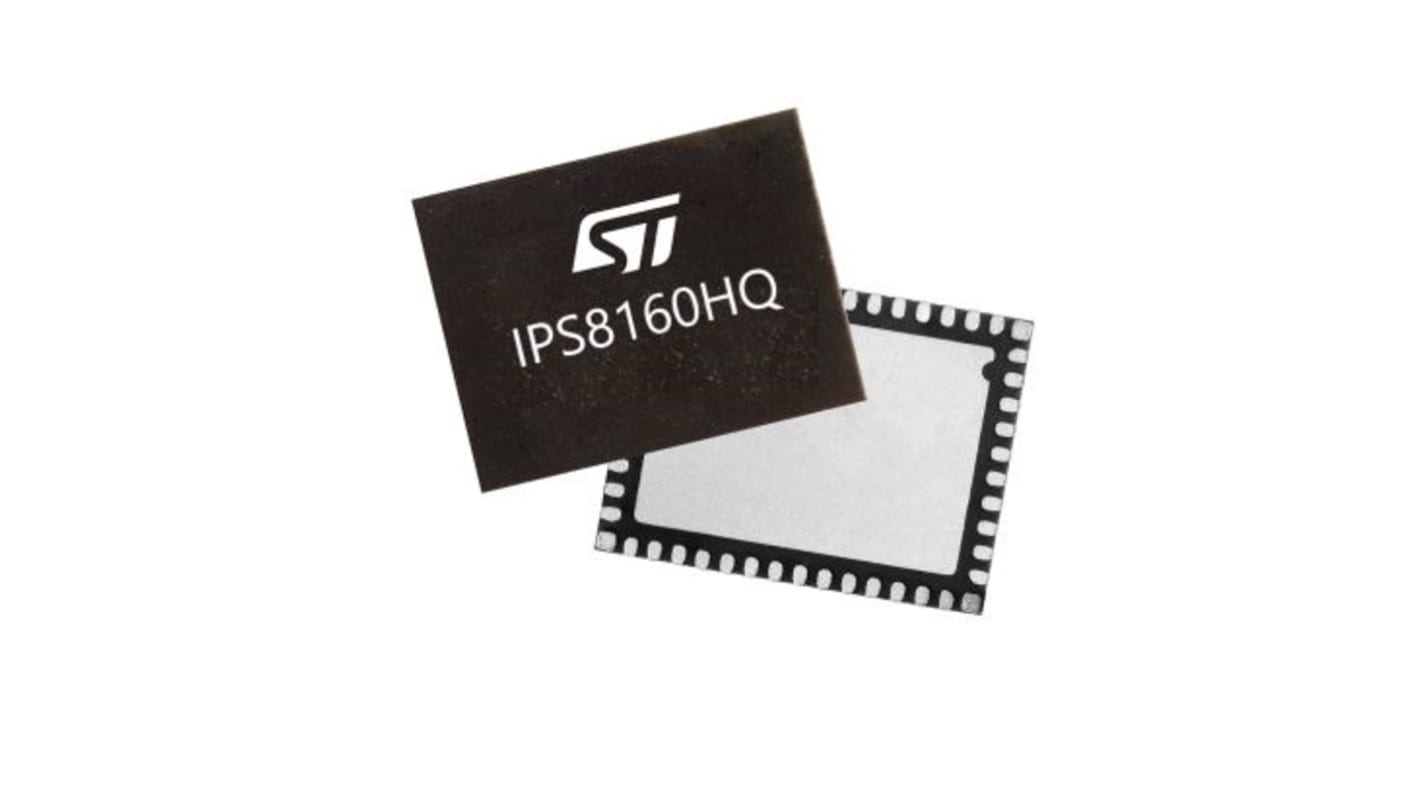

STMicroelectronics IPS8160HQ 8High Side, High Side Driver Power Switch IC 48-Pin, QFN48L 8x6 mm
- RS Stock No.:
- 261-5572
- Mfr. Part No.:
- IPS8160HQ
- Brand:
- STMicroelectronics
Available to back order for despatch 29/04/2025
Added
Price Each (On a Reel of 2500)
£6.429
(exc. VAT)
£7.715
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 - 2500 | £6.429 | £16,072.50 |
| 5000 - 5000 | £6.107 | £15,267.50 |
| 7500 + | £5.802 | £14,505.00 |
| *price indicative | ||
- RS Stock No.:
- 261-5572
- Mfr. Part No.:
- IPS8160HQ
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
The STMicroelectronics Octal channel high side driver is monolithic device designed with STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. They can be driven by using a 3.3 V logic supply.
CMOS compatible input
Very low standby current
Under voltage shutdown
Junction over temperature protection
Very low standby current
Under voltage shutdown
Junction over temperature protection
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | High Side Driver |
| Power Switch Topology | High Side |
| Switch On Resistance | 160mΩ |
| Number of Channels | 8 |
| Maximum Operating Supply Voltage | 45 V |
| Maximum Operating Current | 1.7A |
| Number of Outputs | 8 |
| Package Type | QFN48L 8x6 mm |
| Pin Count | 48 |
