Infineon BTT60301ERAXUMA1, 1High Side, High Side Power Control Switch
- RS Stock No.:
- 258-0775
- Mfr. Part No.:
- BTT60301ERAXUMA1
- Brand:
- Infineon
Subtotal (1 pack of 2 units)*
£3.58
(exc. VAT)
£4.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,514 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 + | £1.79 | £3.58 |
*price indicative
- RS Stock No.:
- 258-0775
- Mfr. Part No.:
- BTT60301ERAXUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Power Switch Topology | High Side | |
Power Switch Type | High Side | |
Number of Channels | 1 | |
Maximum Operating Supply Voltage | 36 V | |
Number of Outputs | 1 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Number of Channels 1 | ||
Maximum Operating Supply Voltage 36 V | ||
Number of Outputs 1 | ||

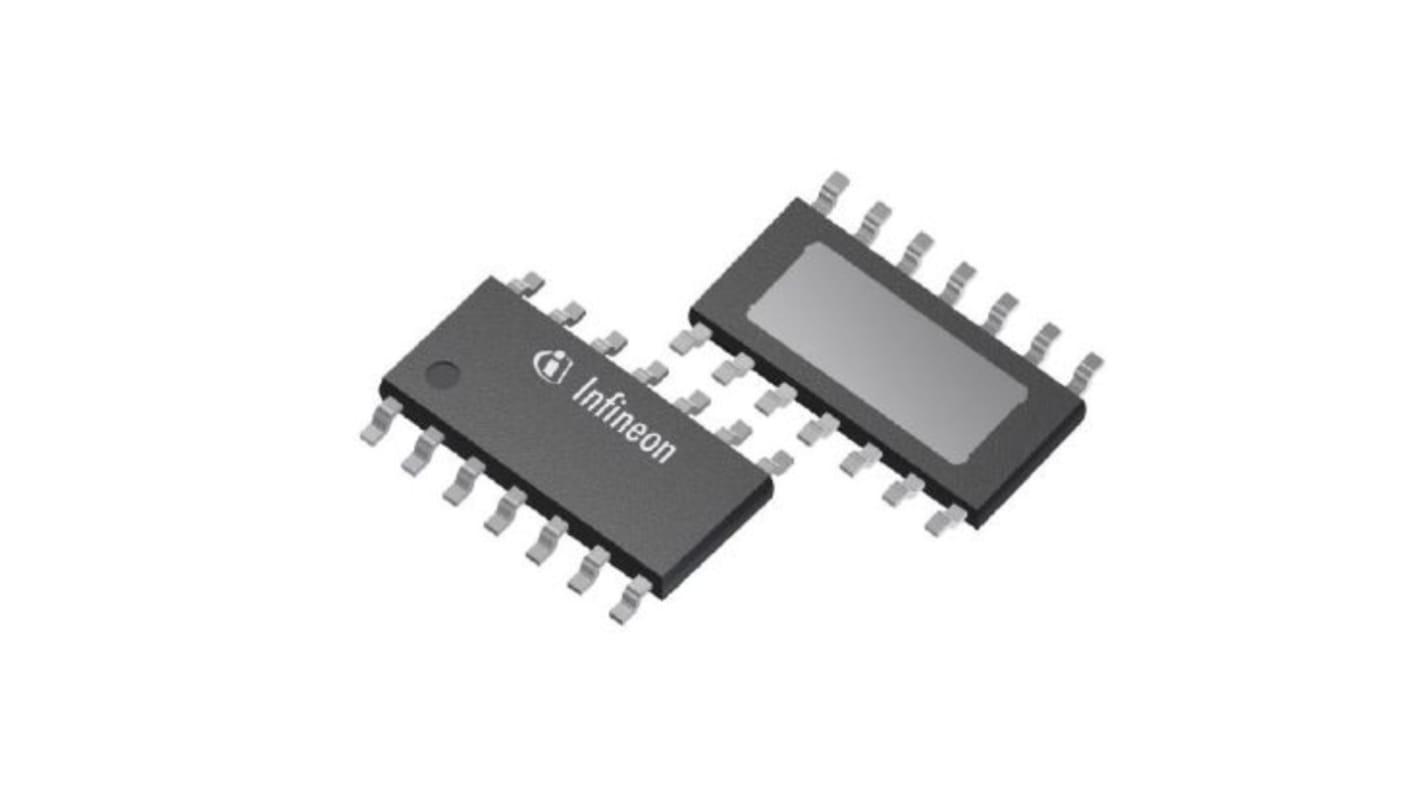

The Infineon single channel smart high-side power switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to 3 x P21 W 24 V or 1 x 70 W 24 V, as well as LEDs in the harsh automotive environment.
One channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground independent from load ground
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground independent from load ground
