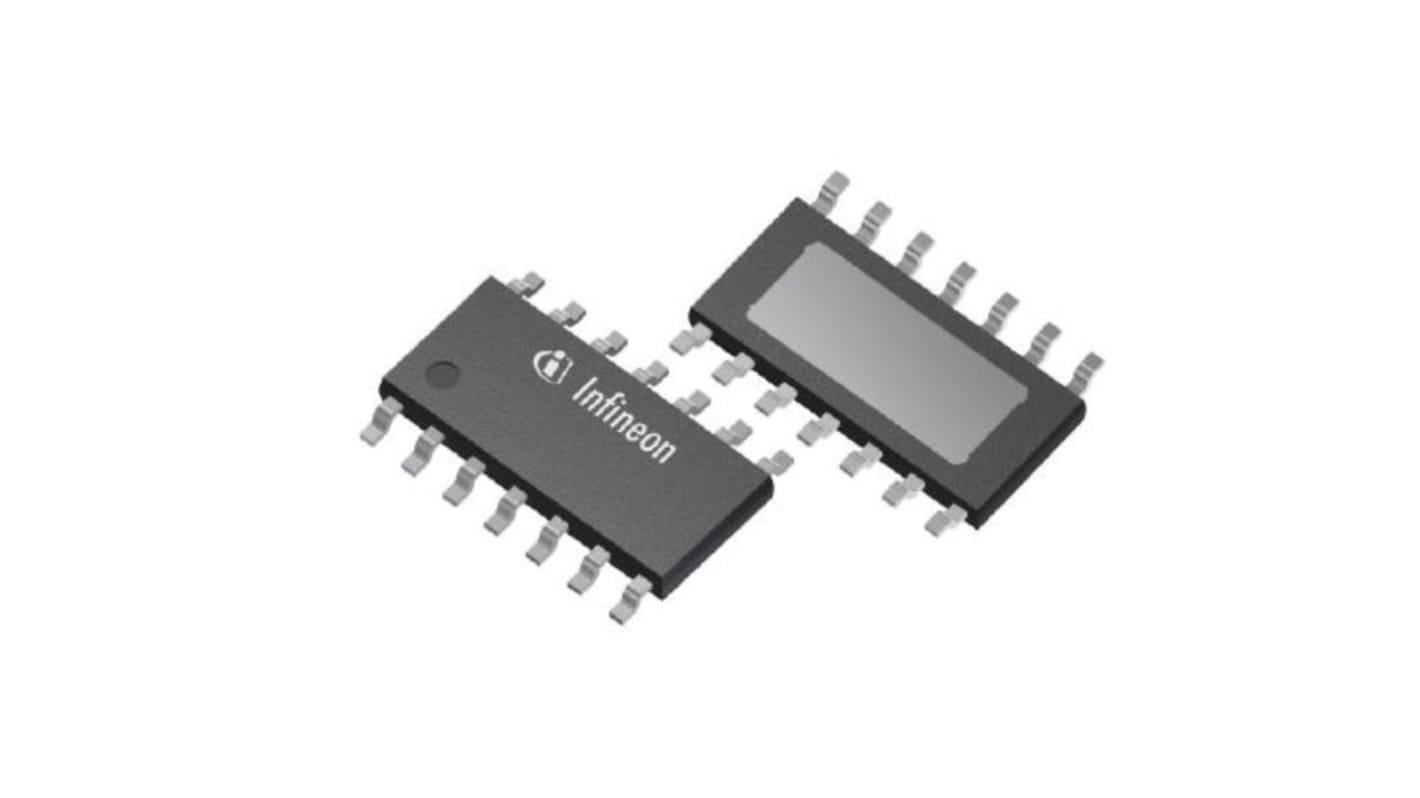

Infineon BTT60502ERAXUMA1 High Side, High Side Power Control Switch

RS Stock No.:: 258-0779
Mfr. Part No.:: BTT60502ERAXUMA1
Brand:: Infineon

Infineon BTT60502ERAXUMA1 High Side, High Side Power Control Switch

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£2.83

(exc. VAT)

£3.40

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

322 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£2.83
10 - 24	£2.43
25 - 49	£2.26
50 - 99	£2.11
100 +	£1.96

*price indicative

RS Stock No.:: 258-0779
Mfr. Part No.:: BTT60502ERAXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	Power Control Switch
	Power Switch Topology	High Side
	Power Switch Type	High Side
	Number of Outputs	2
	Power Rating	2.10W
	Minimum Supply Voltage	3.80V
	Maximum Supply Voltage	48V
	Minimum Operating Temperature	-40°C
	Operating Current	4A
	Maximum Operating Temperature	150°C
	Standards/Approvals	RoHS
	Series	BTT6050-2ERA
	Automotive Standard	AEC-Q

	Select all
	Brand Infineon
	Product Type Power Control Switch
	Power Switch Topology High Side
	Power Switch Type High Side
	Number of Outputs 2
	Power Rating 2.10W
	Minimum Supply Voltage 3.80V
	Maximum Supply Voltage 48V
	Minimum Operating Temperature -40°C
	Operating Current 4A
	Maximum Operating Temperature 150°C
	Standards/Approvals RoHS
	Series BTT6050-2ERA
	Automotive Standard AEC-Q

Datasheet - BTT60502ERAXUMA1

Infineon BTT6050-2ERA Series Power Control Switch, 2.10W Power, 4A Operating Current - BTT60502ERAXUMA1

This power control switch is a dual-output high-side device intended for controlled power distribution in automotive and industrial environments. It operates across a broad supply range and is designed for systems requiring a Compact solution to switch loads from the positive rail. The component meets automotive stress requirements and adheres to restricted-substance standards, making it suitable for integration where regulatory and environmental considerations apply.

Features and Benefits:

• High-side topology providing controlled positive-rail switching
• 4A operating current enabling moderate load handling
• 48V maximum supply voltage supporting higher-voltage systems
• 3.8V minimum supply voltage permitting low-voltage operation
• 150°C maximum operating temperature tolerating elevated thermal conditions

Applications

• Suitable for vehicle power-distribution modules
• Ideal for battery-powered higher-voltage systems
• Used with dual-supply control architectures
• Can be used for resilient industrial control circuits
