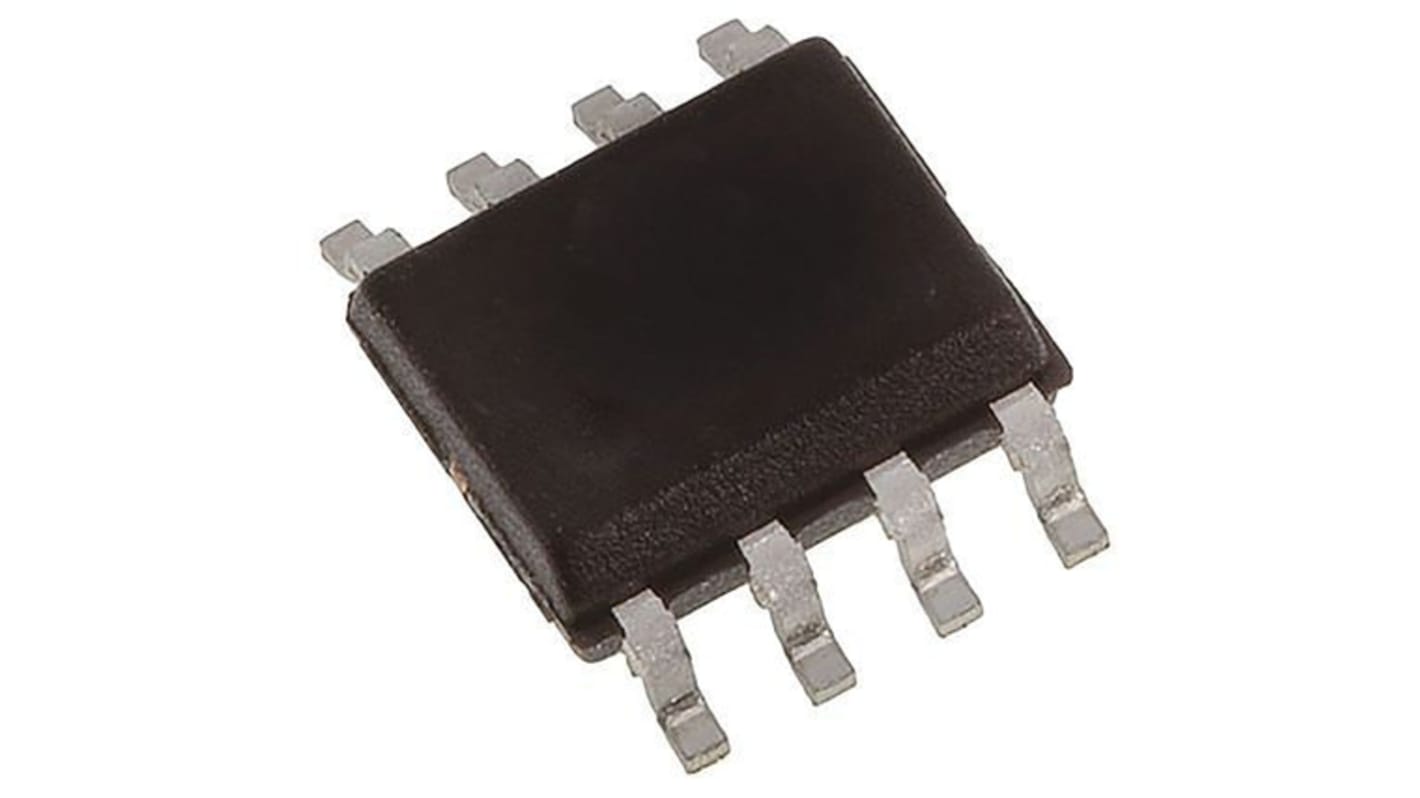

Infineon Low Side 1, Low Side Power Switch IC 8-Pin, PG-TDSO-8

RS Stock No.:: 254-7184
Mfr. Part No.:: BTT3050EJXUMA1
Brand:: Infineon

Infineon Low Side 1, Low Side Power Switch IC 8-Pin, PG-TDSO-8

Subtotal (1 reel of 3000 units)*

£1,905.00

(exc. VAT)

£2,286.00

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 07 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
3000 +	£0.635	£1,905.00

*price indicative

RS Stock No.:: 254-7184
Mfr. Part No.:: BTT3050EJXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Power Switch Topology	Low Side
	Product Type	Power Switch IC
	Power Switch Type	Low Side
	Switch On Resistance RdsOn	50mΩ
	Number of Inputs	1
	Mount Type	Surface
	Package Type	PG-TDSO-8
	Minimum Supply Voltage	3.3V
	Maximum Supply Voltage	63V
	Pin Count	8
	Maximum Operating Temperature	150°C
	Minimum Operating Temperature	-40°C
	Operating Current	4A
	Length	4.9mm
	Width	3.9 mm
	Height	1.15mm
	Standards/Approvals	RoHS
	Automotive Standard	AEC-Q100
	Series	BTT3050EJ

	Select all
	Brand Infineon
	Power Switch Topology Low Side
	Product Type Power Switch IC
	Power Switch Type Low Side
	Switch On Resistance RdsOn 50mΩ
	Number of Inputs 1
	Mount Type Surface
	Package Type PG-TDSO-8
	Minimum Supply Voltage 3.3V
	Maximum Supply Voltage 63V
	Pin Count 8
	Maximum Operating Temperature 150°C
	Minimum Operating Temperature -40°C
	Operating Current 4A
	Length 4.9mm
	Width 3.9 mm
	Height 1.15mm
	Standards/Approvals RoHS
	Automotive Standard AEC-Q100
	Series BTT3050EJ

Datasheet - BTT3050EJXUMA1

The Infineons BTT series of a 50 mΩ single channel with a smart low-side power switch within a package providing embedded protective functions. The power transistor is built by a n-channel vertical power MOSFET. It is monolithically integrated, automotive qualified and optimized for 24 V automotive applications.

Overcurrent, active clamping and overtemperature protection

Overtemperature latch shutdown

Supply pin undervoltage protection

Dedicated status signal
